Passport 12/Passport 8 Operator’s Manual 19-1
19 Review
19.1 Accessing Respective Review Windows
1. Select the [Review] QuickKey, or [Main Menu]→[Review >>].
2. Select [Graphic Trends], [Tabular Trends], [Events], or [Full Disclosure] to access their respective review
windows.
19.2 Reviewing Graphic Trends

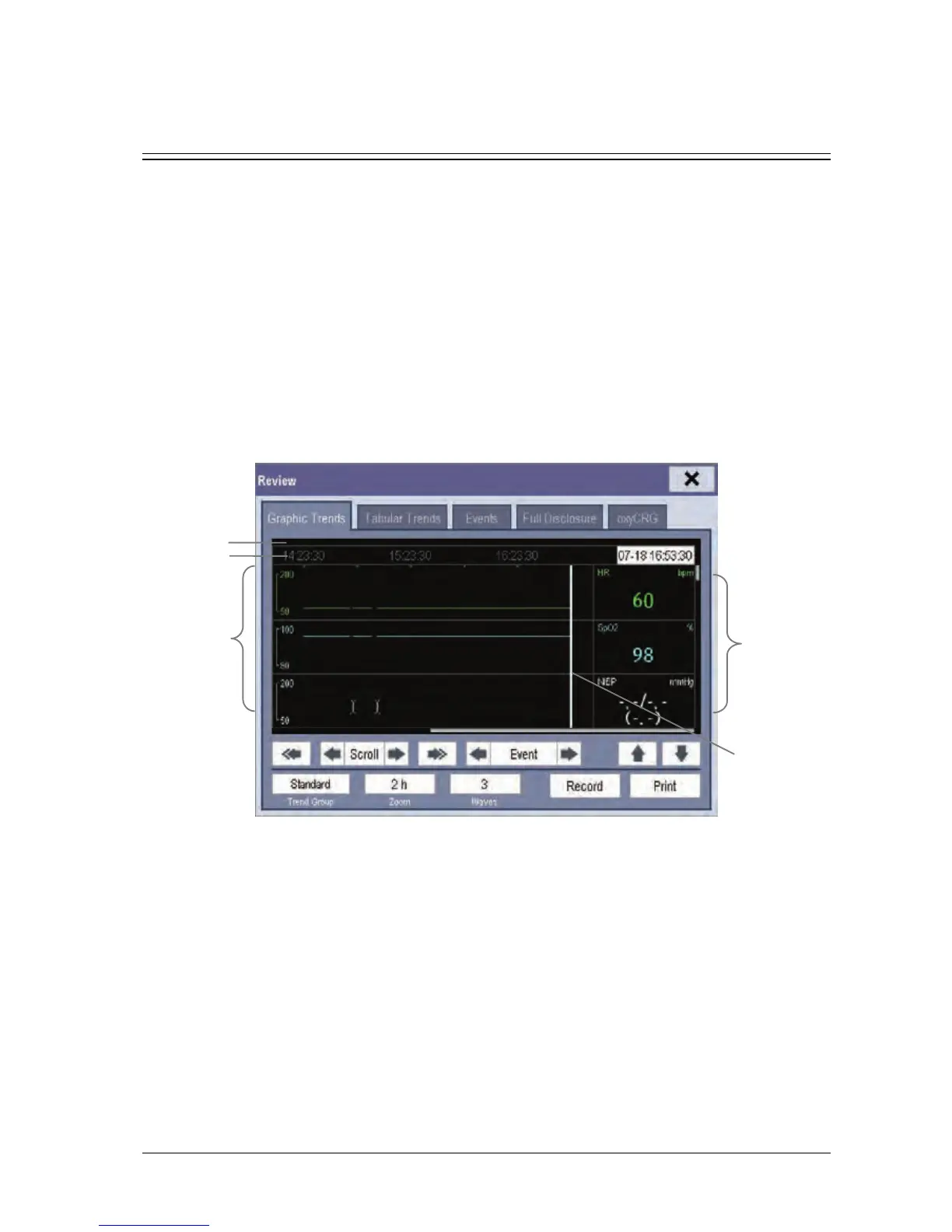

In the [Review] menu, select [Graphic Trends] to access the following window.
1. Event mark area 2. Time axis 3. Graphic trends area
4. Parameter area 5. Cursor
Events are marked with colors in the event mark area. Red represents high level alarm event. Yellow represents
medium/low level alarm event. Green represents manual event.
In this review window:
 Select [Trend Group] and you can select a trend group for viewing in the popup menu. If [Custom 1] or [Custom 2]
is selected, you can further select [Define Trend Group]. Then you can select the parameters for viewing in the
popup menu.
 Select [Zoom] to set the time length of the review window.
 Select [Waves] to set the number of waves displayed in one page.
1
2
3
4
5
