2-8 Passport 12/Passport 8 Operator’s Manual
4. Multifunctional Connector
Connects the monitor to external devices and outputs defibrillator synchronization signals, nurse call signals,
analog output signals, measurement numerics, and alarm limits of parameter modules.
Communicates with external devices via Datascope Improved ASCII Protocol (DIAP) protocol.
5. USB Connectors
Connects a USB disk for data or configuration transfer.
6. Network Connector
A standard RJ45 connector which connects the monitor to CMS or other monitor for remote view. It also connects
the monitor to PC for system upgrade.
7. VGA Connector
Connects a secondary display, which extends the display capability of your monitor. The contents displayed on
the secondary display screen accords with those displayed on the monitor screen.

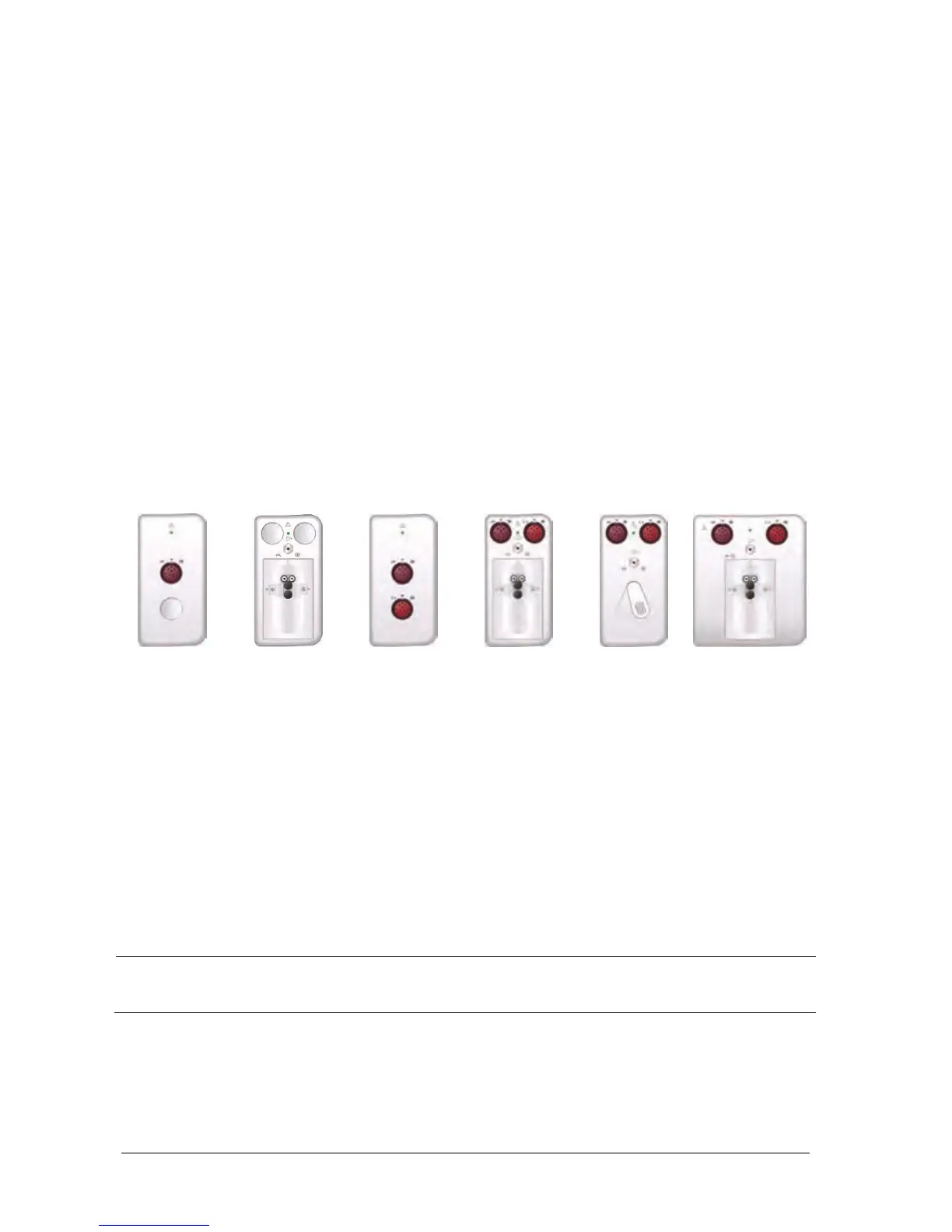

2.4 Modules
1 2 3 4 5 6
1. IBP module: contains IBP cable connector
2. Sidestream CO
2
module: contains CO
2
watertrap connector, and CO
2
gas outlet.
3. IBP+C.O. module: contains IBP cable connector and C.O. cable connector.
4. IBP+C.O. + sidestream CO
2
module: contains IBP cable connector, C.O. cable connector, CO
2
watertrap
connector, and CO
2
gas outlet.
5. IBP+C.O. + microstream CO
2
module: contains IBP cable connector, C.O. cable connector, CO
2
sampling
line connector, and CO
2
gas outlet.
6. IBP+C.O.+AG module (with O
2
): contains IBP cable connector, C.O. cable connector, AG watertrap
slot, and AG gas outlet. This module is for Passport 12 only.
NOTE
The above modules with IBP connectors support two invasive blood pressures through an IBP extended
cable (PN: 040-001029-00).
