Mindray Passport 8 Operator's Manual

2-6 Passport 12/Passport 8 Operator’s Manual

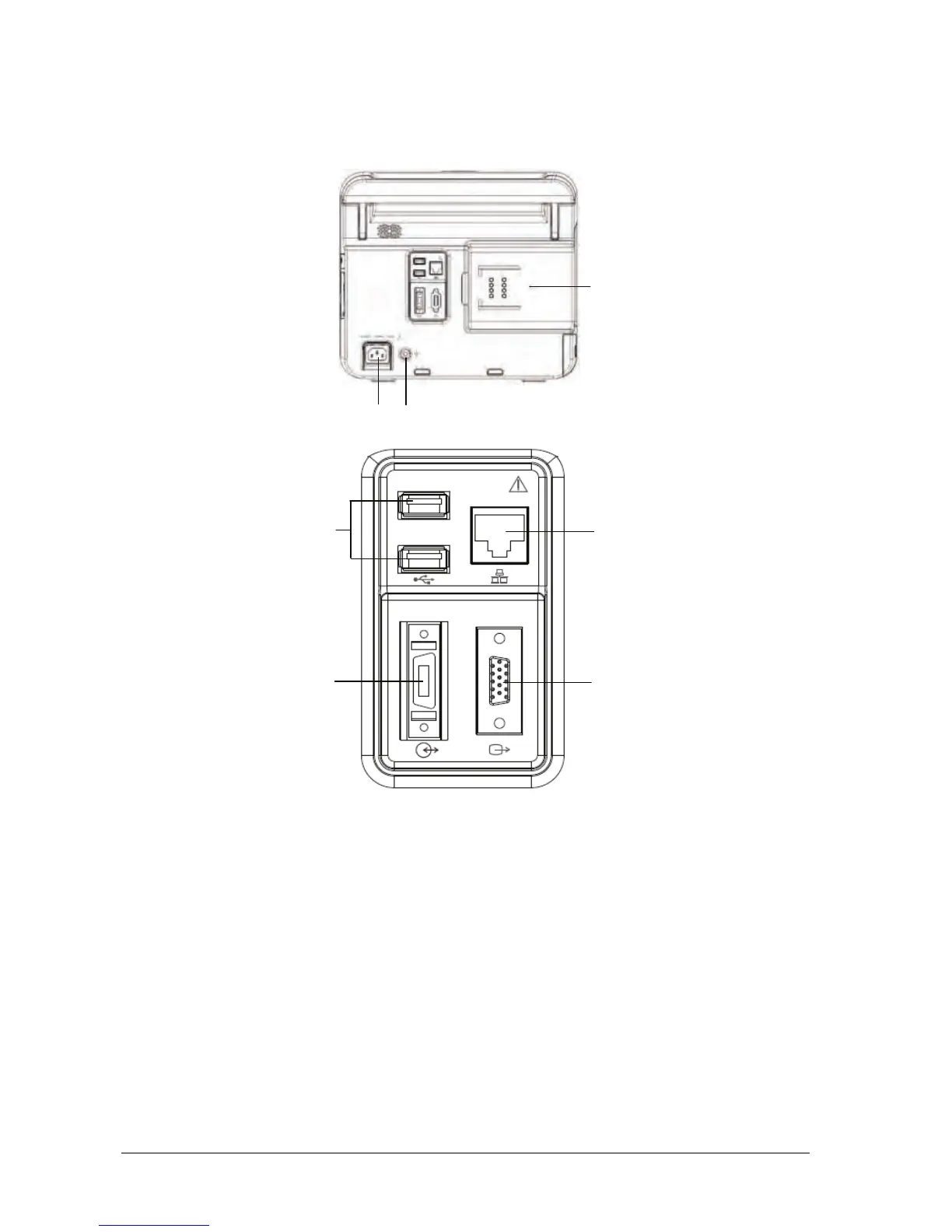

2.3.3 Rear View
Passport 12
1. AC Power Input
2. Equipotential Grounding Terminal
When using the monitor together with other devices, connect their equipotential grounding terminals together
to eliminate the potential differences between them.
3. Parameter Module Slot
Used for connecting the parameter modules.
4. USB Connectors
Connects a USB drive for data or configuration transfer.
5. Multifunctional Connector:
 Connects the monitor to external devices and outputs defibrillator synchronization signals, nurse call signals,
analog output signals, measurement numerics, and alarm limits of parameter modules.
 Communicates with external devices via Datascope Improved ASCII Protocol (DIAP) protocol.
1 2
4
6
5
7
3
