You can set the desired [Gain] for ECG waveform.
You can set the desired [Sweep].
By selecting the [Record] button, you can print the displayed alarm events with the recorder.
Select [Print] to print the displayed alarm event to the pre-connected laser printer.
Select [Events List] to view the events list.
19.5 Reviewing Waveforms
In the [Review] menu, select [Full Disclosure] to access the following window.

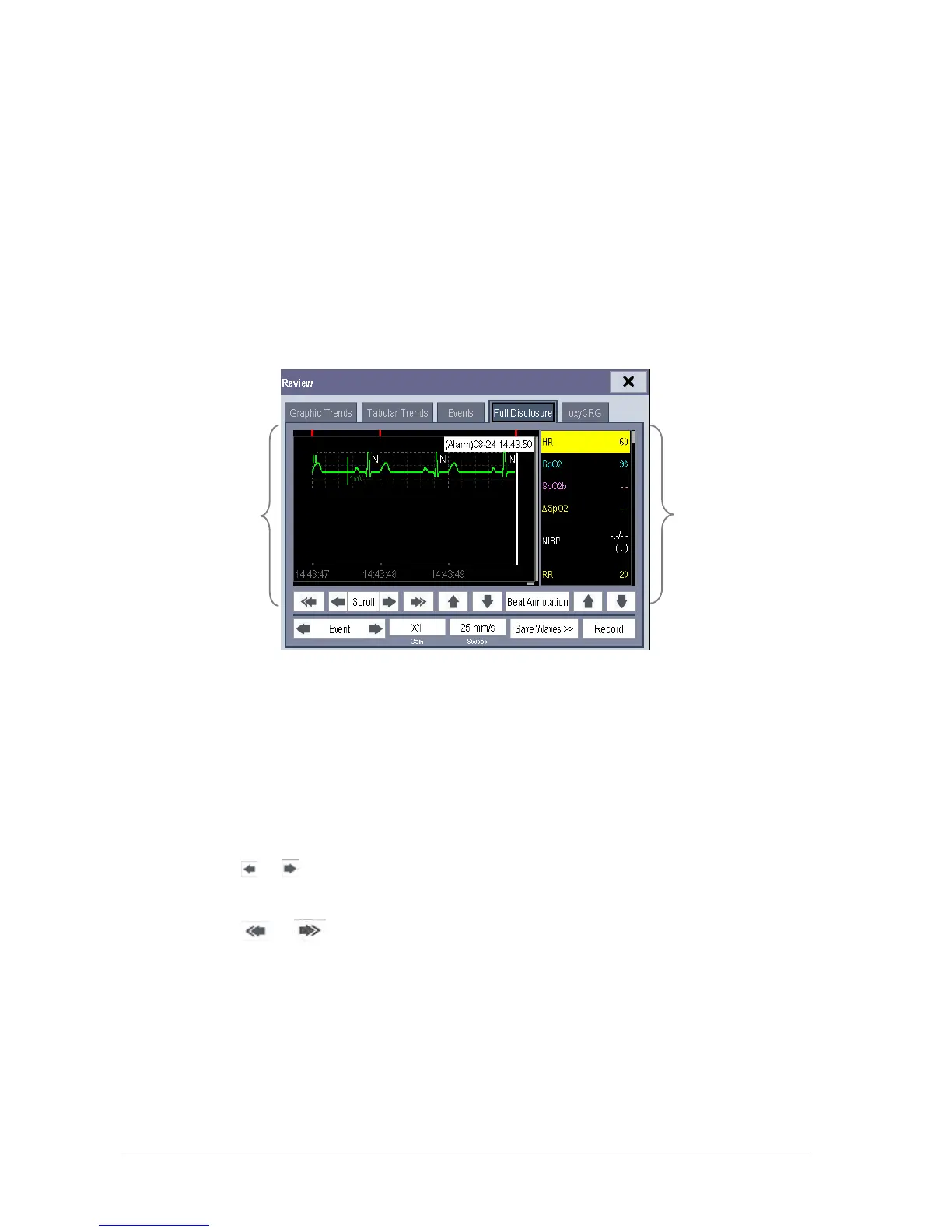

A. Waveform area B. Parameter area
In this review window:
To review full-disclosure waveforms, you need to save waveforms first. Select [Save Waves >>] and then select the
parameters whose waveforms you want to view. To save full-disclosure waveforms, your monitor must have a
storage card.
To view the waveforms, you can either:
Select or beside the [Scroll] button to move the cursor one step left or right to navigate through the
waveforms, or
Select or to move the cursor one page left or right to navigate through the waveforms.
A time indicating your current position is displayed at the top of the waveform area. Numeric measurement values
corresponding to the cursor location are displayed in the parameter area, and change as the cursor is moved.
By selecting the [Beat Annotation] button, you can display or hide beat labels above the first ECG waveform on the
screen. For more information on the beat annotation function, refer to the section 19.4.2 Reviewing Events.
You can change the ECG wave gain by selecting [Gain] and then selecting the appropriate setting.
You can change the waveform sweep speed by selecting [Sweep] and then selecting the appropriate setting.
