8.6.3 Understanding the ST Display
8.6.3.1 ST Numerics

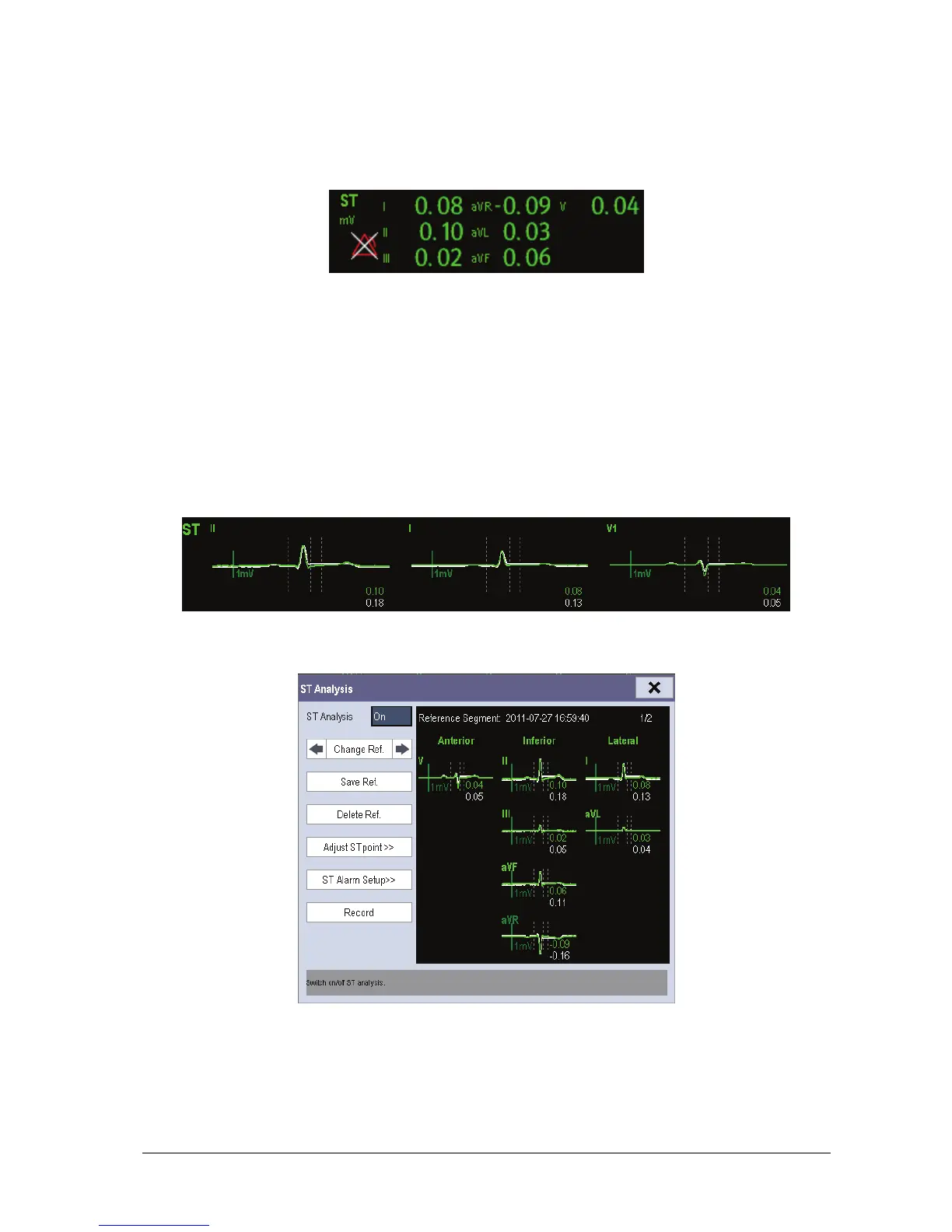

This example shows ST numerics with 5-lead ECG. Your monitor screen may look slightly different from the illustration.
8.6.3.2 ST Segment
ST segment shows a QRS complex segment for each measured ST lead. The current ST segment is drawn in the same
color as the ECG wave, usually green, superimposed over the stored reference segment, drawn in a different color. The
information is updated once every ten seconds.
To display the ST segment on normal screen:
1. Enter the [ST Analysis] menu. Set [ST Analysis] to [On].
2. Enter the [Screen Setup] window from the [Screens] menu. Set [ST Segment] to be displayed.
Select the ST parameter window or ST segment area to enter the [ST Analysis] menu.
