Omron CP1H CPU User Manual

70
Specifications Section 2-2

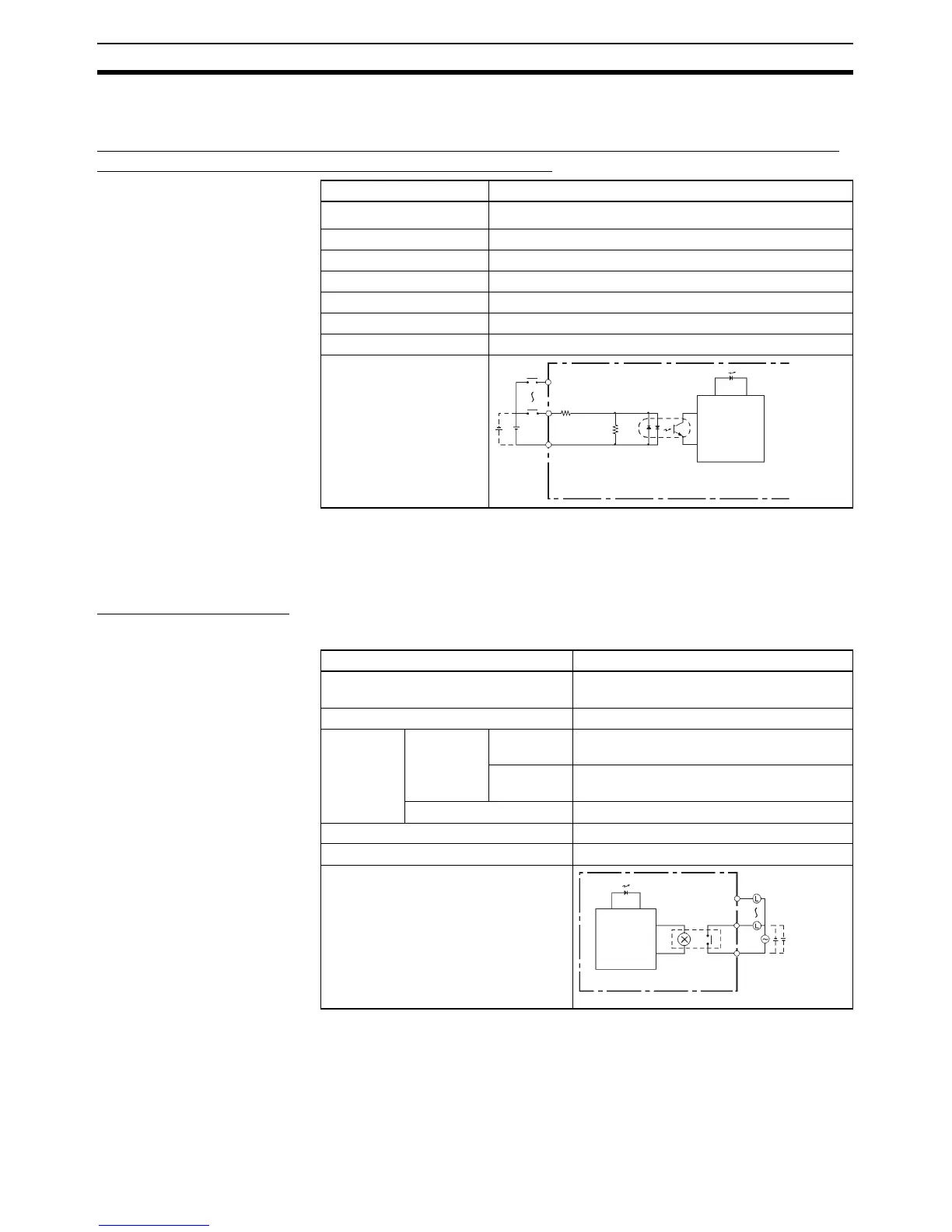

2-2-6 CP-series Expansion I/O Unit I/O Specifications
Input Specifications (CP1W-40EDR/40EDT/40EDT1/20EDR1/20EDT/20EDT1/8ED and
CPM1A-40EDR/40EDT/20EDR1/20EDT/20EDT1/8ED)
Note (1) This setting can be changed to 0, 0.5, 1/2, 4, 8, 16, or 32 ms in the PLC
Setup. For the CPM1A-40EDR/EDT/EDT1, it is fixed at 16 ms.
(2) Do not apply voltage in excess of the rated voltage to the input terminal
Output Specifications
Relay Outputs (CP1W-40EDR/32ER/20EDR1/16ER/8ER and CPM1A-40EDR/20EDR1/16ER/8ER)
Item Specification
Input voltage
24 VDC
+10%
/
−15%
Input impedance 4.7 kΩ
Input current 5 mA typical
ON voltage 14.4 VDC min.
OFF voltage 5.0 VDC max.
ON delay 0 to 32 ms max. Default: 8 ms (See note 1.)
OFF delay 0 to 32 ms max. Default: 8 ms (See note 1.)
Circuit configuration
IN
IN
COM
4.7 kΩ
750 Ω
Input LED
Internal
circuits
Item Specification
Max. switching capacity 2 A, 250 VAC (cosφ = 1),
2 A, 24 VDC (4 A/common)
Min. switching capacity 5 VDC, 10 mA
Service life
of relay
(See note.)
Electrical Resistive
load
150,000 operations (24 VDC)
Inductive
load
100,000 operations (240 VAC, cosφ = 0.4)
Mechanical 20,000,000 operations
ON delay 15 ms max.
OFF delay 15 ms max.
Circuit configuration
COM
OUT
OUT
Output LED
Internal
circuits
Maximum
250 VAC: 2 A
24 VDC: 2 A
