Omron CP1H CPU User Manual

17

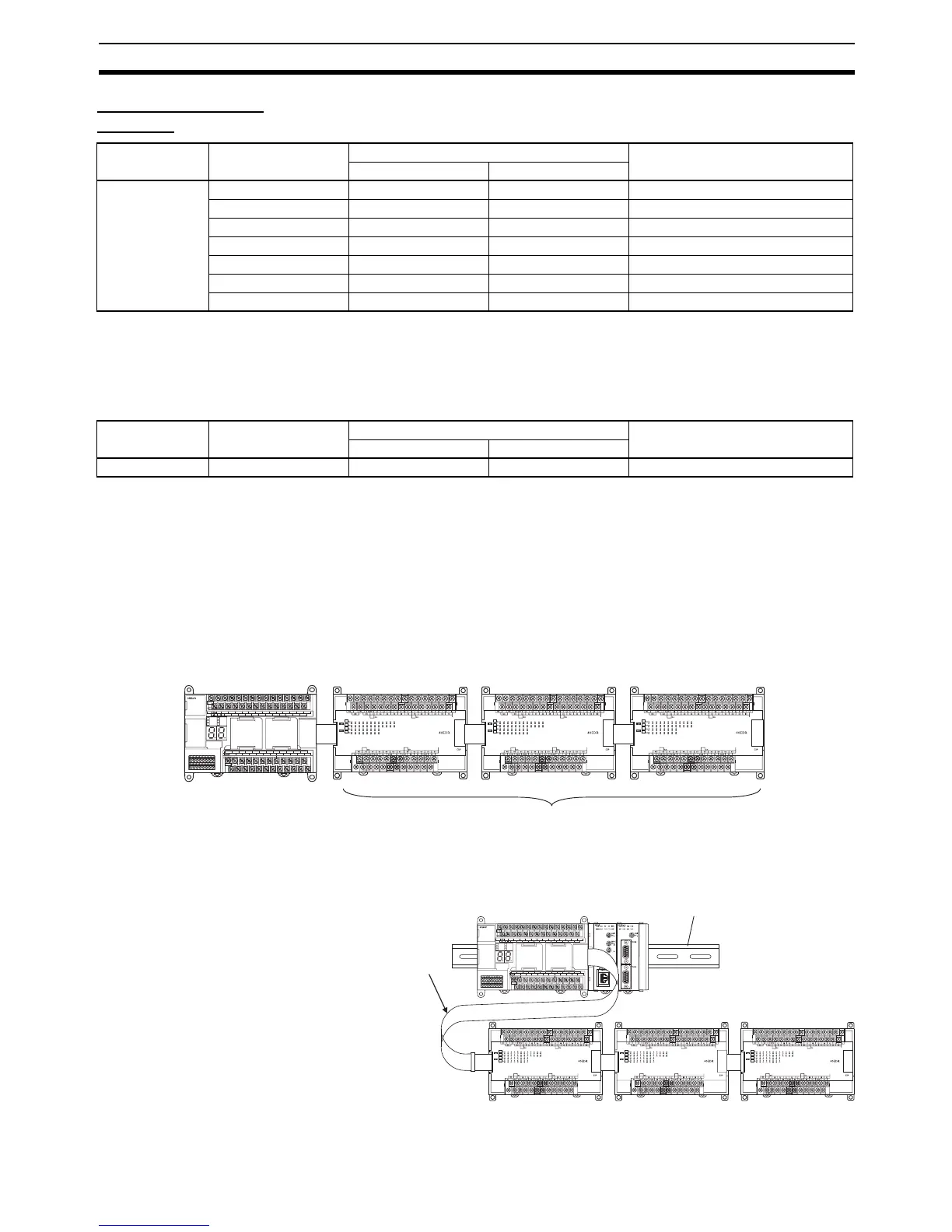

System Configuration Section 1-2
Unit Consumption
Currents
Note (1) The current consumption of the following is included with the current con-
sumption of the CPU Unit: CP1W-ME05M Memory Cassette, CP1W-CIF-
1 or CP1W-CIF11 Option Board, and CP1W-EXT01 CJ Unit Adapter.
(2) The current consumption of the following is not included with the current
consumption of the CPU Unit: CP1W-CIF12.
(3) CPU Units taking a DC power supply do not provide an external power
supply.
1-2-2 System Expansion
A maximum of seven CP-series Expansion Units or Expansion I/O Units can
be connected to a CP1H CPU Unit.
This allows for the expansion of various functions such as I/O points or tem-
perature sensor inputs.
When CP1W-CN811 I/O Connecting Cable is used, the cable length can be
extended by up to 80 cm, enabling installing the Units in two rows.
Up to seven Units can be added, and the maximum number of I/O points per
Unit is 40, so the maximum total number of expansion I/O points is 280.
Unit Model Current consumption External power supply
5 V DC 24 V DC
CPU Unit CP1H-XA40DR-A 0.430 A 0.180 A 0.3 A max.
CP1H-XA40DT-D 0.510 A 0.120 A ---
CP1H-XA40DT1-D 0.510 A 0.150 A ---
CP1H-X40DR-A 0.420 A 0.070 A 0.3 A max.
CP1H-X40DT-D 0.500 A 0.010 A ---
CP1H-X40DT1-D 0.500 A 0.020 A ---
CP1H-Y20DT-D 0.55 A --- ---
Unit Model Current consumption External power supply
5 V DC 24 V DC
Interface Unit CP1W-CIF12 0.075 A --- ---
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1H CPU Unit
A maximum of 7 CP-series Expansion I/O
Units or Expansion Units can be added.
SYSMAC
CP1H
BATTERY
MEMORY
PERIPHERAL
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/NCOM010305070911010305070911
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
CP1H CPU Unit
DIN Track
CP1W-CN811
I/O Connecting Cable
