116
Wiring CP1H CPU Units Section 3-4

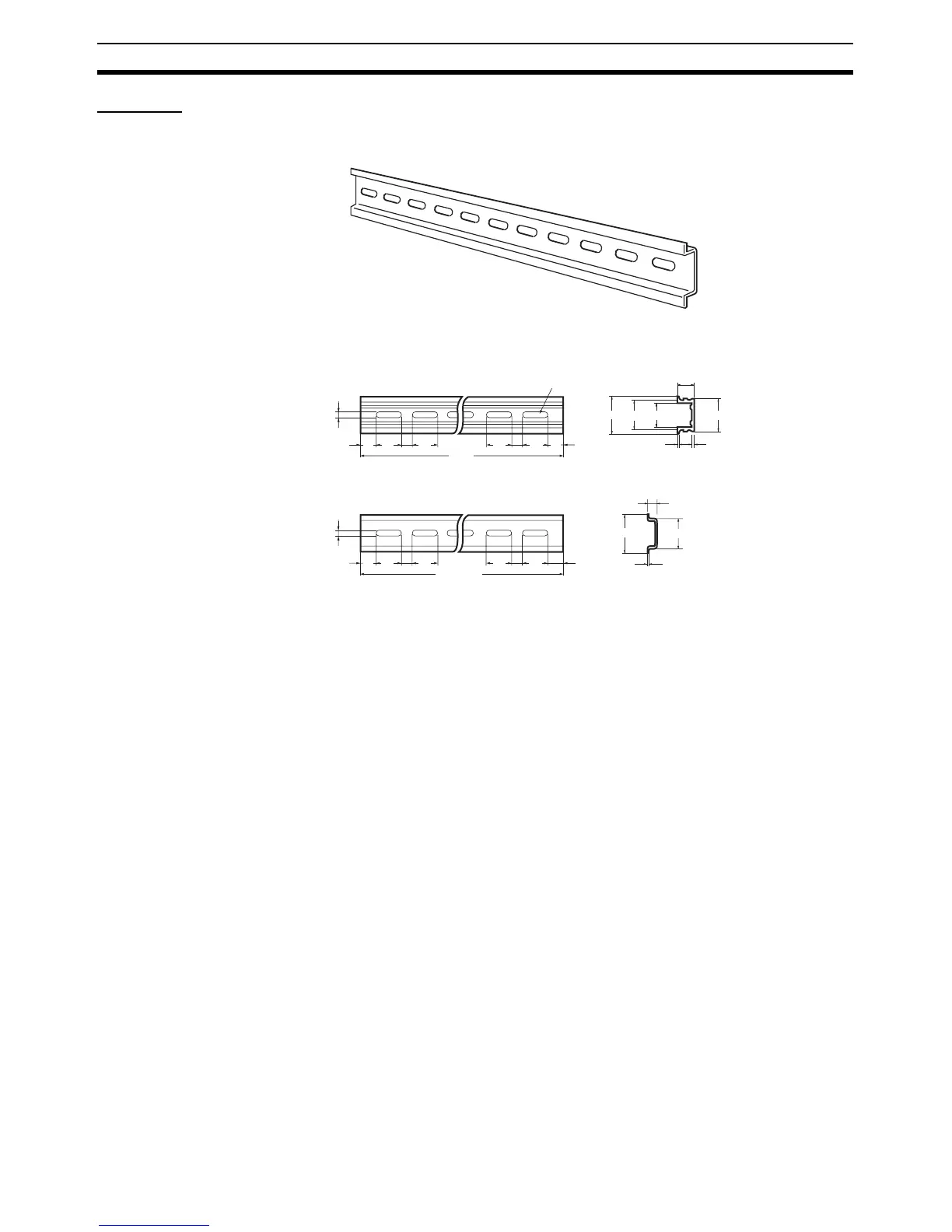

DIN Track Mount the DIN Track in the control panel with screws in at least three places.
• DIN Track: PFP-50N (50 cm), PFP-100N (100 cm), or PFP-100N2
(100 cm)
Secure the DIN Track to the control panel using M4 screws separated by
210 mm (6 holes). The tightening torque is 1.2 N·m.
3-4 Wiring CP1H CPU Units
Note (1) Do not remove the protective label from the top of the Unit until wiring has
been completed. This label prevents wire strands and other foreign mat-
ter from entering the Unit during wiring procedures.
(2) Remove the label after the completion of wiring to ensure proper heat dis-
sipation.
15
10
4.5
25
25
25
10
25
15
1000
1000 (500)
(See note.)
PFP-100N2
PFP-100N/50N
15
10
4.5
25 25
25
10
25 15 (5)
(See note.)
1
16
1.51
29.2
24
27
30 ±0.3
7.3 ±0.15
35 ±0.3 27 ±0.15
28.25 × 4.5 oblong holes
Note: PFP-50N dimensions are given in parentheses.
To Next Page
