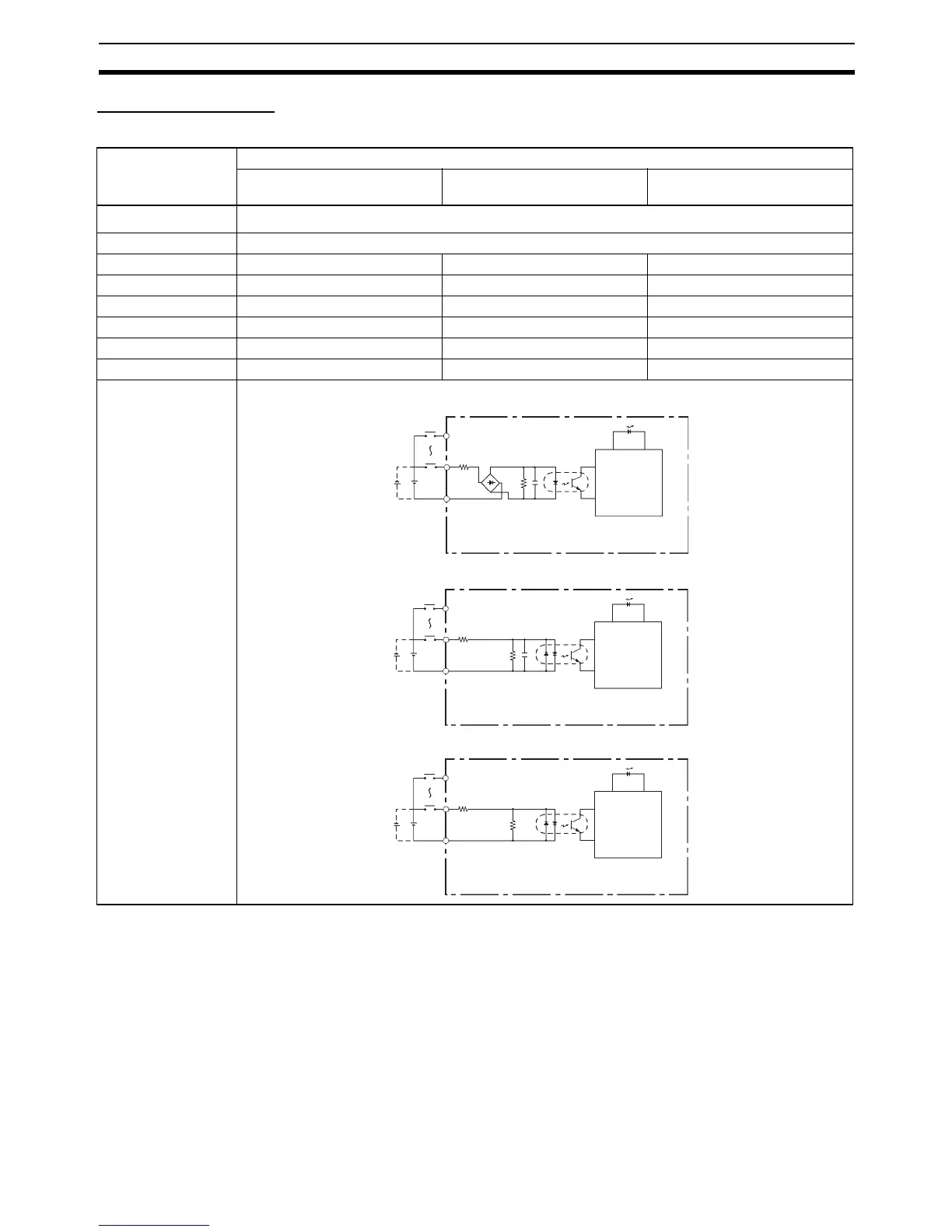

Omron CP1H CPU User Manual

55
Specifications Section 2-2
Input Specifications
Normal Inputs
Inputs CIO 0.00 to CIO 0.11 and CIO 1.00 to CIO 1.11 can be used not only
as normal inputs but also as high-speed counter, interrupt, or quick-response
inputs.
Item Specification
CIO 0.04 to CIO 0.11 CIO 0.00 to CIO 0.03 and
CIO 1.00 to CIO 1.03
CIO 1.04 to CIO 1.11
Input voltage
24 VDC
+10%
/
−15%
Applicable inputs 2-wire and 3-wire sensors
Input impedance 3.0 kΩ 3.0 kΩ 4.7 kΩ
Input current 7.5 mA typical 7.5 mA typical 5 mA typical
ON voltage 17.0 VDC min. 17.0 VDC min. 14.4 VDC min.
OFF voltage/current 1 mA max. at 5.0 VDC max. 1 mA max. at 5.0 VDC max. 1 mA max. at 5.0 VDC max.
ON delay 2.5 µs max. 50 µs max. 1 ms max.
OFF delay 2.5 µs max. 50 µs max. 1 ms max.
Circuit configuration
IN
IN
COM
3.0 kΩ
4.3 kΩ
1000 pF
3.0 kΩ
1000 pF
IN
IN
COM
910 Ω
IN
IN
COM
4.7 kΩ
750 Ω
Input bits: CIO 0.04 to CIO 0.11
Input bits: CIO 0.00 to CIO 0.03, CIO 1.00 to CIO 1.03
Input bits: CIO 1.04 to CIO 1.11
Input LED
Input LED
Input LED
Internal
circuits
Internal
circuits
Internal
circuits
