CP1H CPU Unit Operation Section 2-3
2-3-2 Flash Memory Data Transfers
Built-in Flash Memory
Writing to Flash Memory
Data Transfer method
User program and
parameter data
This data is automatically transferred from RAM to flash mem-
ory when a project is transferred from the CX-Programmer,
when the data is written to RAM from a PT or other external
device, or when the data is transferred from a Memory Cas-
sette.
DM Area data This data is transferred to flash memory only when the trans-
fer is specified from the CX-Programmer.
Comment memory
data
This data is written to flash memory when a project is trans-
ferred from the CX-Programmer and transferring comment
memory is specified.
Function block
source data
This data is written to flash memory when a project containing
one or more function blocks is transferred from the CX-Pro-
grammer.
RAM
Write operation from CX-Programmer
or automatic transfer from Memory
Cassette at startup.
Write
Write
User program
area
Parameter area
I/O memory area
DM Area
Battery
Backup
Write (comment memory specified)
Write
Automatic write
Automatic write
Write
Built-in flash memory
User program
area
Parameter area
DM Area initial
values
Comment memory
area
FB source memory
area
CPU Unit
FB = Function block

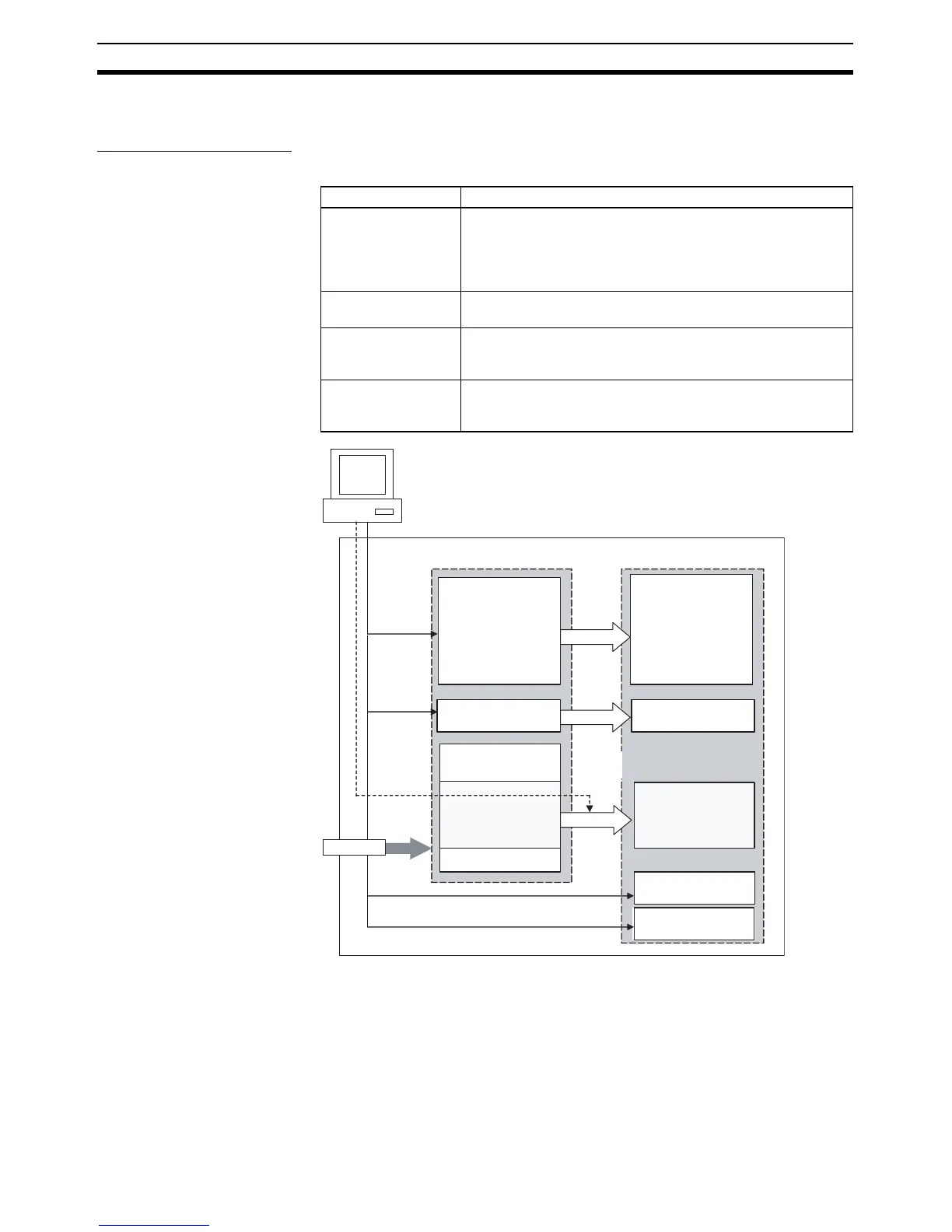

Write operation
to flash memory
