LCD Option Board Function Section 8-6
8-6-11 Data Backup

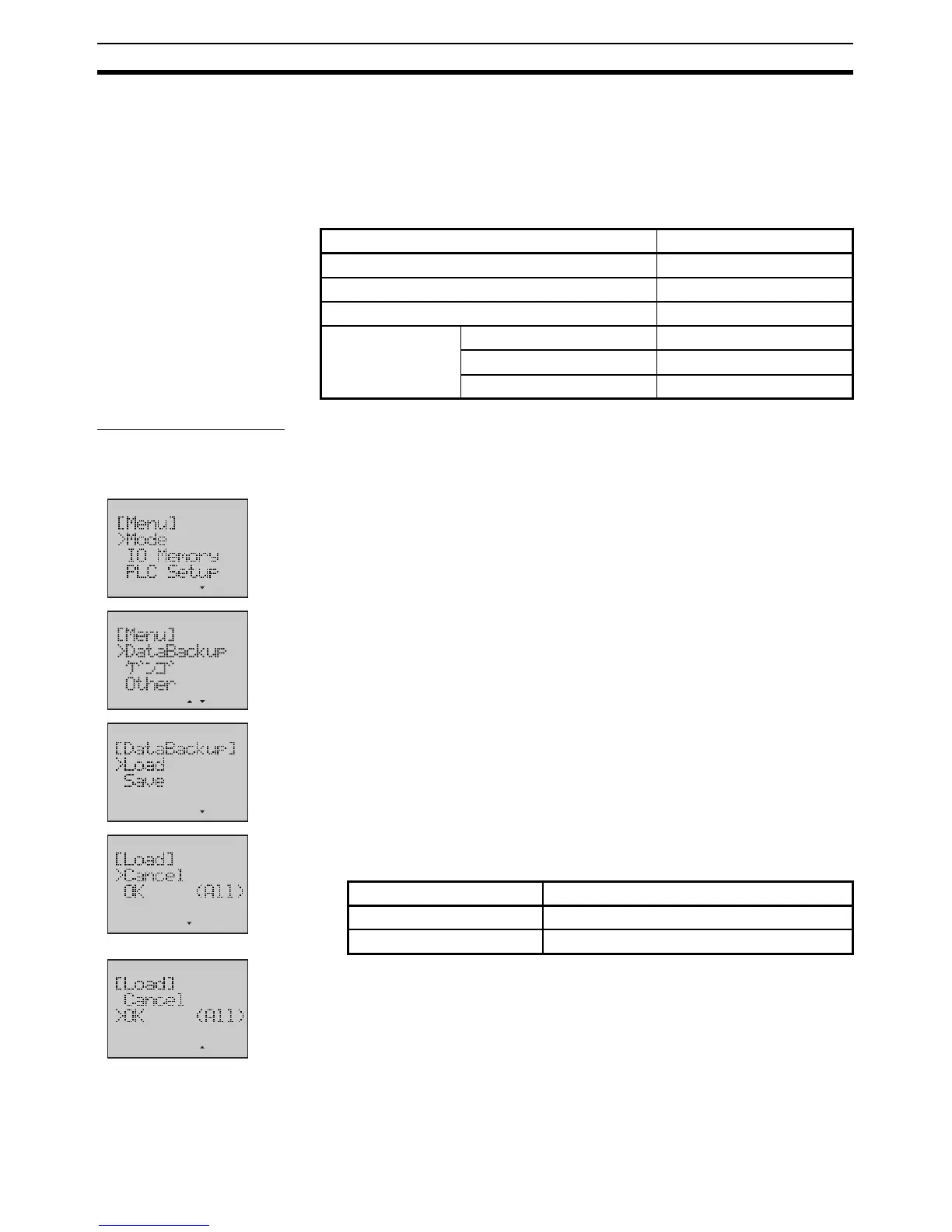

User can save the user settings to DM memory area from one LCD Option
Board and load to other LCD Option Boards from the DM memory area.
Note Please do not take the DM area (D8000 to D8999) for other use.
User settings which can be backed up as shown below.
Loading User Setting
Example Load user settings from DM memory area.
1,2,3...
1. Switch to the Setup Mode.
2. Press the Down button to select DataBackup.
3. Press the OK button to enter the Data Backup menu.
4. Press the OK button to enter the Load Operation Screen.
Select the operation mode in the following table.
5. Press the Down button to select OK.
Note Selecting Cancel will result in a return to the previous menu.
User setting Quantity
User Monitor screen 16 screens
Message screen 16 screens
Timer Switch 16 × 3 timers
Other
Language 1
Backlight 1
Contrast 1
Operation Mode Meaning
Load Load user setting from DM area
Save Save user setting into DM area
