25
Connecting Programming Devices Section 1-3
1-3 Connecting Programming Devices
“Programming Device” is a general term for a computer running programming
and debugging software used with OMRON Programmable Controllers.
The CX-Programmer (Ver. 6.1 and later), which runs on Windows, can be
used with CP-series Programmable Controllers. (See note.)
Note A Programming Console cannot be used with CP-series Program-
mable Controllers.
Devices can be connected to the USB port or to a serial port.
1-3-1 Connecting to a USB Port
Connect the computer running the CX-One Support Software (e.g., the CX-
Programmer) using commercially available USB cable to a standard periph-
eral USB port.
The peripheral USB port (conforming to USB 1.1, B connector) is a dedicated
port for connecting Support Software, such as the CX-Programmer.

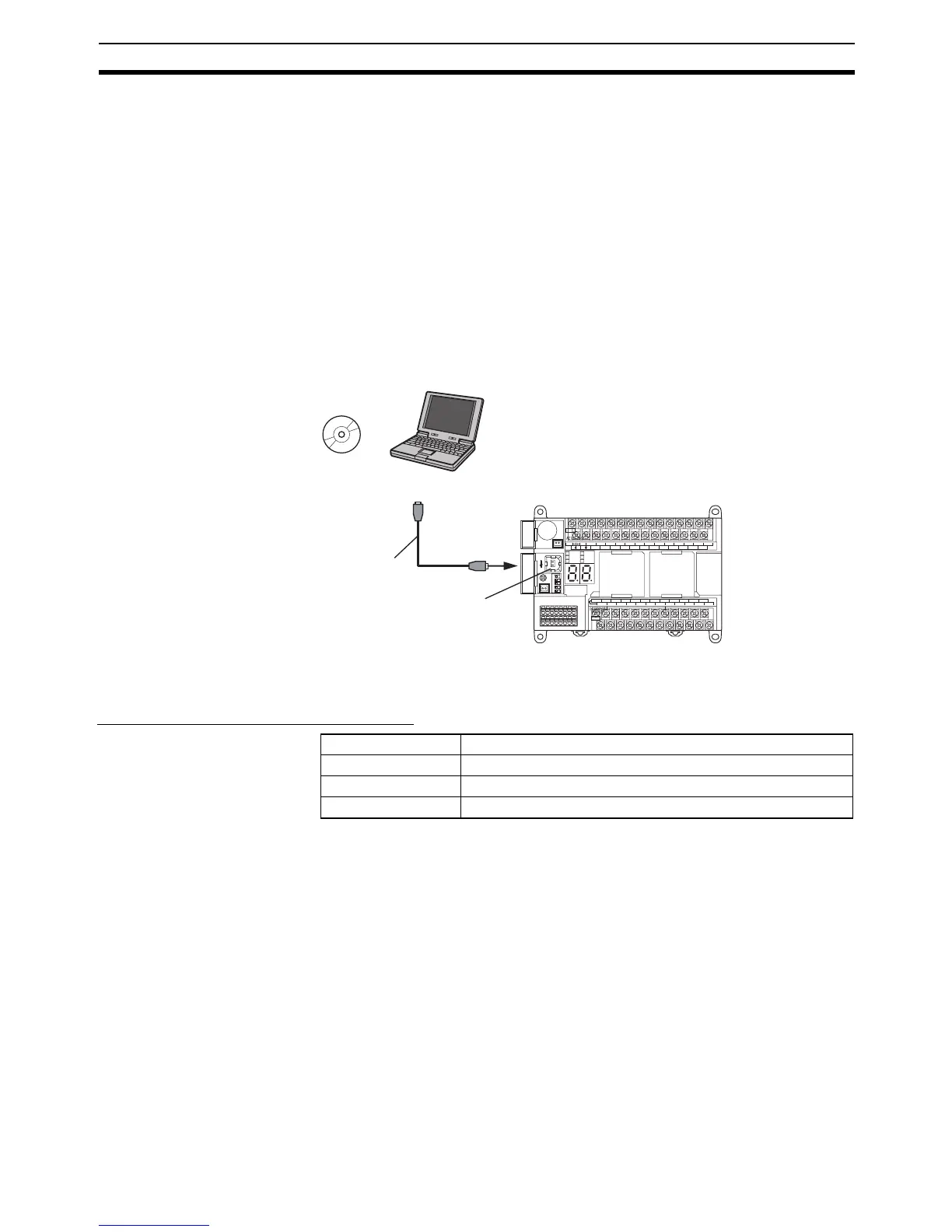

Items Required for USB Connection
POWER
ERR/ALM
BKUP
100CH 101CH
1CH
EXP
L1 L2/N COM 01 03 05 07 09 11 01 03 05 07 09 11
00 02 04 06 08 10 00 02 04 06 08
10
00 01 02 03 04 06 00 01 03 04 06
COM COM COM COM 05 07 COM 02 COM 05
07
IN
OUT
Personal computer
CX-One (CX-Programmer, etc.)
USB port
USB cable
Peripheral
USB port
Operating system Windows 98, Me, 2000, or XP
Support Software CX-Programmer Ver. 6.1 (CX-One Ver. 1.1)
USB driver Included with above Support Software.
USB cable USB 1.1(or 2.0) cable (A connector-B connector), 5 m max.
