Omron CP1H CPU User Manual

495
LCD Option Board Function Section 8-6
8-6-9 Message Screen
This function can set or delete Message Screen. It is possible to register up to
16 screens. User can monitor the text message in the Message Screen when
control bit is ON.
Creating New Message Screen
Example When control bit W100.01 is ON, the Message Screen 2 will display the data
on the word adress D09040 to D09075.
1,2,3...

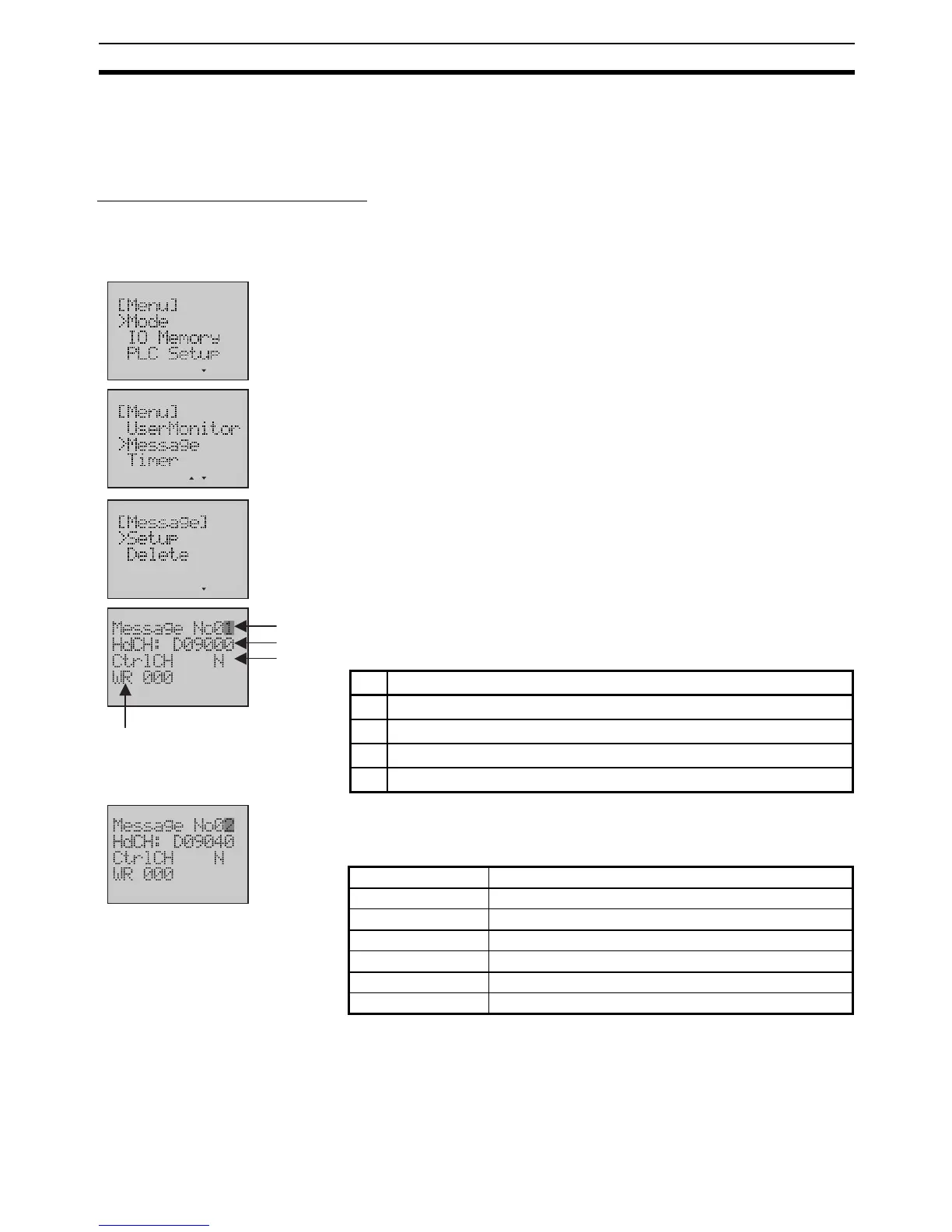

1. Switch to the Setup Mode.
2. Press the Down button to select Message.
3. Press the OK button to enter the Message menu.
4. Press the OK button to enter the Message Setup Screen.
The final digit of the Screen No. will be flashing.
The following table shows the setting items.
5. Use the Up button to change the Screen No. to 2.
The following table shows the relation between the Screen No. and the
control bit when the word address is W000.
a
b
c
d
No. Description
a Message Screen No. (01 to 16)
b Leading word (Only DM) address
c Message flag
d Word (Only WR) address of control bit
Screen No. Control bit
01 W000.00
02 W000.01
03 W000.02
04 W000.03
……
16 W000.15
