Features and Main Functions Section 1-1
1-1-2 Features
This section describes the main features of the CP1H.

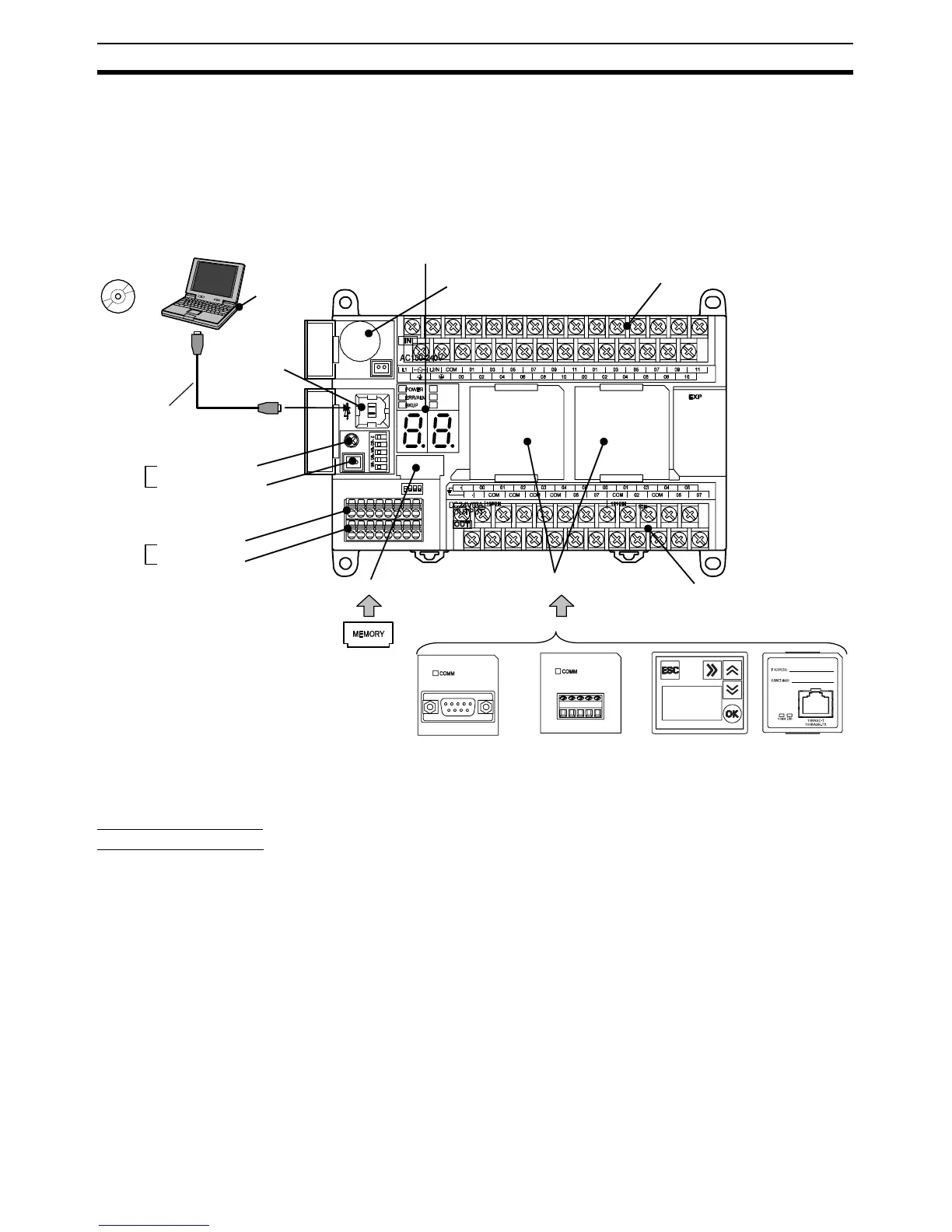

Basic CP1H Configuration
Faster Processing
Speed (All Models)
• Top-class performance has been achieved in a micro PLC, with an
instruction processing speed equivalent to the CJ1M.
• Approximately 500 instructions are processed at high speed.
• Program creation and control are simplified by using function blocks (FB)
and tasks.
CX-One
CP1H CPU Unit (Example: XA)
Two-digit 7-segment LED display
USB port
Battery (CJ1W-BAT01)
Input terminal block
Peripheral
USB port
Analog adjuster
External analog
settings input
Built-in analog
inputs
Built-in analog
outputs
(XA models only)
Memory Cassette
CP1W-ME05M
Memory
Cassette
Two Option Board slots
Option Board
One RS-232C port
CP1W-CIF01
RS-232C Option
Board
One RS-422A/485 port
CP1W-CIF11/CIF12
RS-422A/485 Option
Board
Output terminal block
USB cable
1
2
3
4
ON
CP1W-DAM01
LCD Option Board
CP1W-CIF41
Ethernet Option
Board
