Omron CP1H CPU User Manual

2
Features and Main Functions Section 1-1
1-1 Features and Main Functions
1-1-1 CP1H Overview
The SYSMAC CP1H is an advanced high-speed, package-type Programma-
ble Controller. While the CP1H employs the same architecture as the CS/CJ
Series and provides the same I/O capacity of 40 I/O points as the CPM2A, the
CP1H is approximately ten times faster.
There are three types of CP1H CPU Units to select from: a basic CPU Unit
(X), a CPU Unit with built-in analog I/O terminals (XA), and a CPU Unit with
Dedicated Pulse I/O Terminals (Y).
Basic CPU Units: X The X CPU Units are the standard models in the CP1H Series.
• The CPU Unit has 24 inputs and 16 outputs built in.
• High-speed counters and pulse outputs can be used on four axes with the
CPU Unit alone.
• The CP1H can be expanded to a maximum total of 320 I/O points by
using CP-series Expansion I/O Units.
• Using CP-series Expansion Units also allows extra functions (such as
temperature sensor inputs) to be added.
• Installing an Option Board enables RS-232C and RS-422A/485 communi-
cations for Programmable Terminals, Bar Code Readers, Inverters, etc.
• Using CJ-series CPU Bus Units enables communications with higher and
lower level devices.

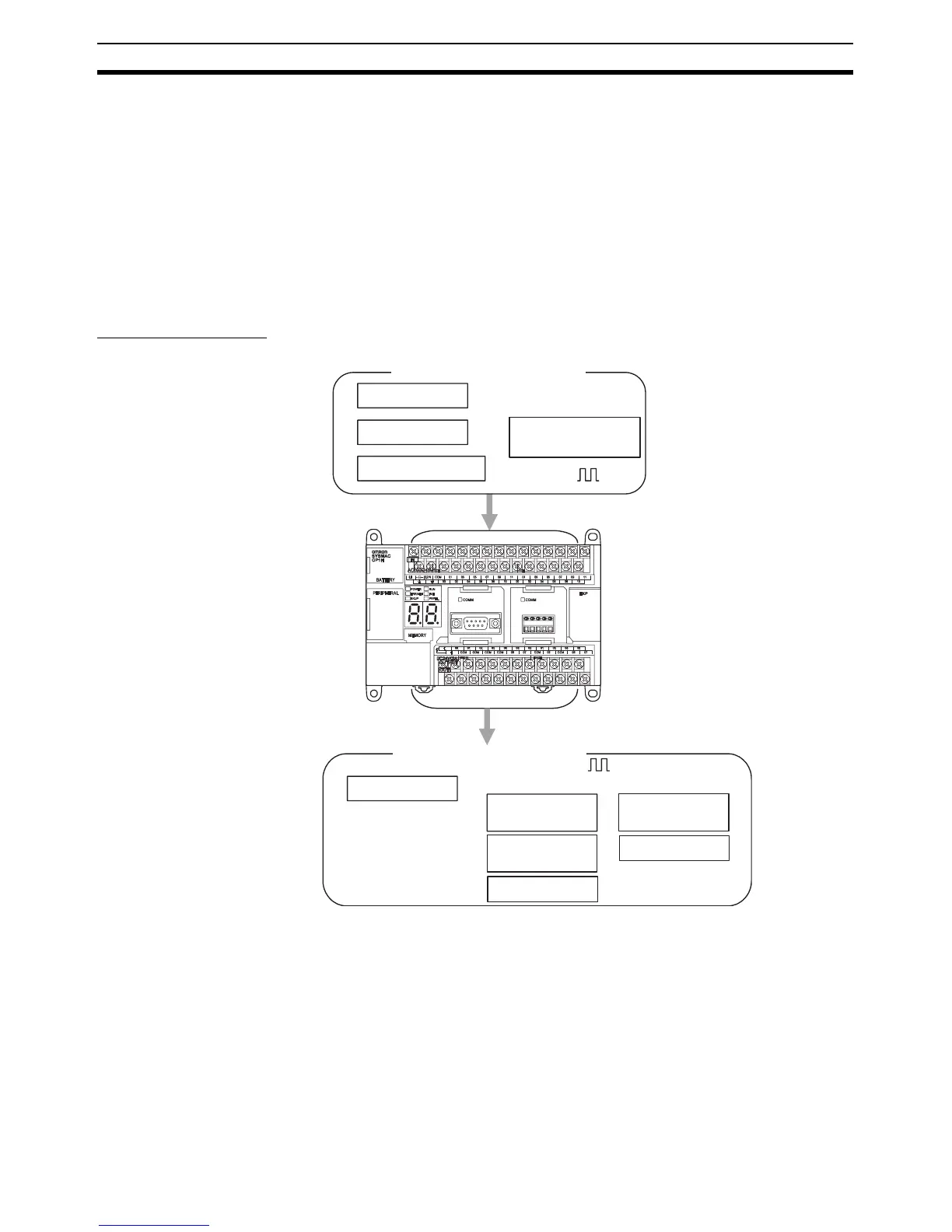

24 built-in inputs (Functions
can be assigned.) (See note.)
Normal inputs (24)
Interrupt inputs (8)
Quick-response inputs (8)
High-speed counter
(4 axes)
100 kHz (single phase)
16 built-in outputs (Functions
can be assigned.) (See note.)
Normal outputs (16)
2 pulse outputs
100 kHz
2 pulse outputs
30 kHz
2 PWM outputs
Unit Ver. 1.0 or Earlier Unit Ver. 1.1 or Later
4 pulse outputs
100 kHz
2 PWM outputs
