Paper Feed Unit PB3150
D146/D147/D148/D149/D150 2-30 SM
2.4 PAPER FEED UNIT PB3150

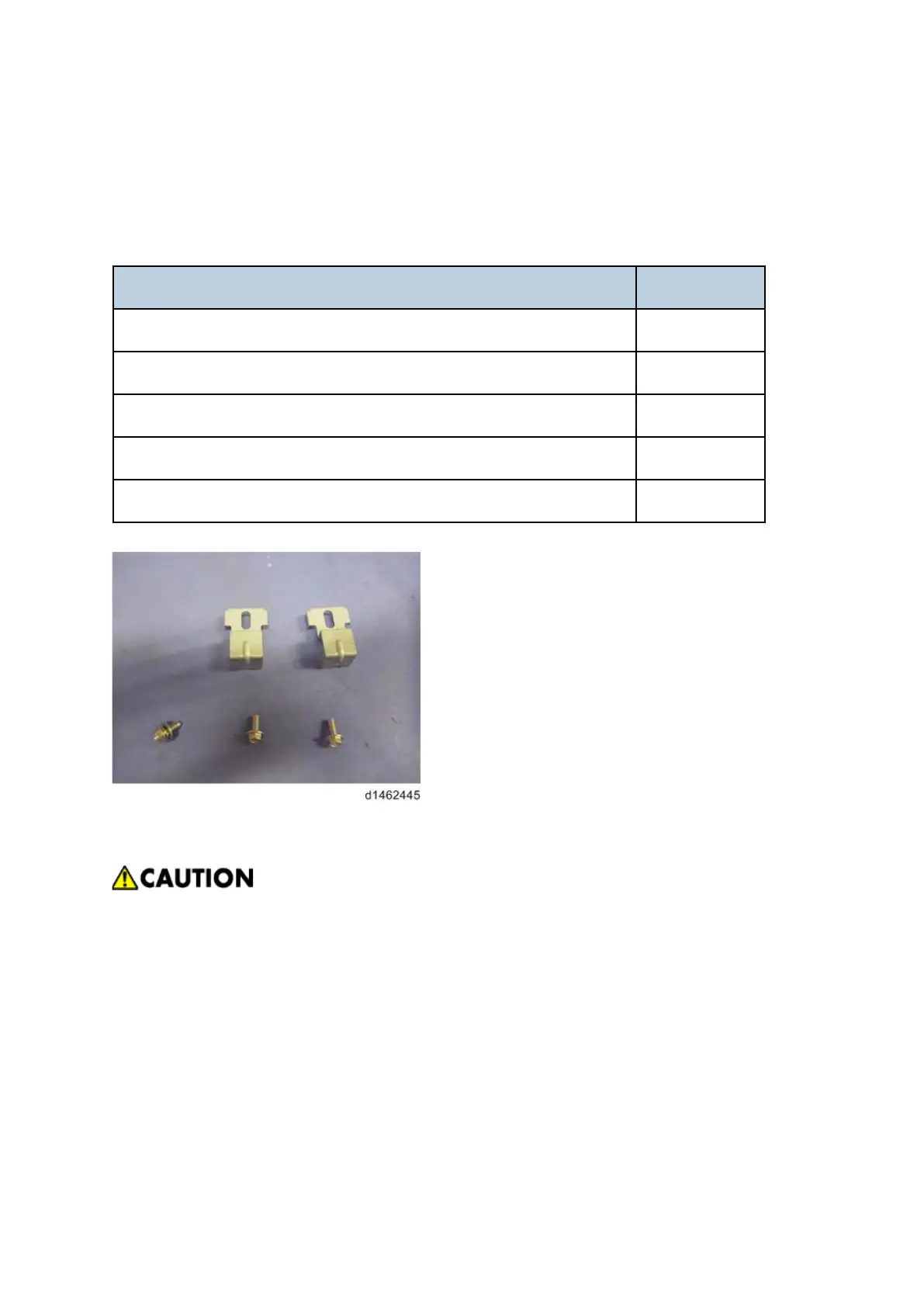

2.4.1 ACCESSORY CHECK
Description Q’ty
Securing Bracket 2
Screw with Spring Washer - M4 × 10 1
Screws - M4 × 10 2
Rating label 1
Decal - EMC Address 1
2.4.2 INSTALLATION PROCEDURE
§ The machine should be held at the correct locations and lifted gently by two people.
§ If it is lifted without care, handled carelessly or dropped, it may result in injury.
§ When installing this option, turn the machine power OFF, and unplug the power supply
cord from the wall socket.
§ If it is installed with the power on, it may result in an electric shock or a malfunction.
§ Be sure to join the machine to the paper feed unit so as to prevent equipment from falling
over.
§ If they are not connected, they may move and fall over, resulting in injury.
1. Remove the orange tape and retainers.
2. Remove the items provided (fixing screws, etc.) from the package.
3. Holding the grips on the machine, align it with the locating pin [A], and place the machine on
the paper feed unit.
