Tray Lift-Transport Unit

D695 12 SM

1.10 TRAY LIFT-TRANSPORT UNIT

1. Rear cover ( page 1)

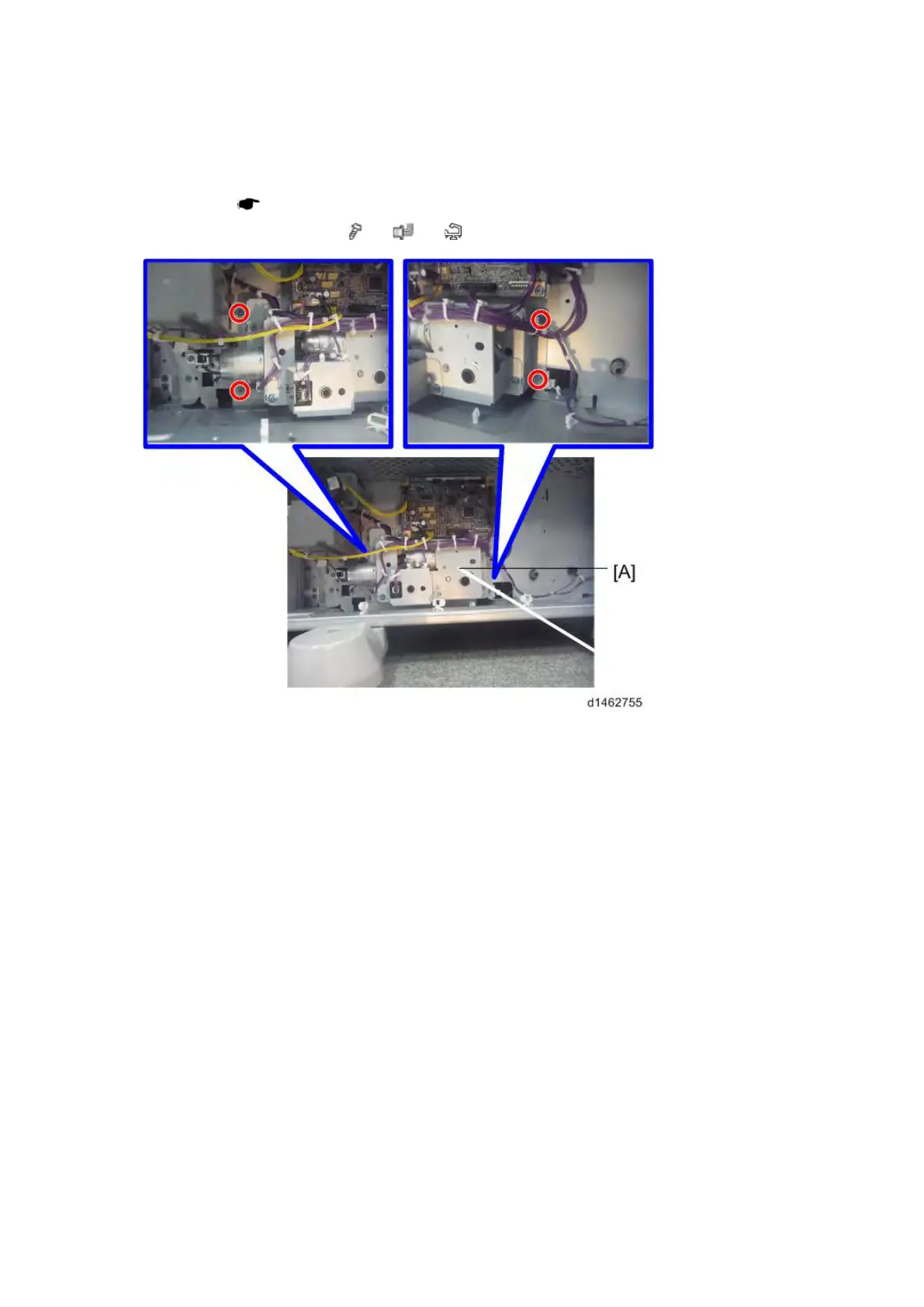

2. Tray lift-transport unit [A] (

×4, ×3, ×14)
