Product Overview
D146/D147/D148/D149/D150 1-18 SM

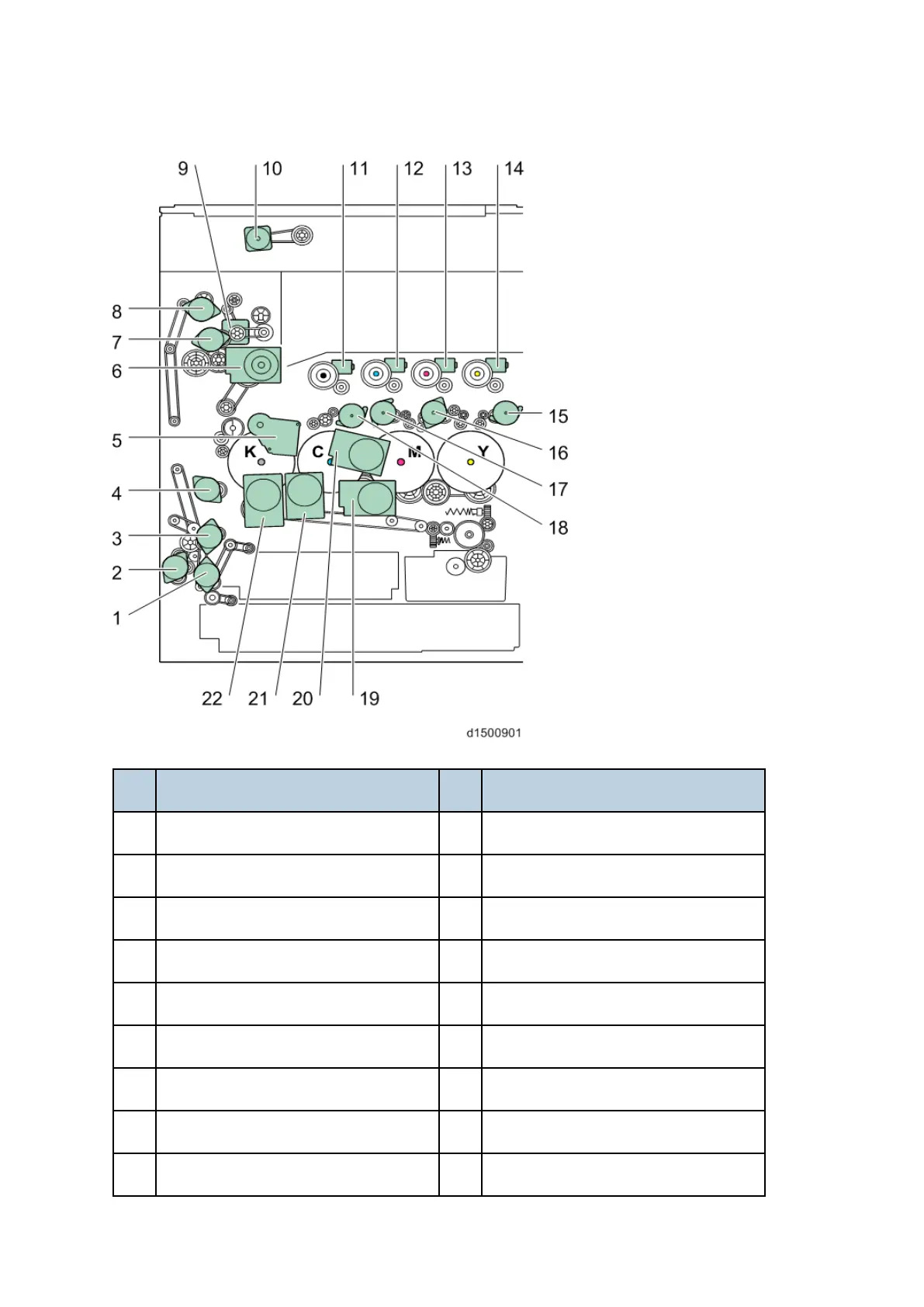

1.1.3 DRIVE LAYOUT
No. Description No. Description
1 Paper feed motor 12 Toner bottle drive motor (C)
2 Duplex / By-pass motor 13 Toner bottle drive motor (M)
3 Transport motor 14 Toner bottle drive motor (Y)
4 Registration motor 15 Toner transport motor (Y)
5 Paper transfer contact motor 16 Toner transport motor (M)
6 Fusing motor 17 Toner transport motor (C)
7 Paper exit / Pressure release motor 18 Toner transport motor (Bk)
8 Duplex entrance motor 19 Development Motor: CMY
9 Inversion motor 20 PCU Motor: CMY
To Next Page
