Paper Exit

D146/D147/D148/D149/D150 4-112 SM

4.13 PAPER EXIT

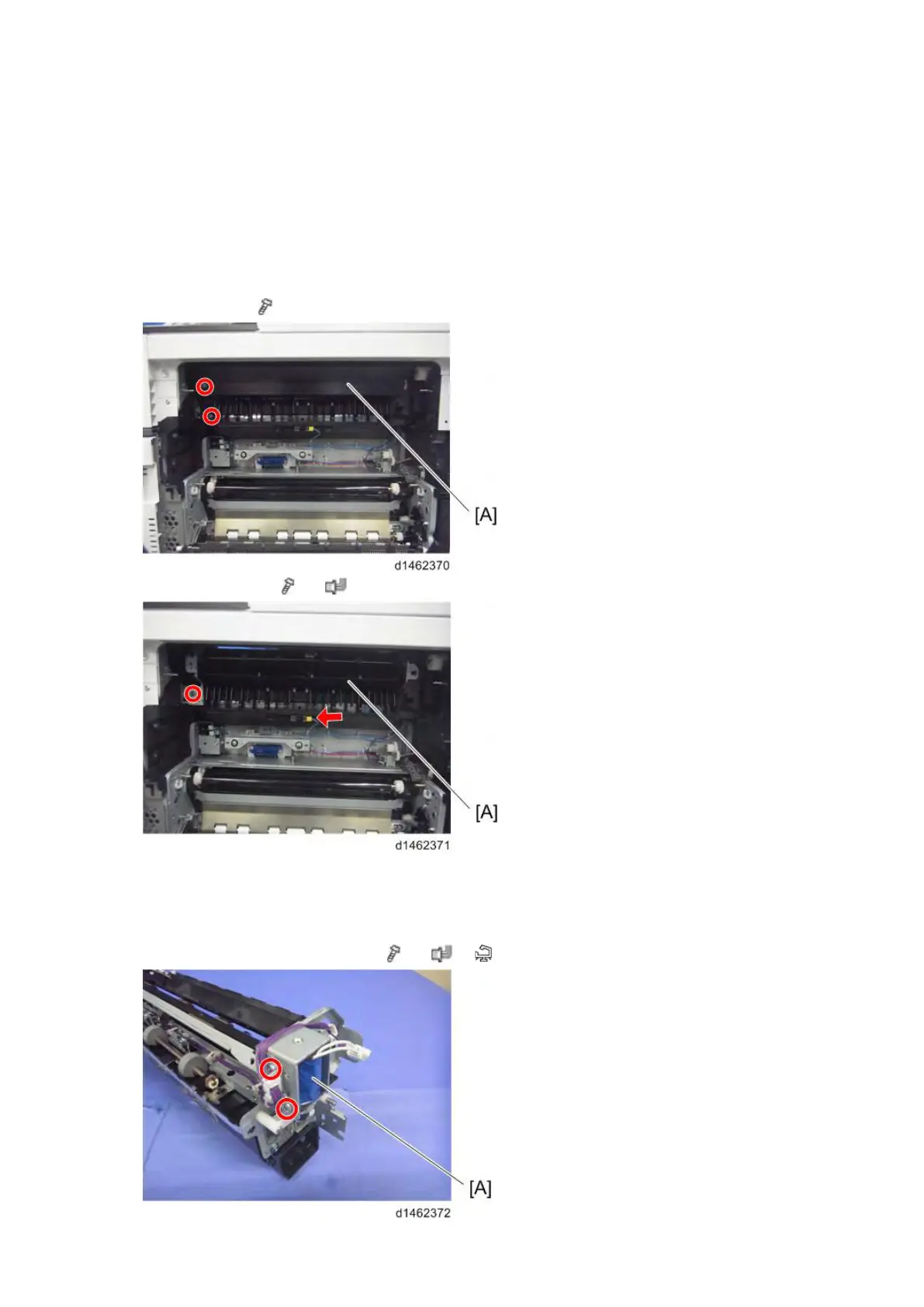

4.13.1 PAPER EXIT UNIT

1. Open the right cover (page 4-134 "Duplex Unit")

2. Fusing unit (page 4-99 "Fusing Unit")

3. Inner cover [A] (

×2)

4. Paper exit unit [A] (

×1, ×2)

4.13.2 PAPER EXIT SWITCHING SOLENOID

1. Paper exit unit (page 4-112 "Paper Exit Unit")

2. Paper exit switching solenoid [A] ( ×2, ×1, ×1)
