Product Overview
D146/D147/D148/D149/D150 1-6 SM

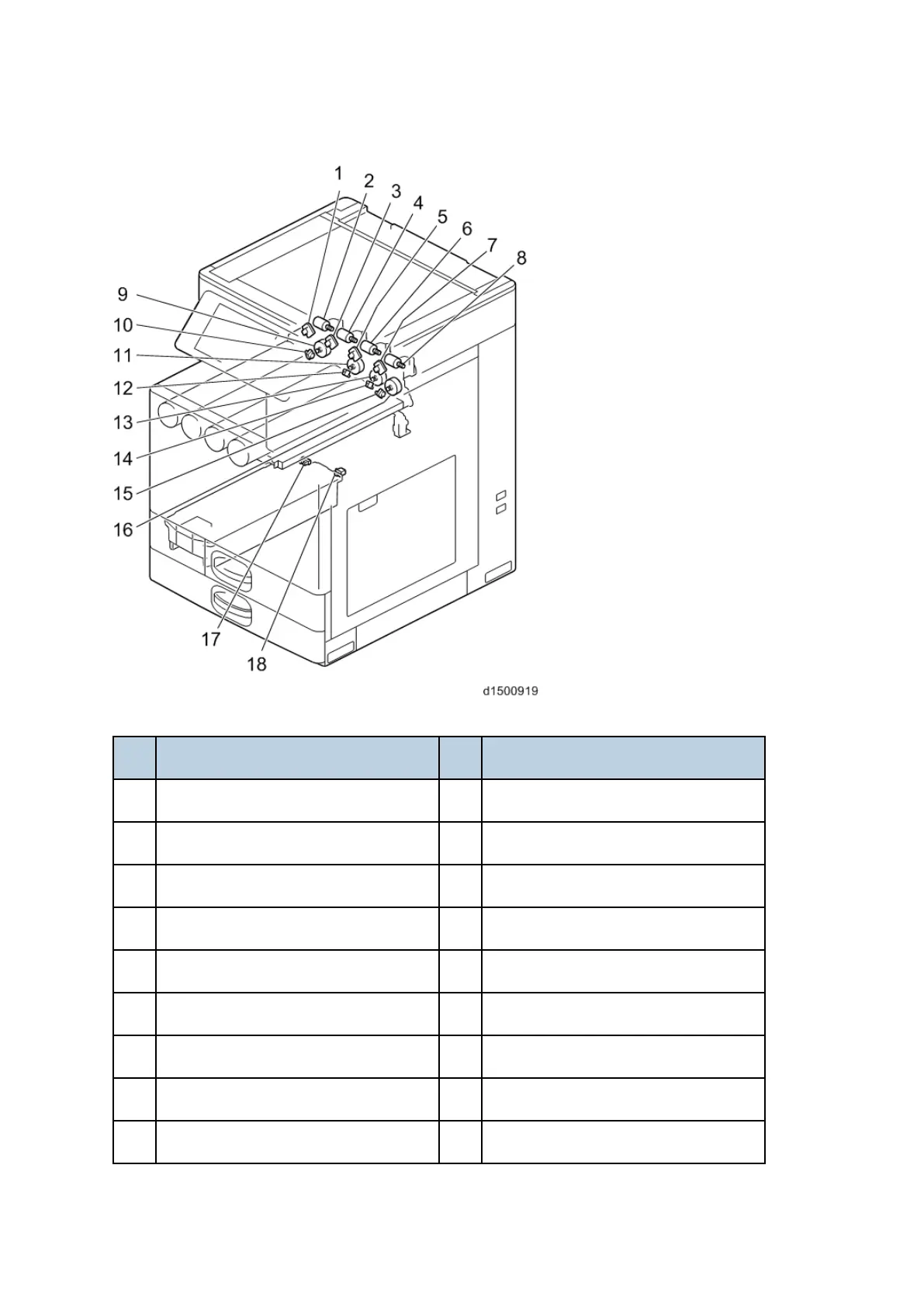

Toner Supply / Waste Toner Bottle
No. Description No. Description
1 ID chip (Y) 10 Toner end sensor (Y)
2 Toner bottle drive motor (Y) 11 Toner transport motor (M)
3 ID chip (M) 12 Toner end sensor (M)
4 Toner bottle drive motor (M) 13 Toner transport motor (C)
5 ID chip (C) 14 Toner end sensor (C)
6 Toner bottle drive motor (C) 15 Toner end sensor (Bk)
7 ID chip (Bk) 16 Toner transport motor (Bk)
8 Toner bottle drive motor (Bk) 17 Waste toner capacity sensor
9 Toner transport motor (Y) 18 Waste toner bottle set switch
To Next Page
