1 Bin Tray BN3110
SM 2-73 D146/D147/D148/D149/D150
2.12 1 BIN TRAY BN3110

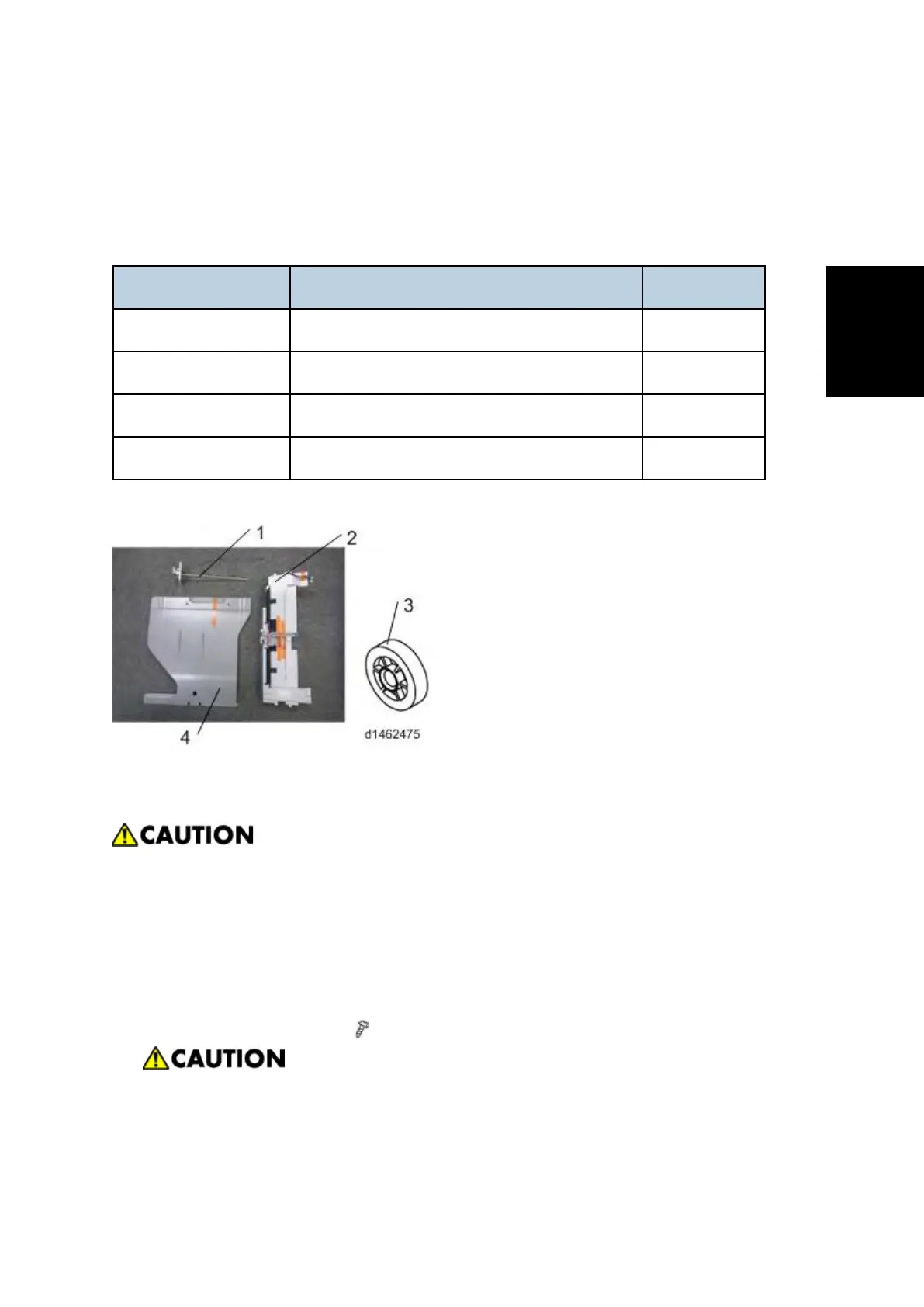

2.12.1 ACCESSORY CHECK
No. Description Q’ty
1 Tray support bar 1
2 1 Bin tray unit 1
3 gear 1
4 Tray 1
2.12.2 INSTALLATION PROCEDURE
§ When installing this option, turn the machine power off, and unplug the power plug from
the wall socket.
§ If it is installed with the power on, it will result in an electric shock or a malfunction.
1. Remove the orange tape and shipping retainers.
2. Remove the enclosed items (fixing screws, etc.).
3. Open the right cover.
4. Main power switch cover [A] (
×1).
§ Remember that there is a tab at the positions in the blue circles.
