Paper Feed
D146/D147/D148/D149/D150 4-124 SM

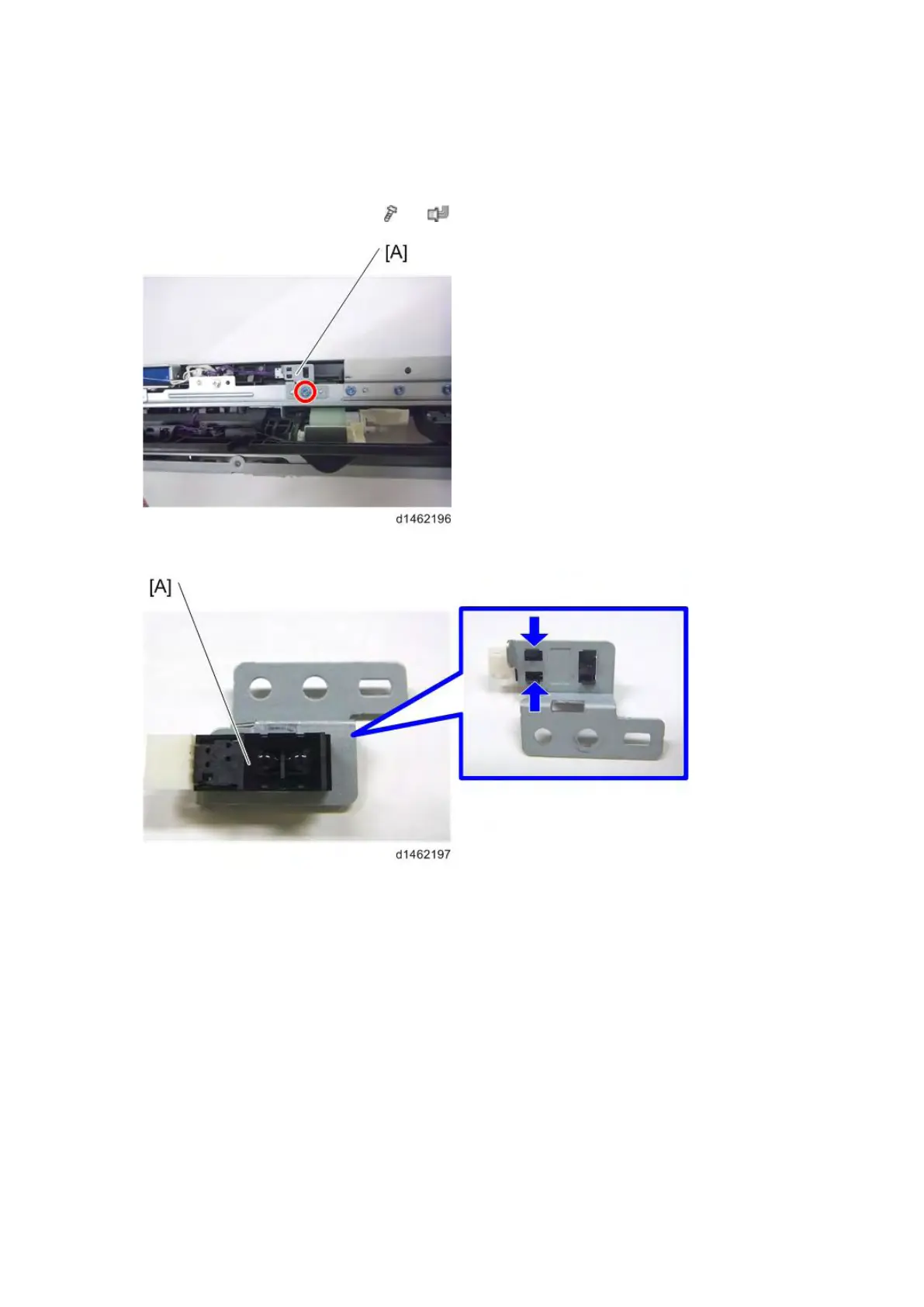

4.14.6 VERTICAL TRANSPORT SENSOR
1. Paper feed unit (page 4-117 "Paper Feed Unit")
2. Vertical transport sensor unit [A] ( ×1, ×1)
3. Vertical transport sensor [A]
