ADF Exit Motor
D683 32 SM

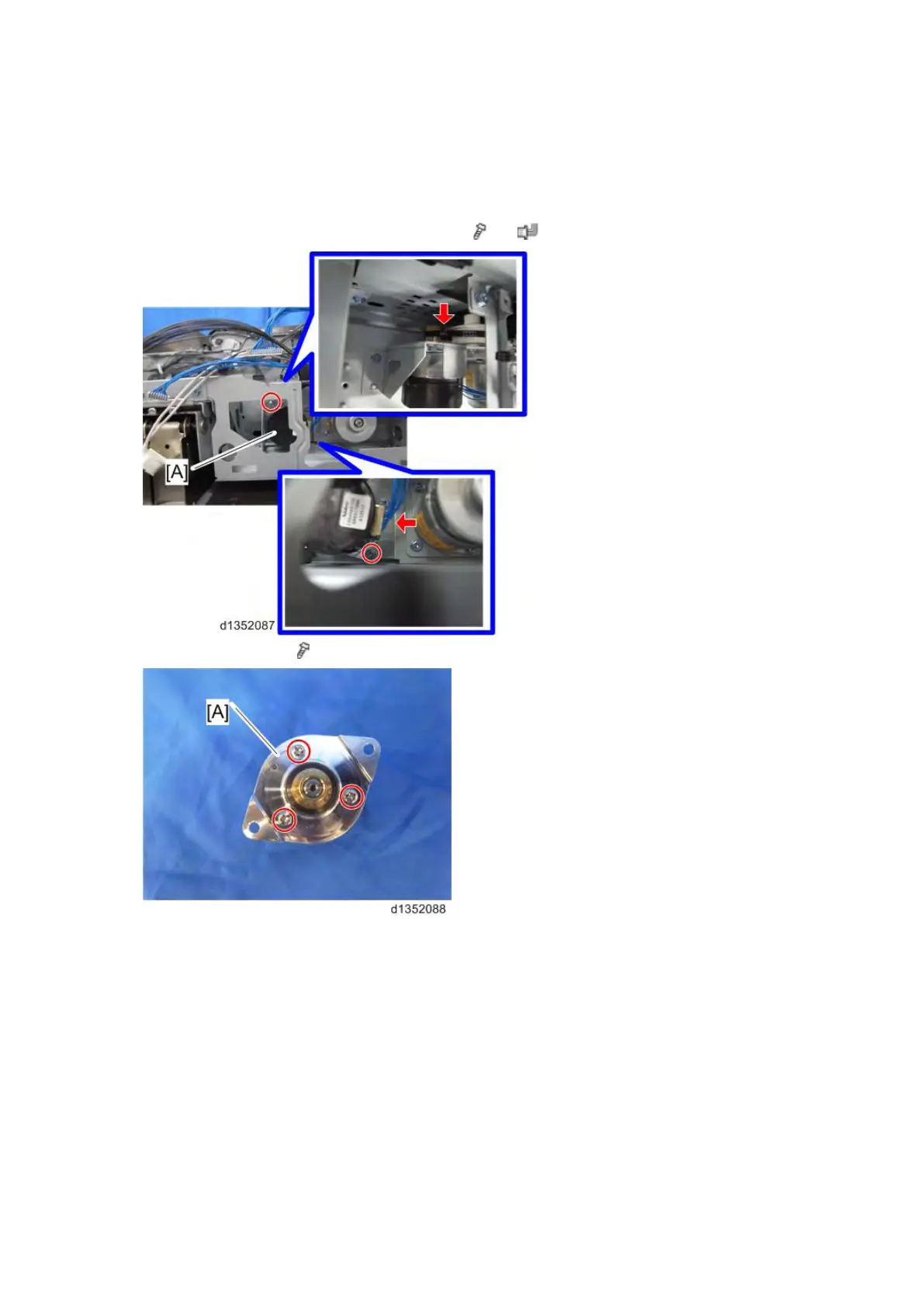

1.25 ADF EXIT MOTOR
1. ADF Control Board (page 18 "ADF Control Board")
2. ADF exit motor [A] along with the bracket (
×2, ×1, spring×1, timing belt×1)
3. ADF exit motor [A] (
×3)
