Paper Exit

SM 4-115 D146/D147/D148/D149/D150

Replacement

and Adjustment

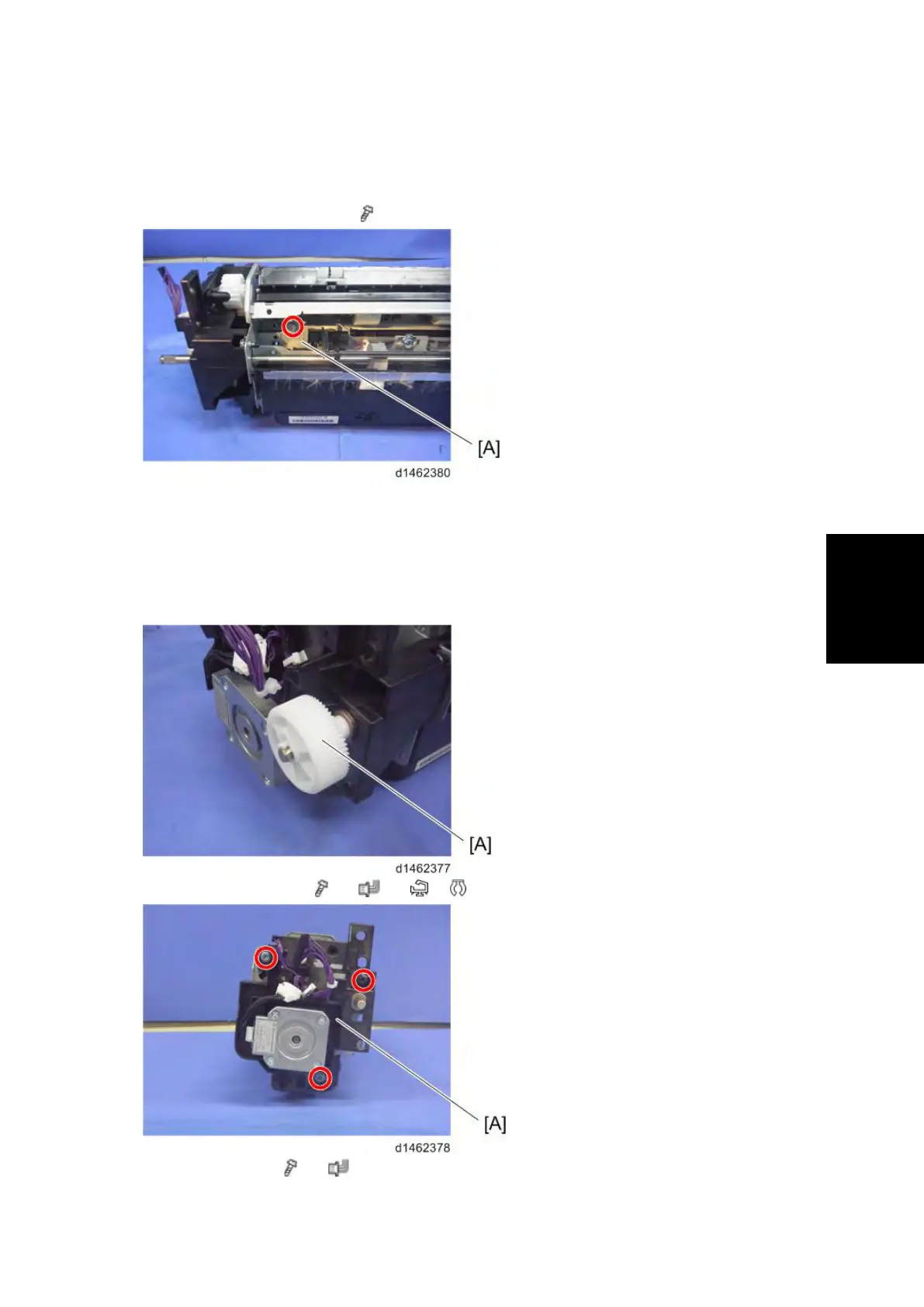

4.13.5 PAPER EXIT FULL SENSOR

1. Paper exit unit (page 4-112 "Paper Exit Unit")

2. Paper exit full sensor unit [A] ( ×2)

3. Paper exit full sensor [A]

4.13.6 REVERSE MOTOR

1. Paper exit unit (page 4-112 "Paper Exit Unit")

2. Gear [A]

3. Reverse motor unit [A] (

×3, ×1, ×1, ×1)

4. Reverse motor [A] (

×2, ×1)
