Bridge Unit BU3070
D146/D147/D148/D149/D150 2-68 SM
2.11 BRIDGE UNIT BU3070

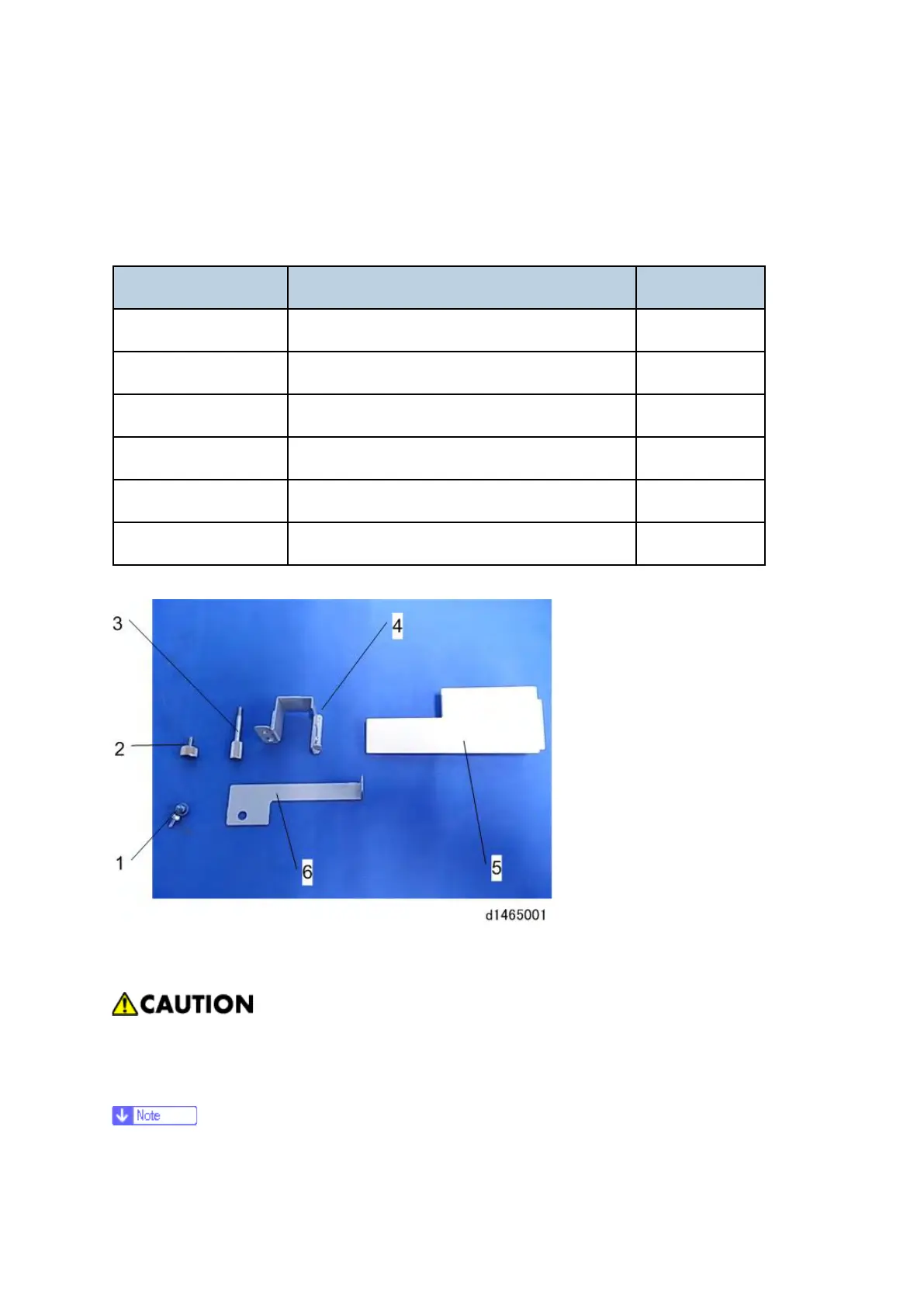

2.11.1 ACCESSORY CHECK
No. Description Q’ty
1 Tapping screw- M3 × 8 1
2 Screw - M4 1
3 Knob Screw - M4 1
4 Right Front Bracket 1
5 Left Lower Cover 1
6 Left Front Bracket 1
2.11.2 INSTALLATION PROCEDURE
§ When installing this option, turn the power of the machine off, and unplug the power plug
from the wall socket.
§ If it is installed when the power is on, it will result in an electric shock or a malfunction.
§ The bridge unit cannot be used together with the ”Internal Shift Tray SH3070” or “Side
Tray Type M3”.
§ To use together with the “1 Bin Tray BN3110”, attach the “1 Bin Tray BN3110” first before
To Next Page
