Tray Heater for Main Machine
D146/D147/D148/D149/D150 2-198 SM

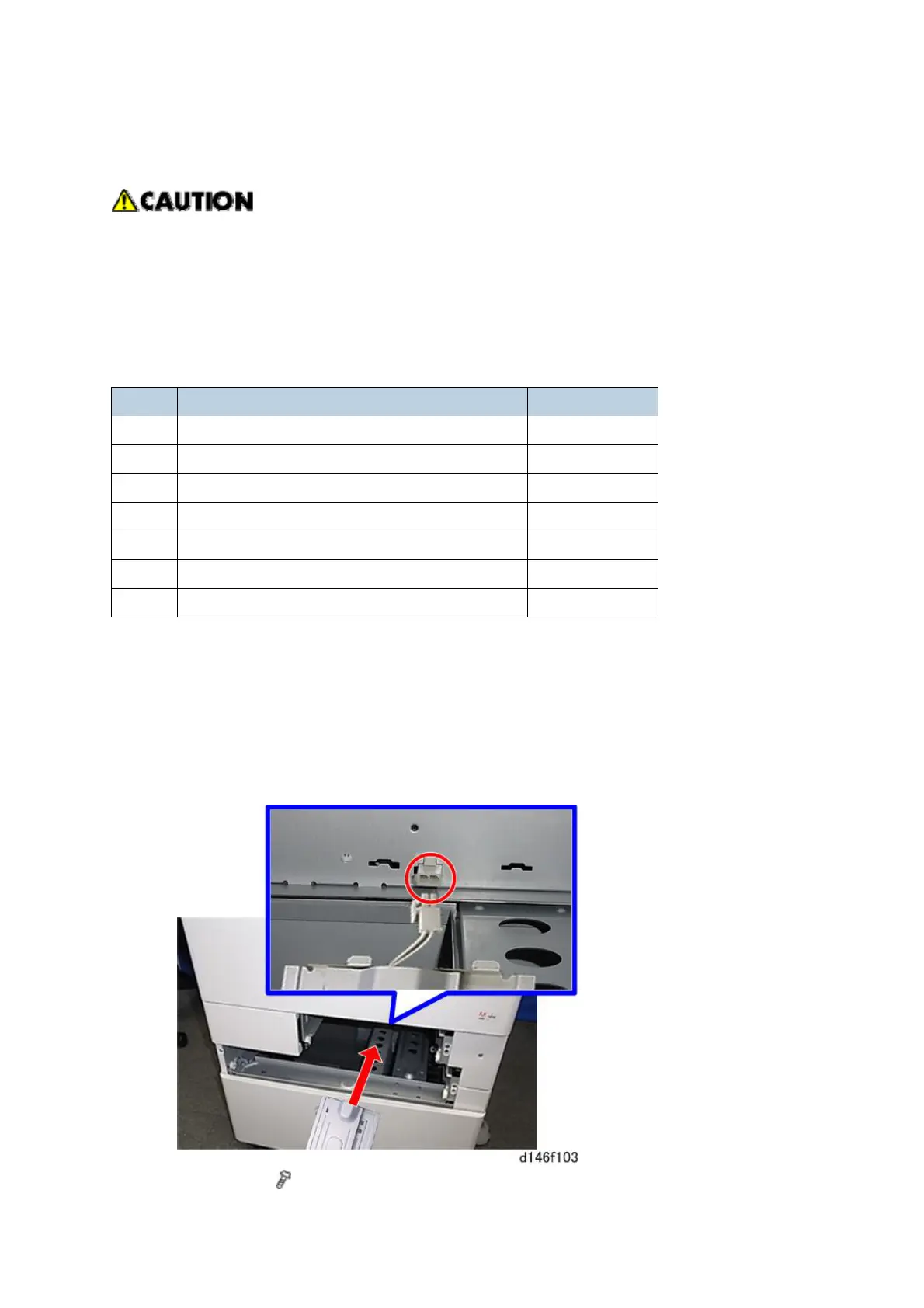

2.40 TRAY HEATER FOR MAIN MACHINE
 Unplug the machine power cord before starting the following procedure.
 Be careful not to damage any of the harnesses.
 After doing this procedure, make sure that harnesses are not damaged or pinched.
2.40.1 ACCESSORY CHECK
No. Description Q’ty
1 Tray Heater 1
2 Tapping Screw: M3 X 8 1
3 PCB: DHB 1
4 Harness for tray 1
5 Harness for DC 1
6 Harness for AC 1
7 Tapping Screw: M3 X 6 3
2.40.2 INSTALLATION PROCEDURE
Attaching the Heater
1. Remove trays 1 and 2 from the machine.
2. Connect the connector of the heater to the connector of the main machine.
3. Attach the heater (
x 1).
Rev. 04
/
07
/
2014
⇒
