Key Counter Bracket Type M3
D146/D147/D148/D149/D150 2-136 SM
2.21 KEY COUNTER BRACKET TYPE M3
2.21.1 INSTALLATION PROCEDURE
1. Scanner right cover.

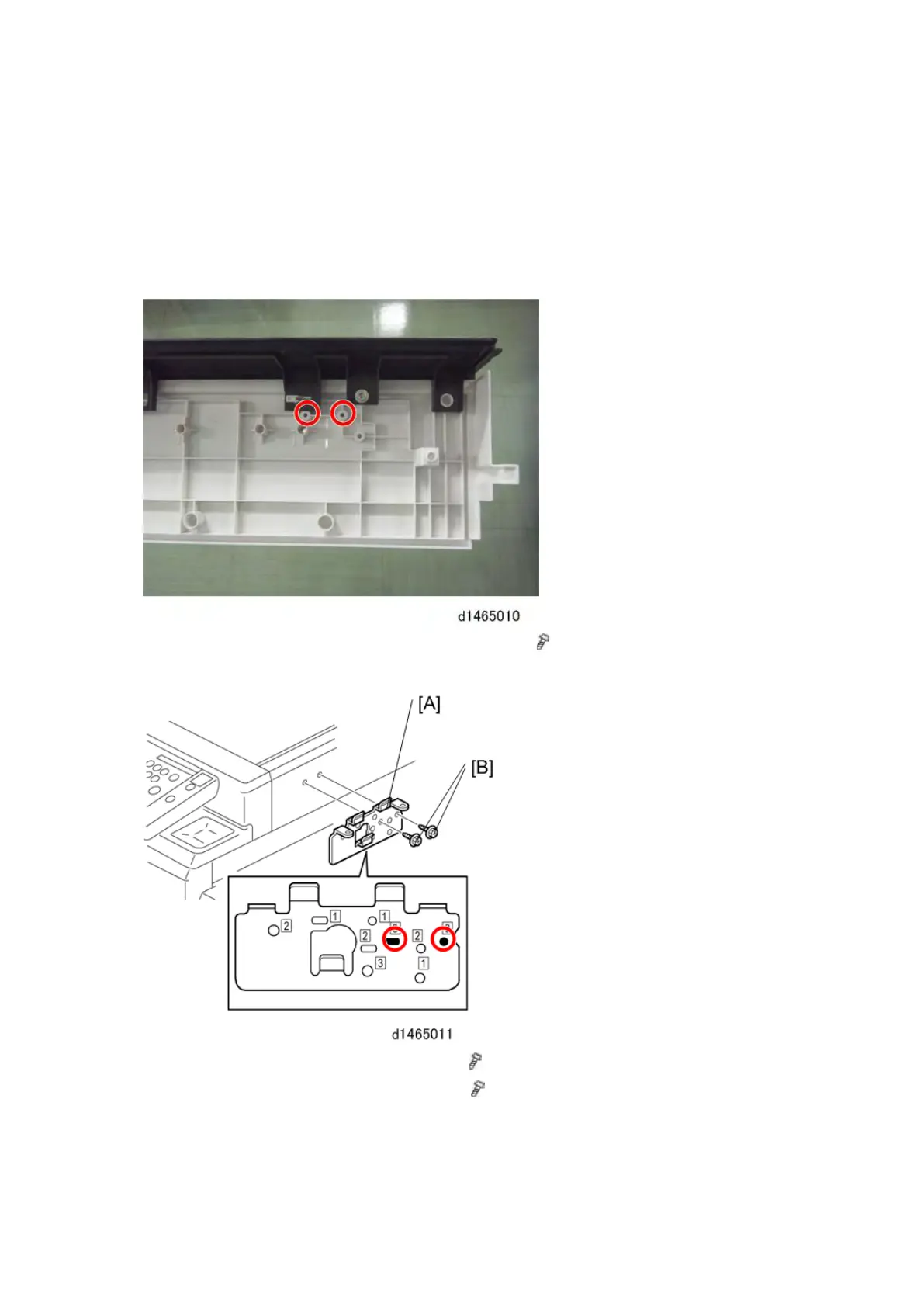

2. Make a screw hole in the removed scanner right cover with a screwdriver or drill.
3. Attach the tray bracket [A] to the scanner right cover (
[B] × 2: M3x10).
§ For this model, use the screw holes marked "1" on the table bracket.
4. Attach the lower tray [A] to the tray bracket (
×2: M3x8).
5. Attach the upper tray [B] to the tray bracket (
×1: M3x8).
6. Use the clamps as necessary to clamp the cable of the card read/writer device.
To Next Page
