Original Set Sensor
D683 24 SM

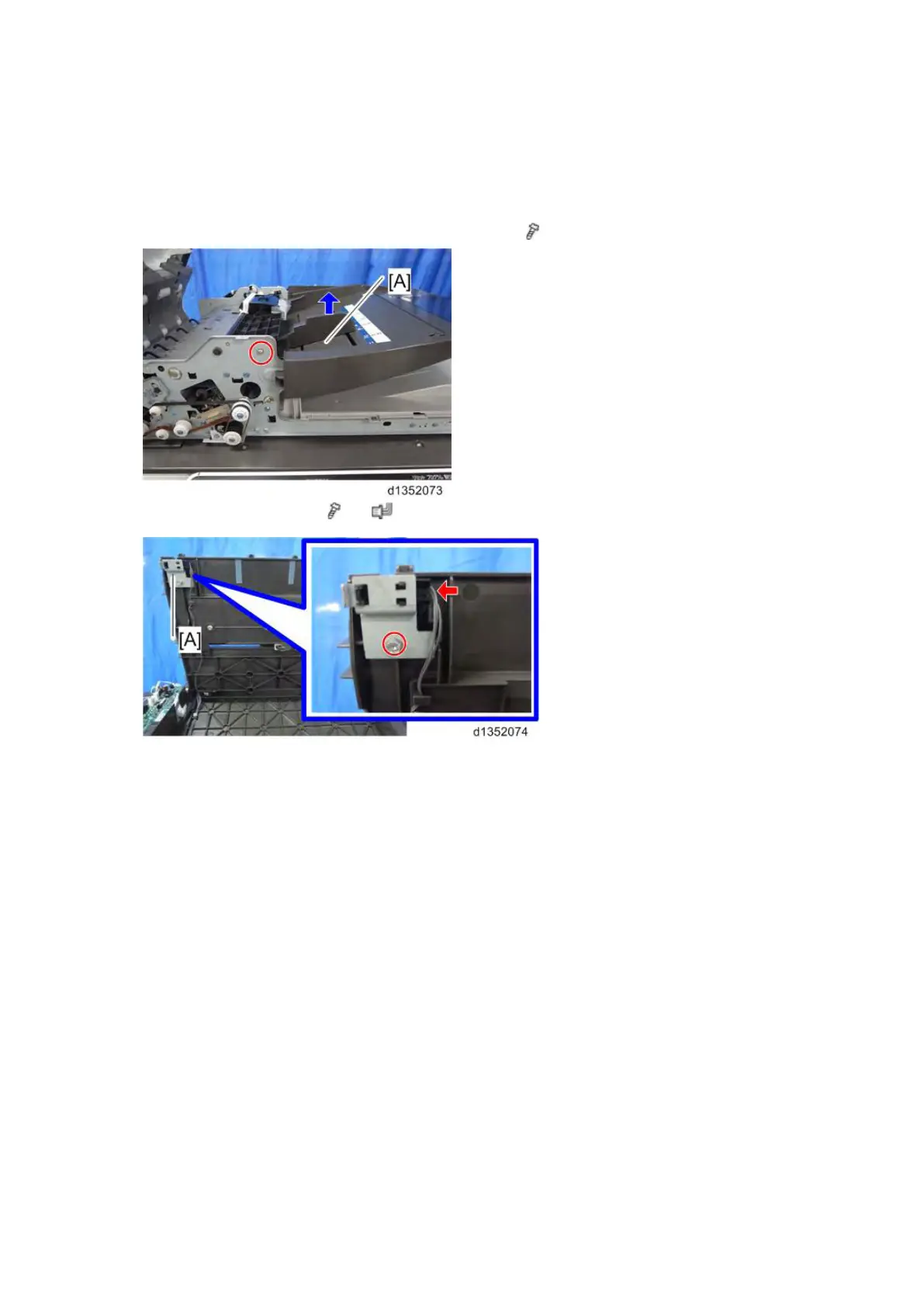

1.18 ORIGINAL SET SENSOR
1. ADF front cover (page 7 "ADF Front Cover")
2. Remove the screw and raise the original tray [A] (
×1)
3. Original set sensor [A] (
×1, ×1)
