Edge stopper paper surface sensor

SM 29 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

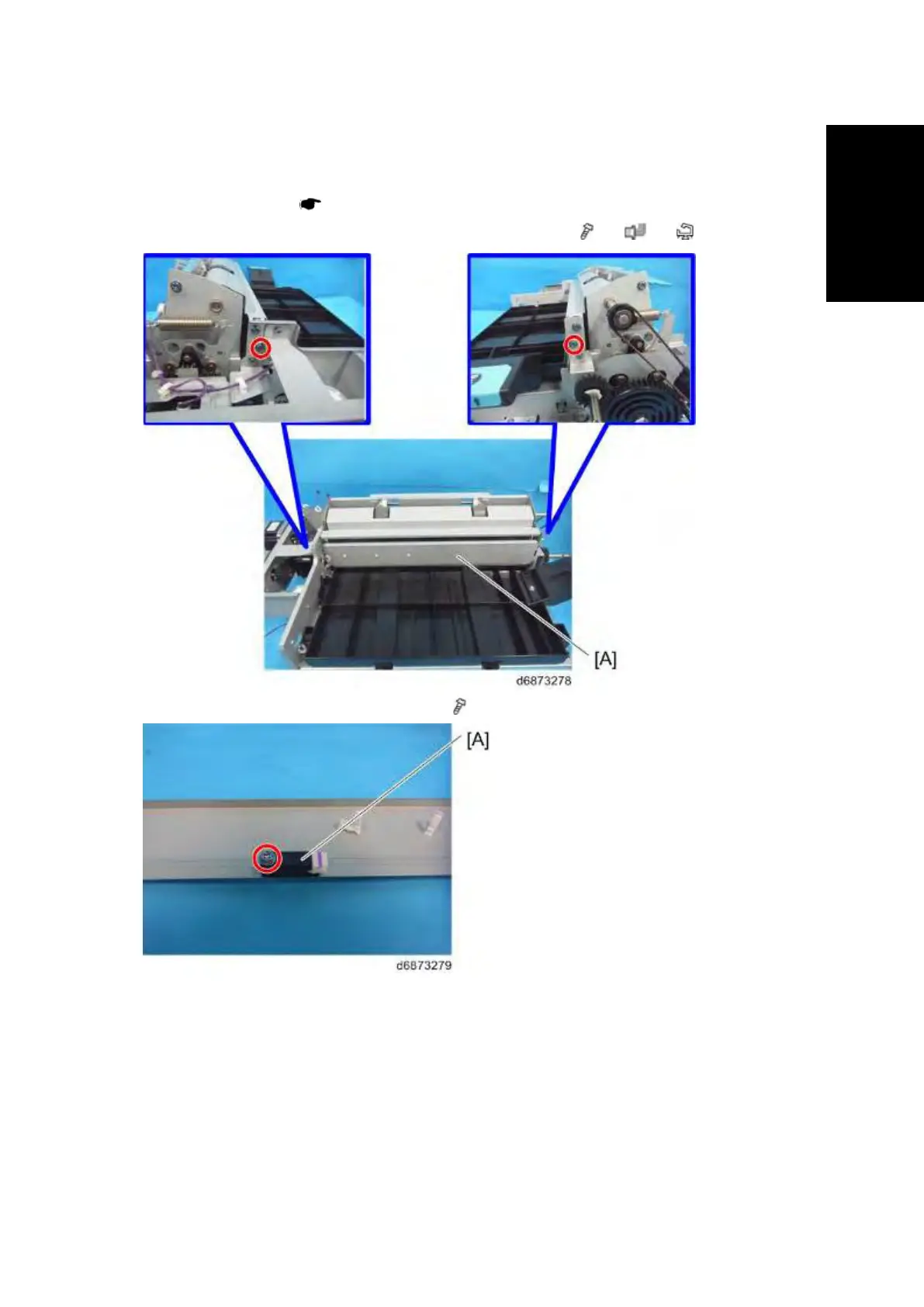

1.15 EDGE STOPPER PAPER SURFACE SENSOR

1. Center-folding unit ( page 25)

2. Leading edge stopper paper surface sensor bracket [A] (

×2, ×1, ×4)

3. Edge stopper paper surface sensor [A] (

×1)
