LCIT RT3030
SM 2-39 D146/D147/D148/D149/D150
2.6 LCIT RT3030

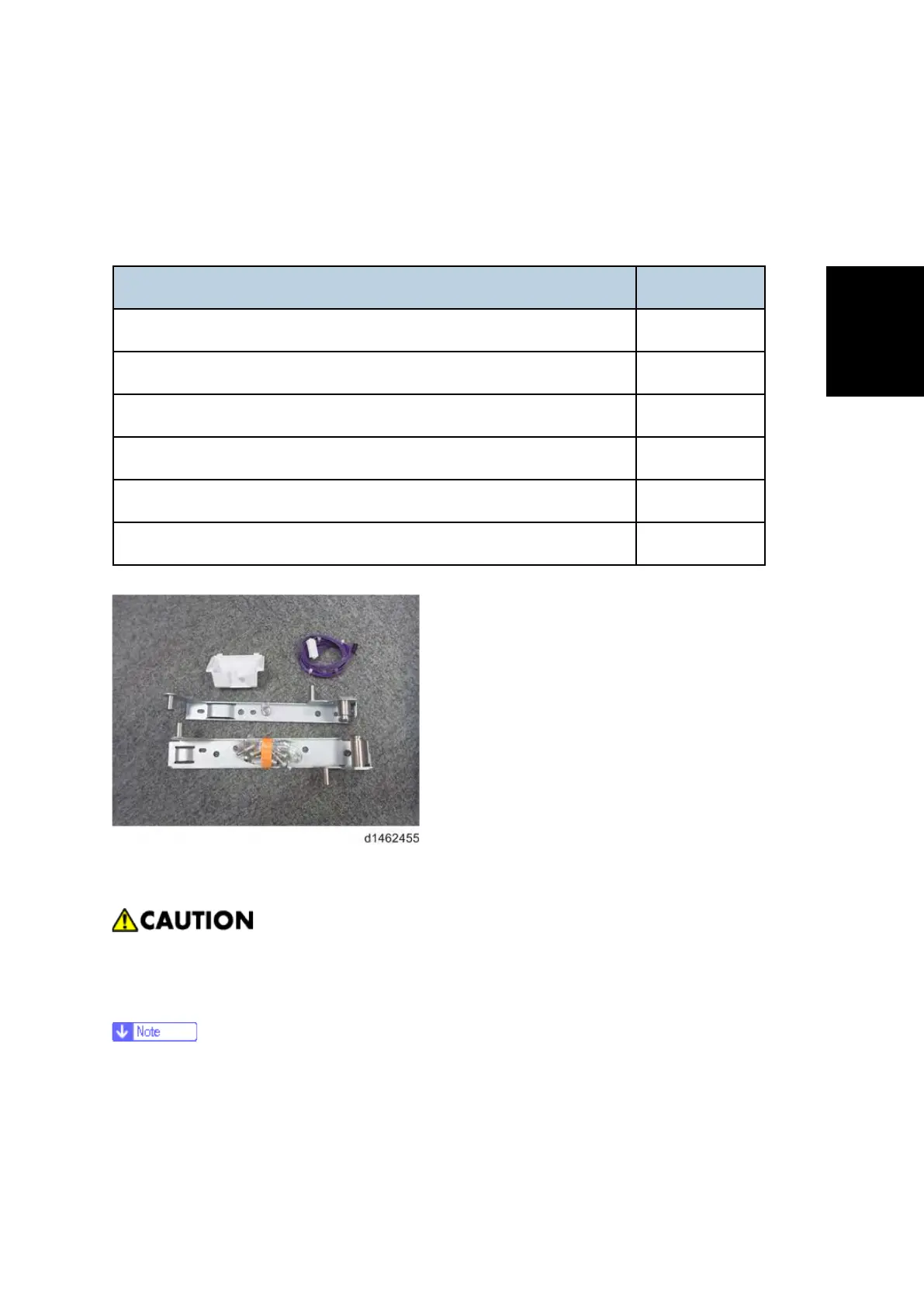

2.6.1 ACCESSORY CHECK
Description Q’ty
Screws – M3 × 6 1
Tapping screw – M3 × 6 1
Connecter Cover 1
Rating label 1
Joint Bracket 1
Harness 1
2.6.2 INSTALLATION PROCEDURE
§ When installing this option, turn the power of the machine off, and unplug the power plug
from the wall socket.
§ If it is installed when the power is on, it will result in an electric shock or a malfunction.
§ Before installing this option, first attach the “Paper Feed Unit PB3160” or “LCIT PB3170”.
1. Remove the orange tape and retainers.
2. Remove the enclosed items (fixing screws, etc.).
3. Covers on the right of the paper feed table (8).
