Scanner Unit
SM 4-33 D146/D147/D148/D149/D150
Replacement
and Adjustment

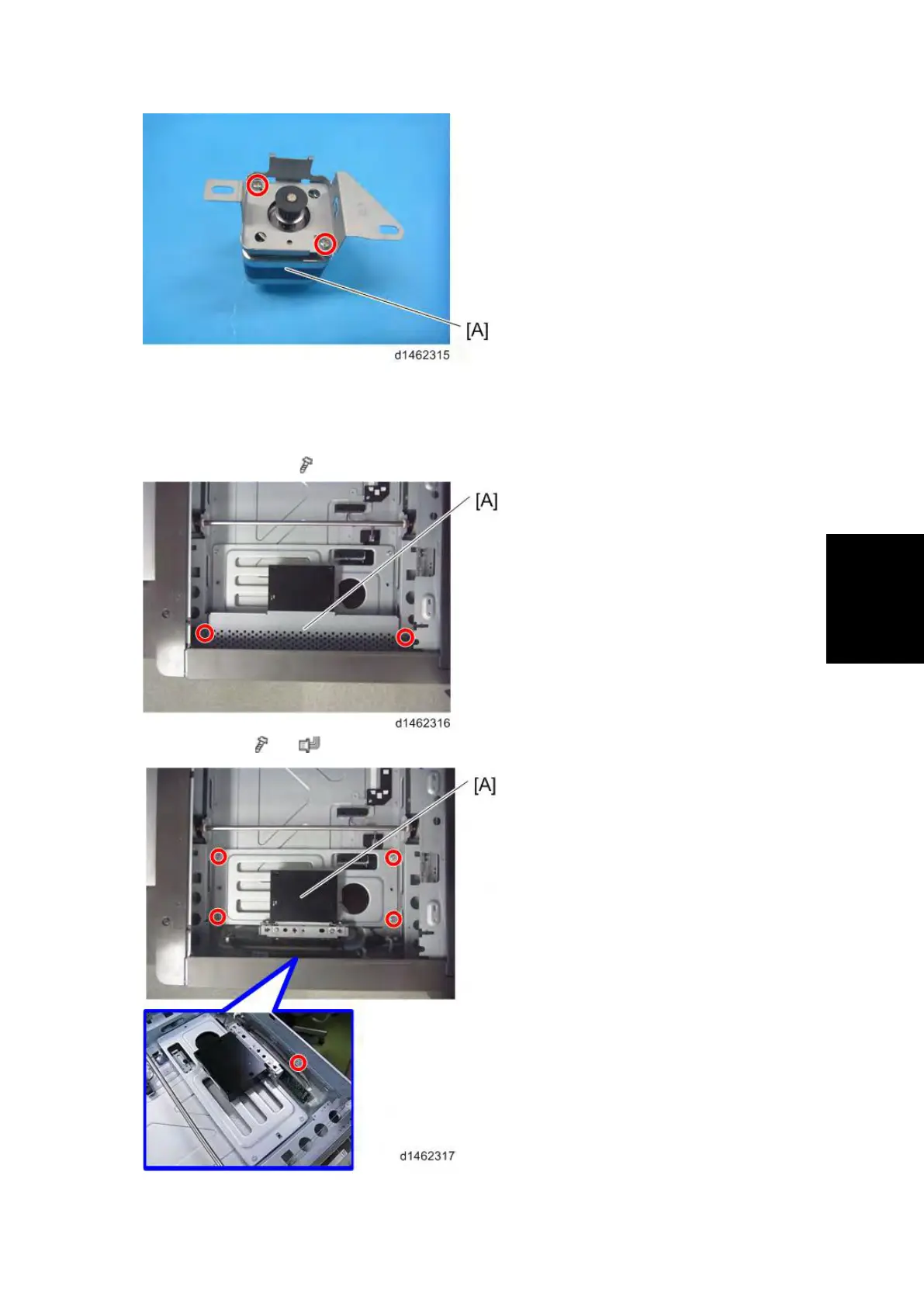

4.6.5 LENS BLOCK
1. Exposure Glass (page 4-29 "Exposure Glass")
2. Lens block cover [A] ( ×2)
3. Lens block [A] (
×5, ×2)
