SM 4-151 D146/D147/D148/D149/D150
and Adjustment
Adjustment after replacement
1. Run SP5832-001, to initialize the hard disk.
Even if you use an HDD that is already formatted, it is recommended that you re-initialize.
2. Run SP5853-001, to install the fixed stamps.
3. Run SP5846-052, to copy the address book from the SD card to the HDD.
4. Turn off the machine, and then turn it back on.
4.17.7 CPU COOLING FAN
1. Rear cover (page 4-10 "Rear Cover")

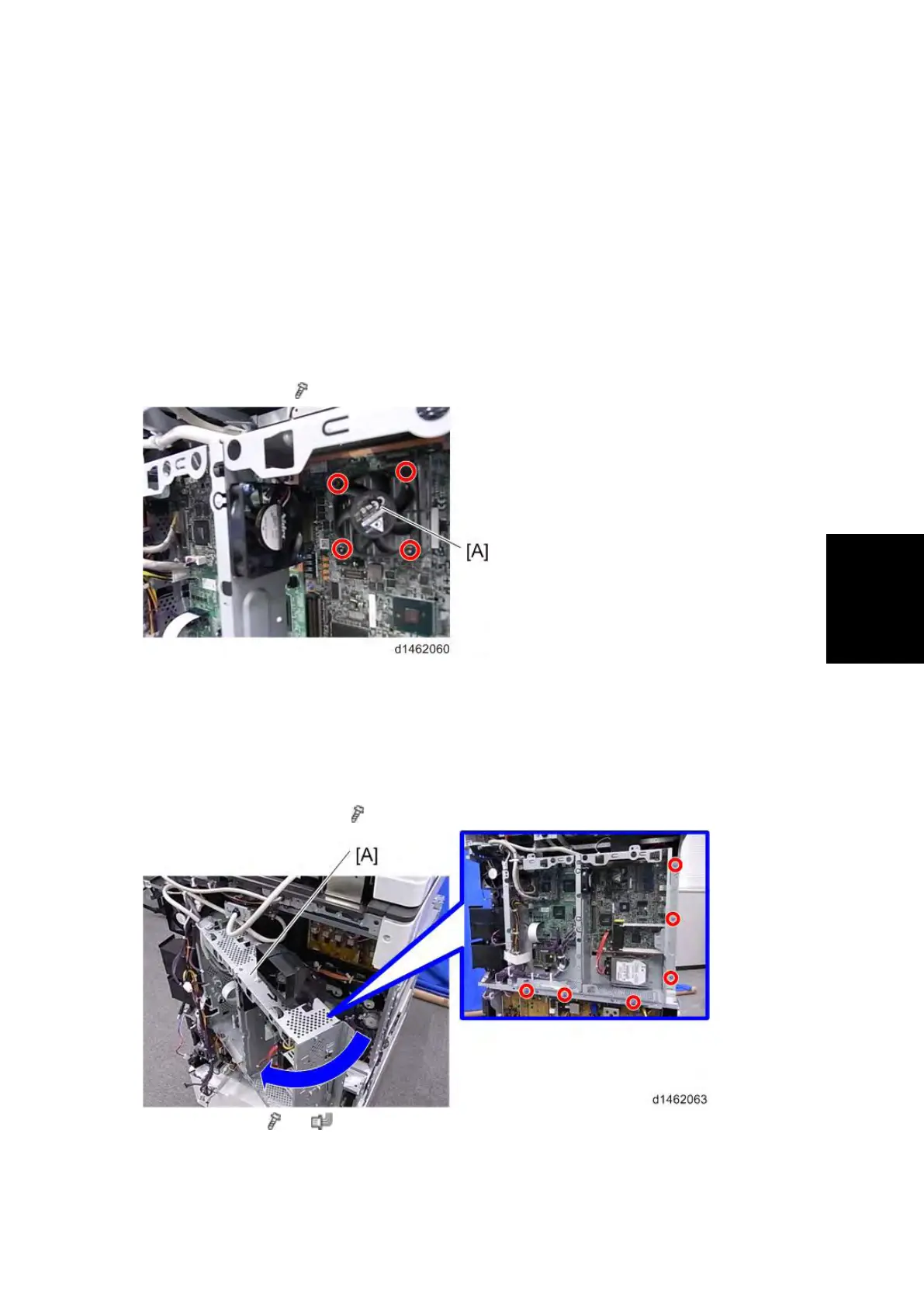

2. CPU cooling fan [A] ( ×4)
4.17.8 IMAGING IOB
1. Scanner rear cover (page 4-11 "Scanner Rear Cover")
2. Scanner rear small cover (page 4-12 "Scanner Rear Cover (Small)")
3. Rear right cover (page 4-11 "Rear Right Cover")
4. Open the controller box [A]. (
×6)
5. Imaging IOB [A] (
×5, ×**)
