4.18.9 MAIN EXHAUST FAN (D148/D149/D150)

1. Scanner rear cover (page 4-11 "Scanner Rear Cover")

2. Scanner rear small cover (page 4-12 "Scanner Rear Cover (Small)")

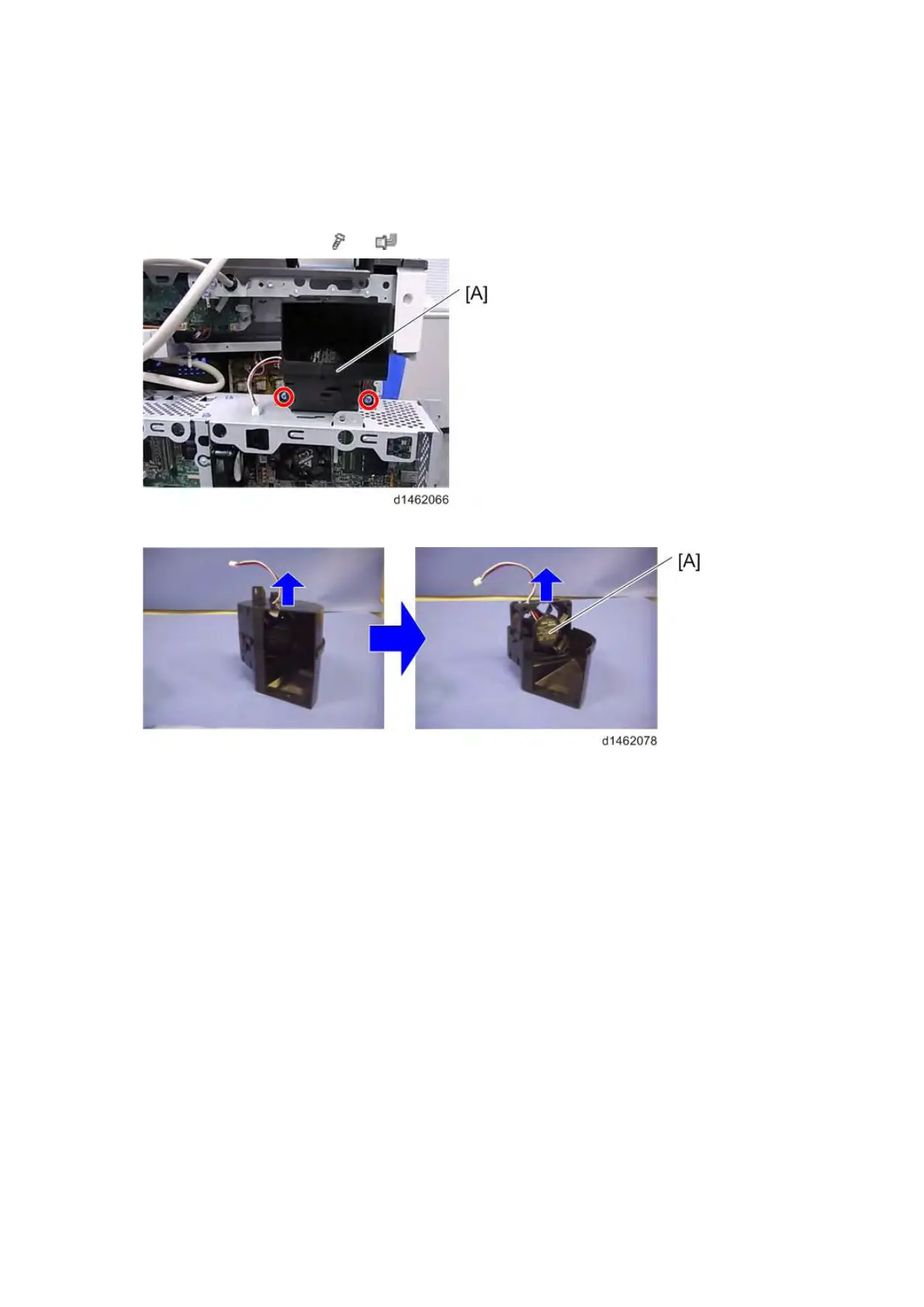

3. Main exhaust fan unit [A] (

×2, ×1)

4. Main exhaust fan [A]
