Tray Lift Motor
SM 11 D690
INTERNAL
FINISHER
SR3130
(D690)

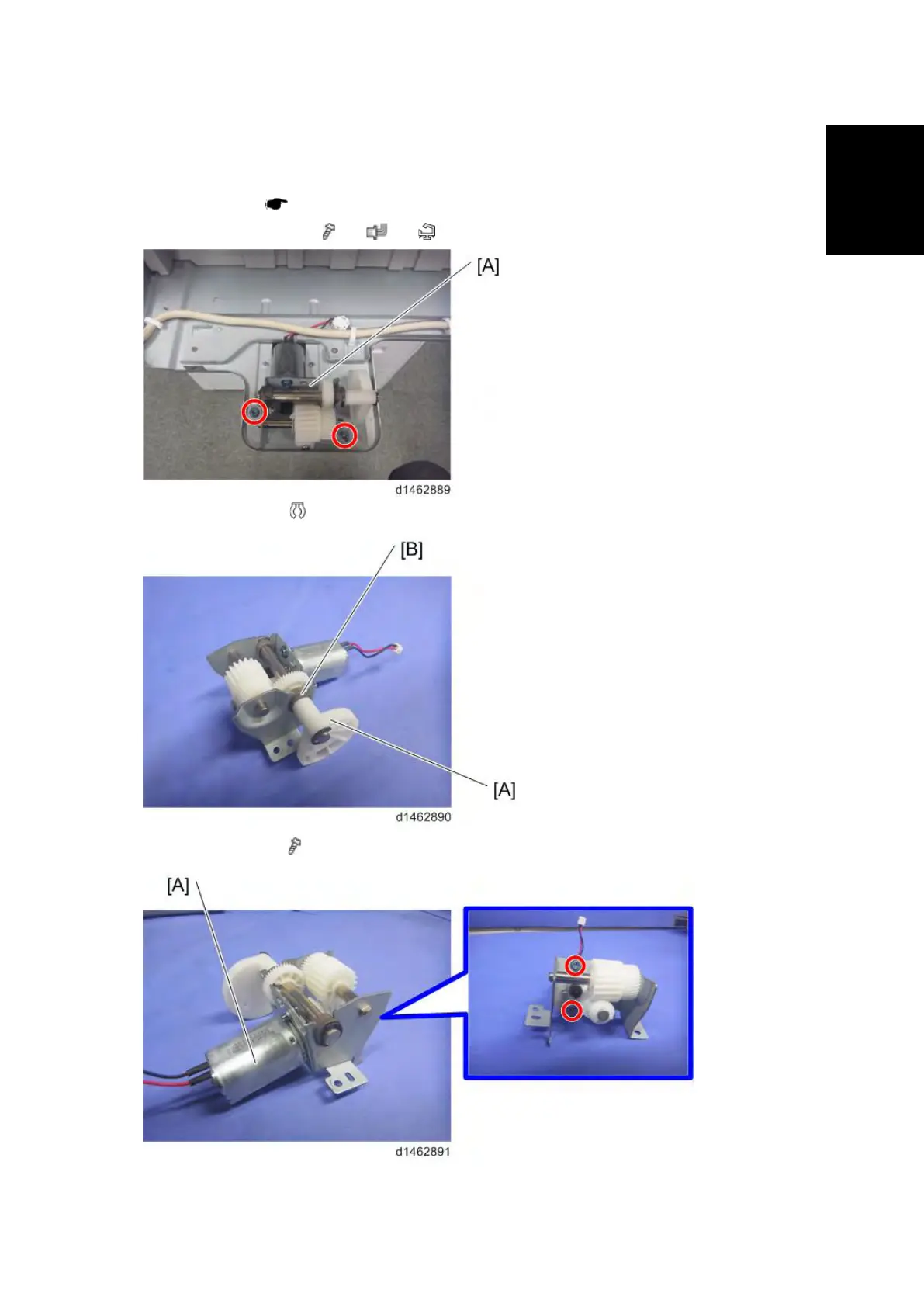

1.9 TRAY LIFT MOTOR
1. Paper exit tray ( page 5)
2. Tray lift motor unit [A] (
×2, ×1, ×1)
3. Cam [A], shaft [B] (
×1)
4. Tray lift motor [A] (
×2)
