Main control board

SM 37 D686/D687

BOOKLET FINISHER

SR3150 / FINISHER

SR3140

(D686/D687)

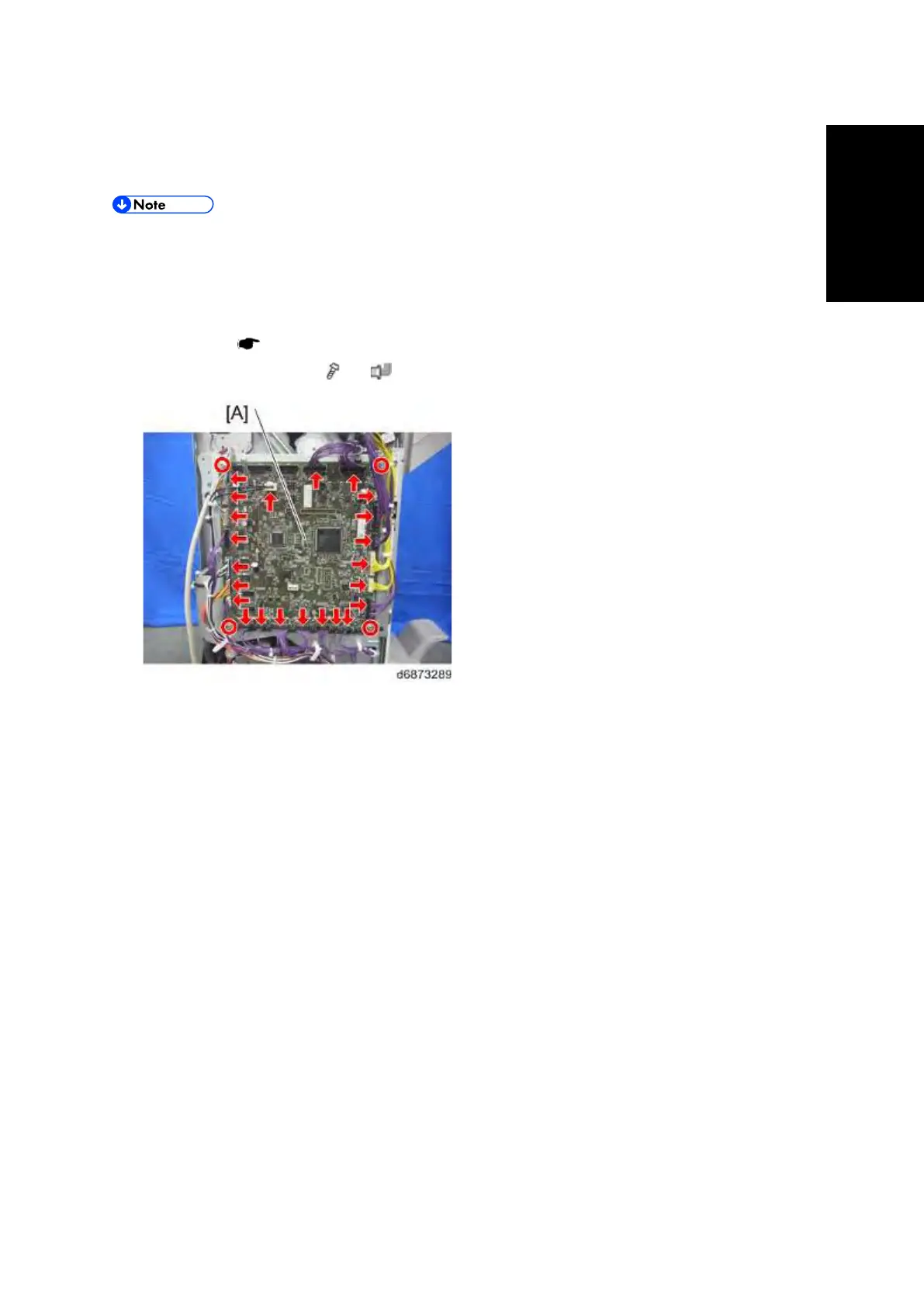

1.23 MAIN CONTROL BOARD

 An EEPROM is installed in the control board to record the drive frequency and no. of

sheets.

 When the control board is replaced, the EEPROM is replaced at the same time.

 The new EEPROM is installed on a service parts control board.

1. Rear cover (

page 3)

2. Main control board [A] (

×4, ×23)
