6.7.4 Defining an interruption point as search target
Requirement
A program was selected in "AUTO" mode and interrupted during execution through CYCLE
STOP or RESET.
Software option
You require the "Extended operator functions" option (only for 828D).
Procedure

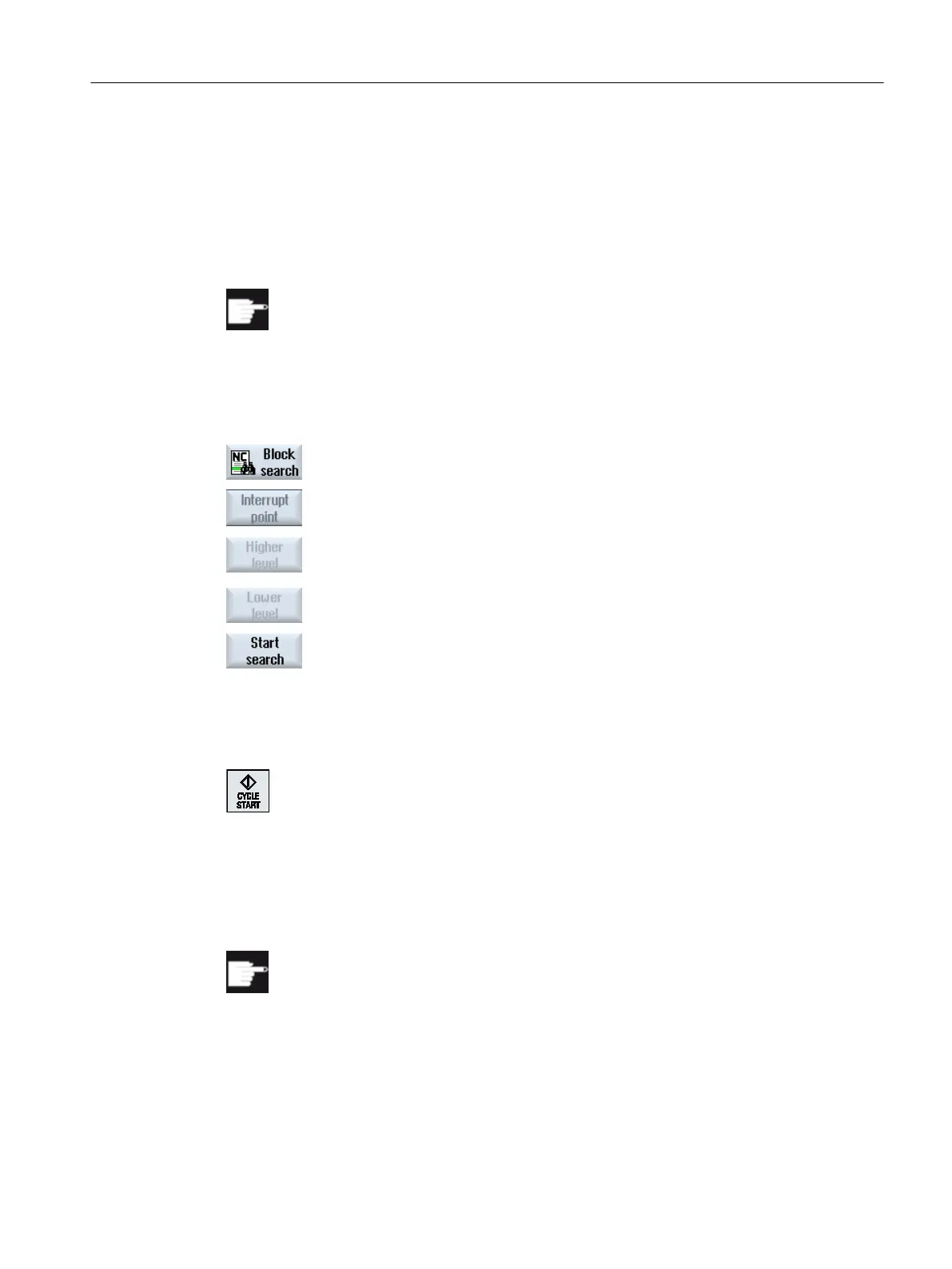

1. Press the "Block search" softkey.
2. Press the "Interrupt point" softkey.
The interruption point is loaded.
3. If the "Higher level" and "Lower level" softkeys are available, use these
to change the program level.
4. Press the "Start search" softkey.
The search starts. Your specified search mode will be taken into account.
The search screen closes.
The current block will be displayed in the "Program" window as soon as
the target is found.
5. Press the <CYCLE START> key twice.
The execution will continue from the interruption point.
6.7.5 Entering the search target via search pointer
Enter the program point which you would like to proceed to in the "Search Pointer" window.
Software option
You require the "Extended operator functions" option for the "Search pointer"
function (only for 828D).
Requirement
The program is selected and the controller is in the reset state.
Machining the workpiece
6.7 Starting machining at a specific point
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 203
