Preconditions
● The required program is opened in the mold making view.
● The "Graphic" softkey is active.
Procedure

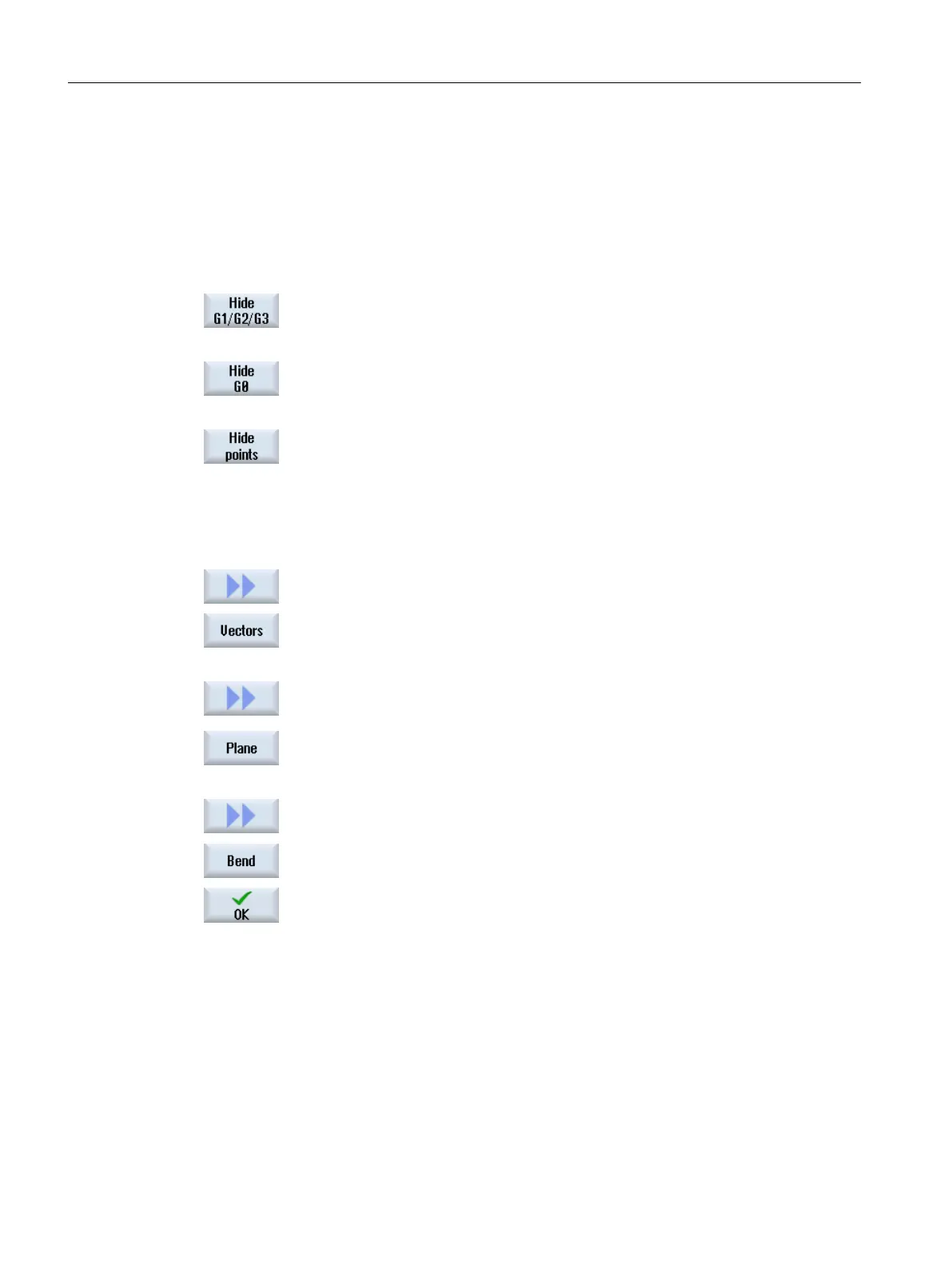

1. Press the softkey "Hide G1/G2/G3" if you want to conceal the machining
paths.
- OR -
2. Press the softkey "Hide G0" if you want to deactivate the approach and
retraction paths.
- OR -
Press softkey "Hide points" to conceal all the points in the graphic.
Note:
You have the option of simultaneously hiding G1/G2/G3 and G0 lines.
In this case softkey "Hide points" is deactivated.
- OR -
Press the softkeys ">>" and "Vectors" to display all orientation vectors.
Note:
This softkey can only be operated if vectors are programmed.
- OR -
Press the softkeys ">>" and "Surface" to calculate the surface area of the
workpiece.
- OR -
Press the softkeys ">>" and "Curvature".
The "Curvature" input window opens.
Enter the desired minimum and maximum value and press "OK" to con‐
firm the entry and to highlight the curvature changes in color.
6.15.4 Specifically jump to the program block
If you notice anything peculiar in the graphic or identify an error, then from this location, you
can directly jump to the program block involved where you can edit the program.
Machining the workpiece
6.15 Mold making view
Milling
260 Operating Manual, 08/2018, 6FC5398-7CP41-0BA0
