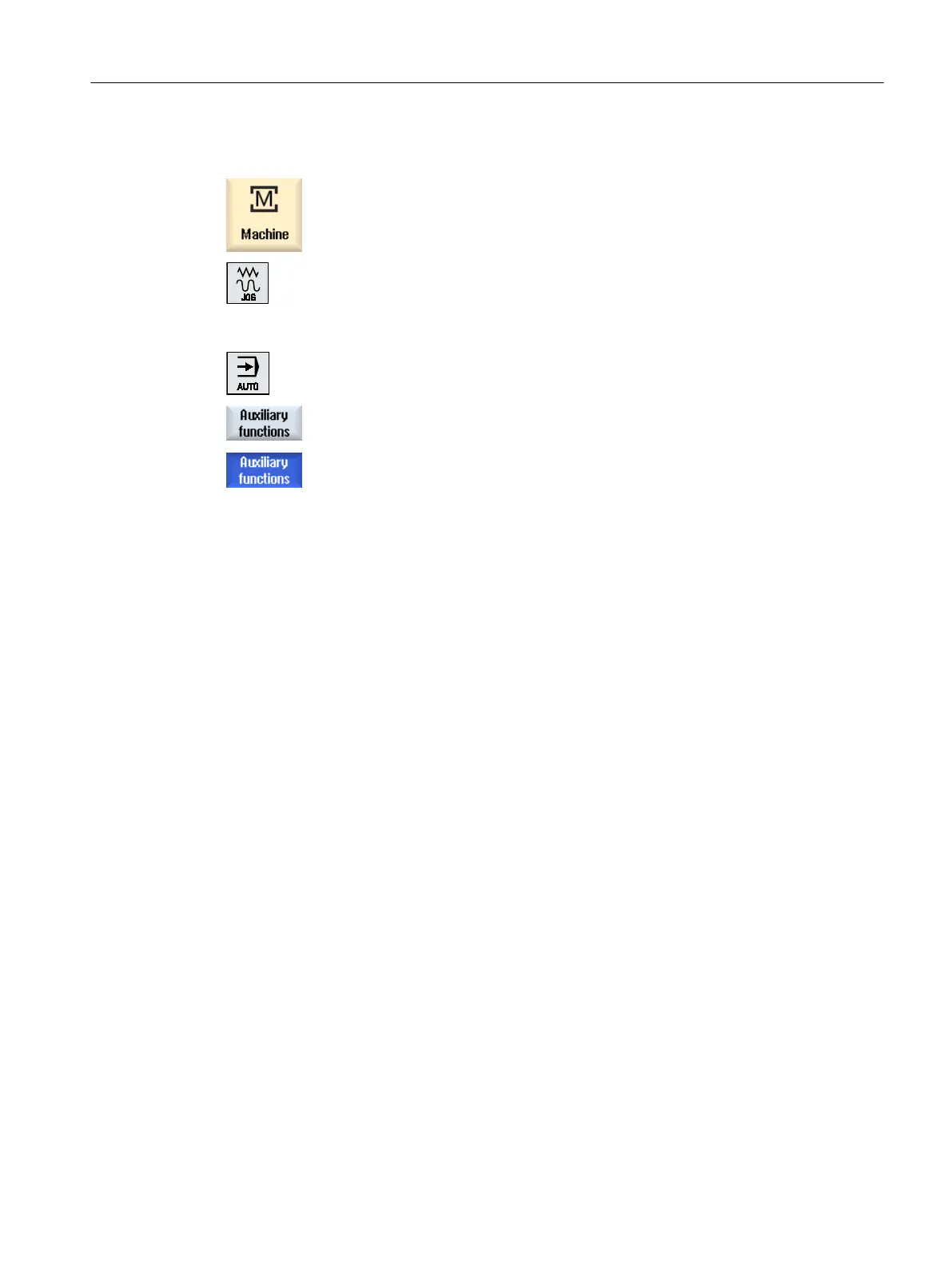

Procedure
1. Select the "Machine" operating area.
...
2. Press the <JOG>, <MDA> or <AUTO> key.
3. Press the "H functions" softkey.
The "Auxiliary Functions" window opens.
4. Press the "H functions" softkey again to hide the window again.
Machining the workpiece
6.13 Displaying G Functions and Auxiliary Functions
Milling
Operating Manual, 08/2018, 6FC5398-7CP41-0BA0 253
