Function introduction
102 AFG31000 Series Arbitrary Function Generator User's Manual

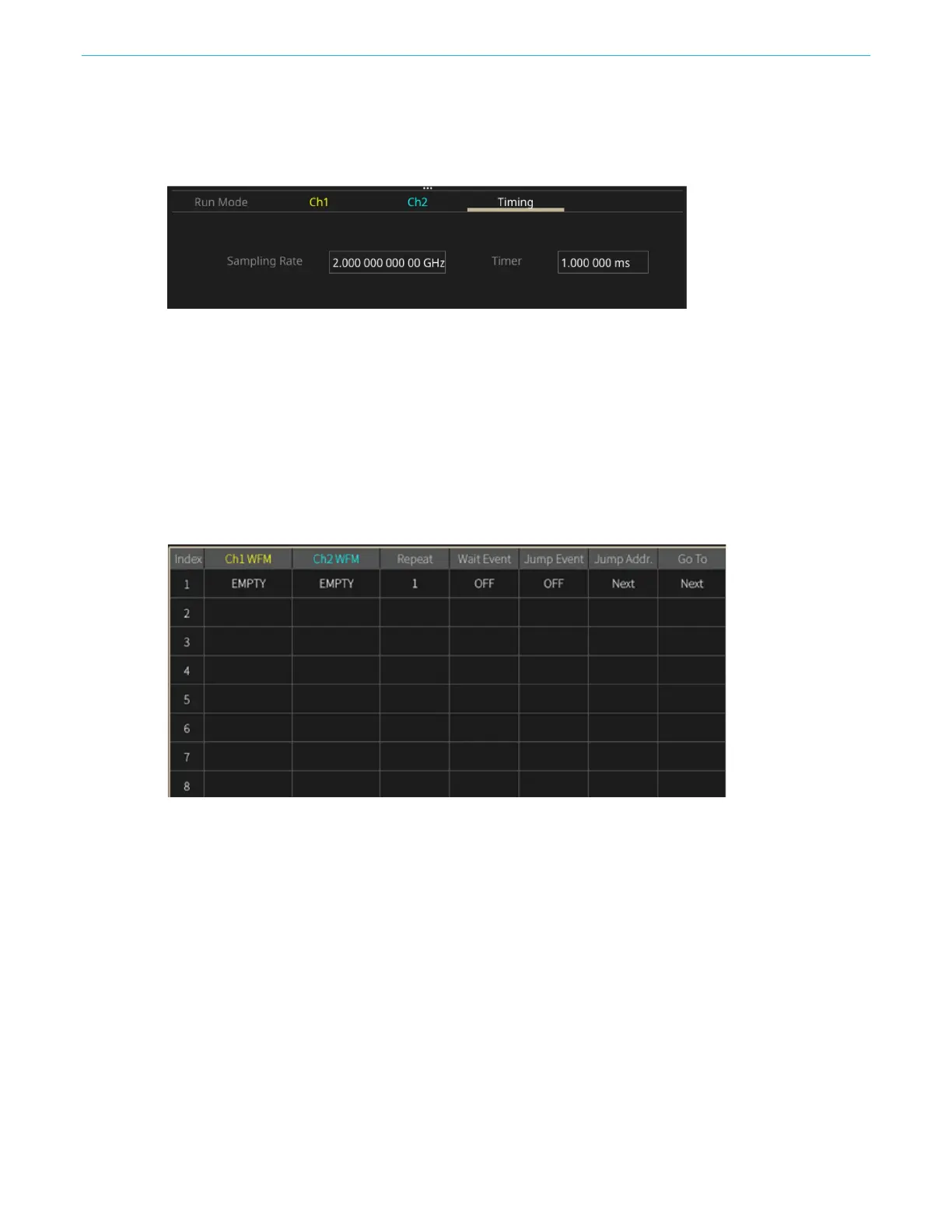

Setting bar, timing
 Sampling Rate: Set the sampling rate.
 Timer: Set the timing for the signal generating function.
Figure 84: Timing
Setting bar, advanced table
 Repeat: Repeats the signal-generation function until a stop instruction.
 Wait Event: An event that must occur before the waveform is generated.
 Jump Event: Triggers the instrument to go to a different step.
 Jump Addr: Sets the jump destination for a jump event.
 Go to: Moves to a specific step in the sequence after generating the waveform specified in a
sequence element.
Figure 85: Advanced table
