Tektronix AFG31000 Series User Manual

Application examples
AFG31000 Series Arbitrary Function Generator User's Manual 167
3. Set the deviation to 4.8096 kHz (this will make the carrier waveform null).
4. Confirm the carrier waveform is null on the spectrum analyzer.

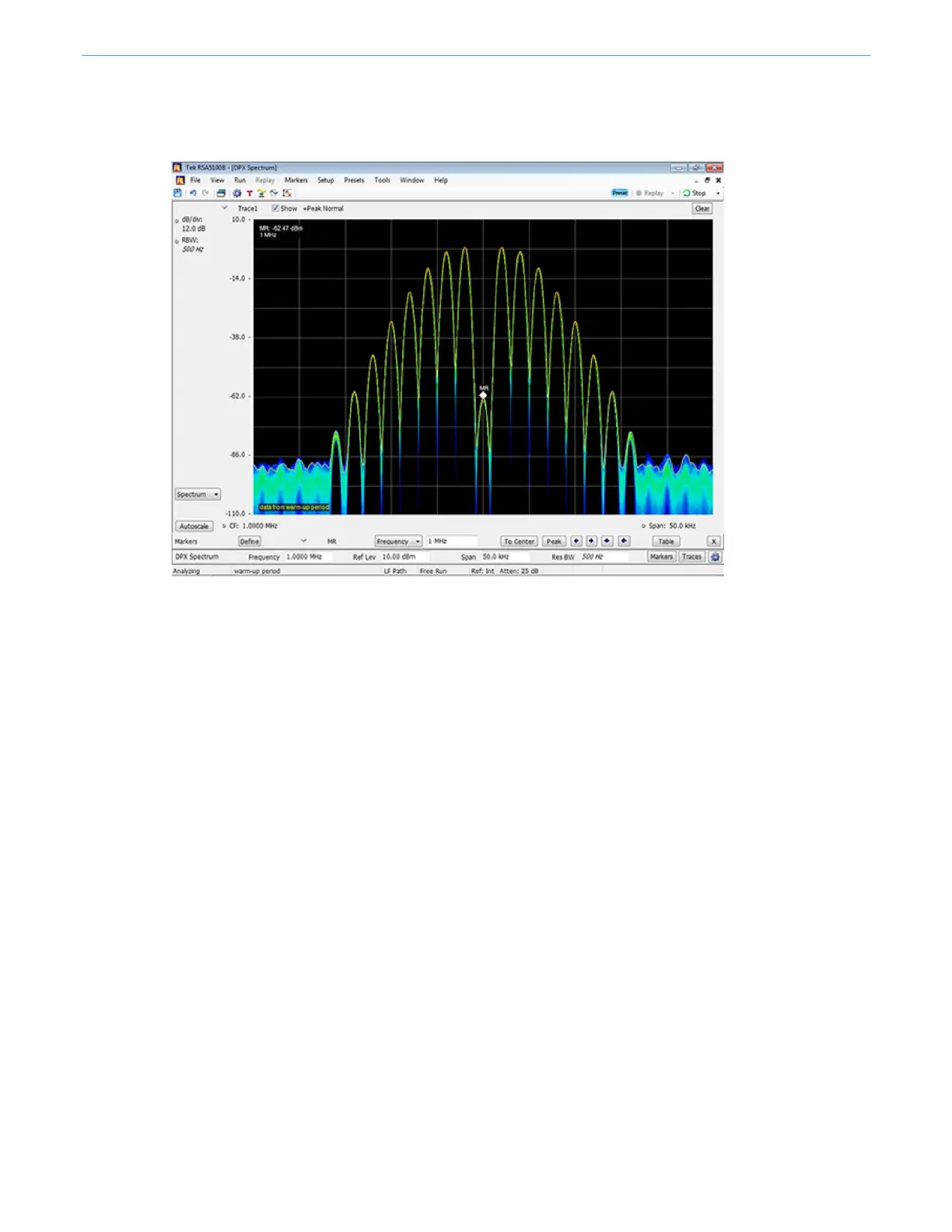

Figure 171: Carrier waveform null
