Tektronix AFG31000 Series User Manual

Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 113
8. Select the On buttons on the front panel to turn CH1 and CH2 output on, then select Run to start
the sequence.

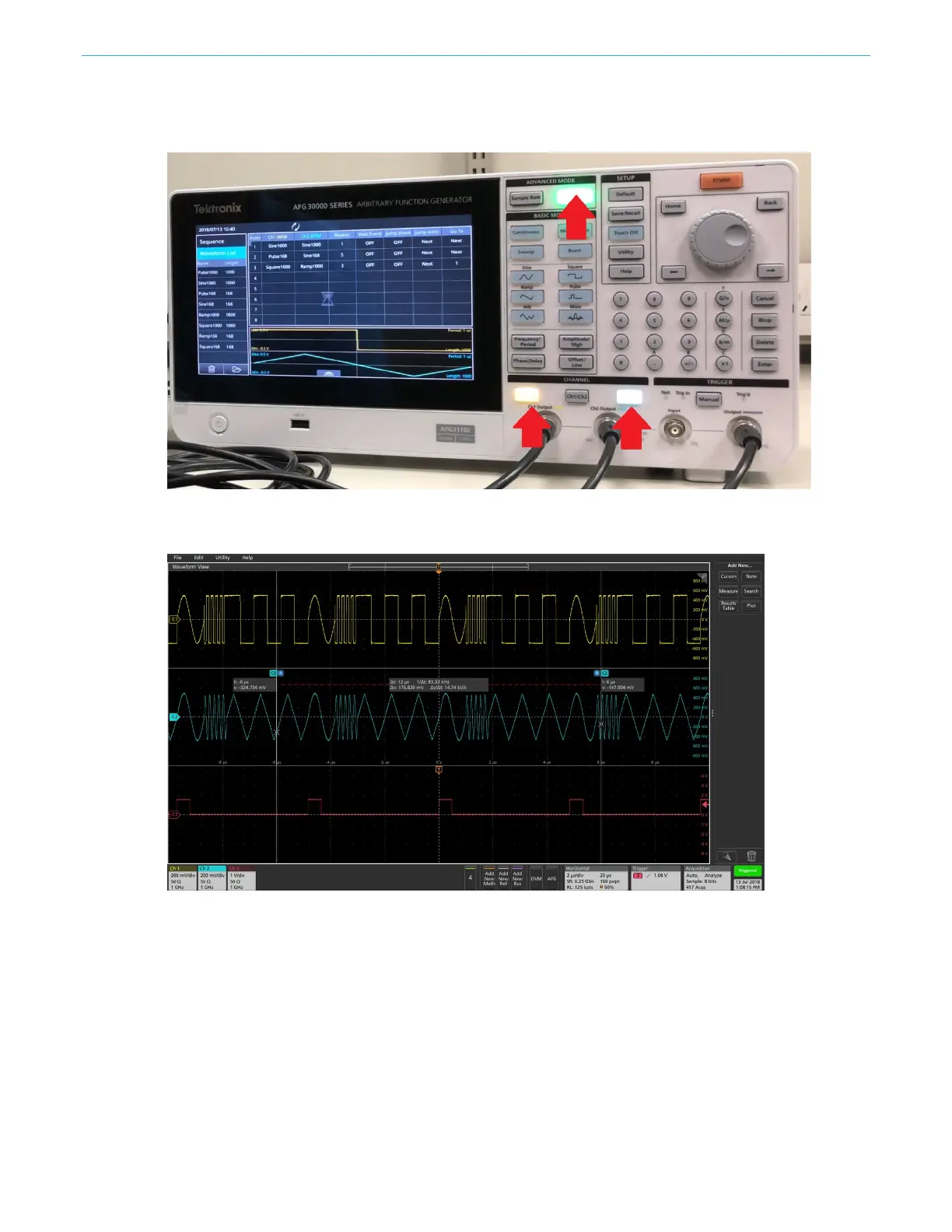

Figure 102: Indicators showing set channels and running sequence
9. Adjust the scope to observe the output waveforms on CH1 and CH2. CH3 is the trigger source.
Figure 103: Adjust the scope
