ArbExpress information
AFG31000 Series Arbitrary Function Generator User's Manual 155
1. In the Standard Waveform dialog box, create any of the standard waveforms that are available.
2. Use Settings to select a waveform and instrument type.
3. Use Vertical to set the waveform vertical settings.
4. Use Horizontal to set the waveform horizontal settings.
5. Select Preview to view the waveform.

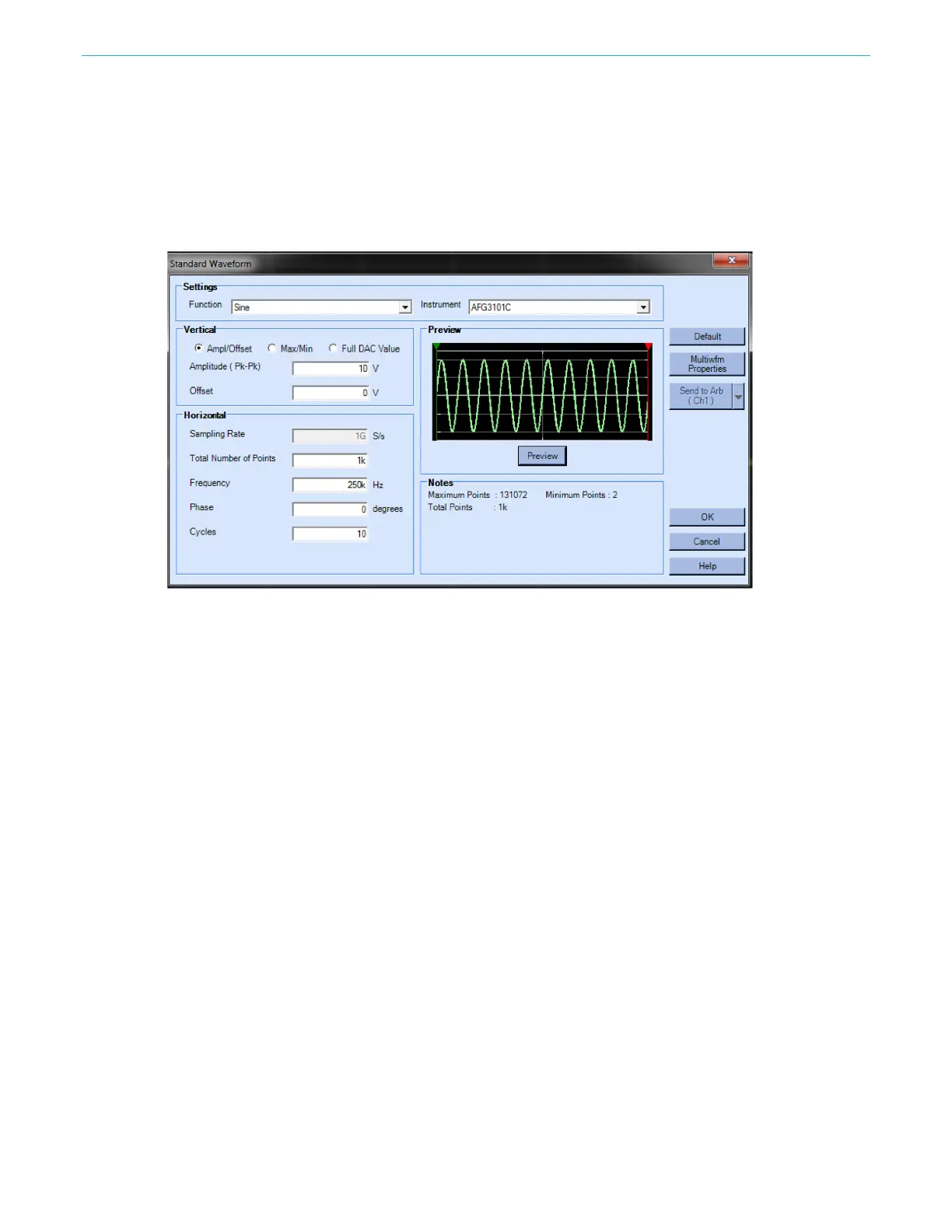

Figure 157: ArbExpress standard waveform
