The following figure shows a waveform after adding noise.
NOTE. To avoid noise overflow, the amplitude of the output signal is automatically halved.

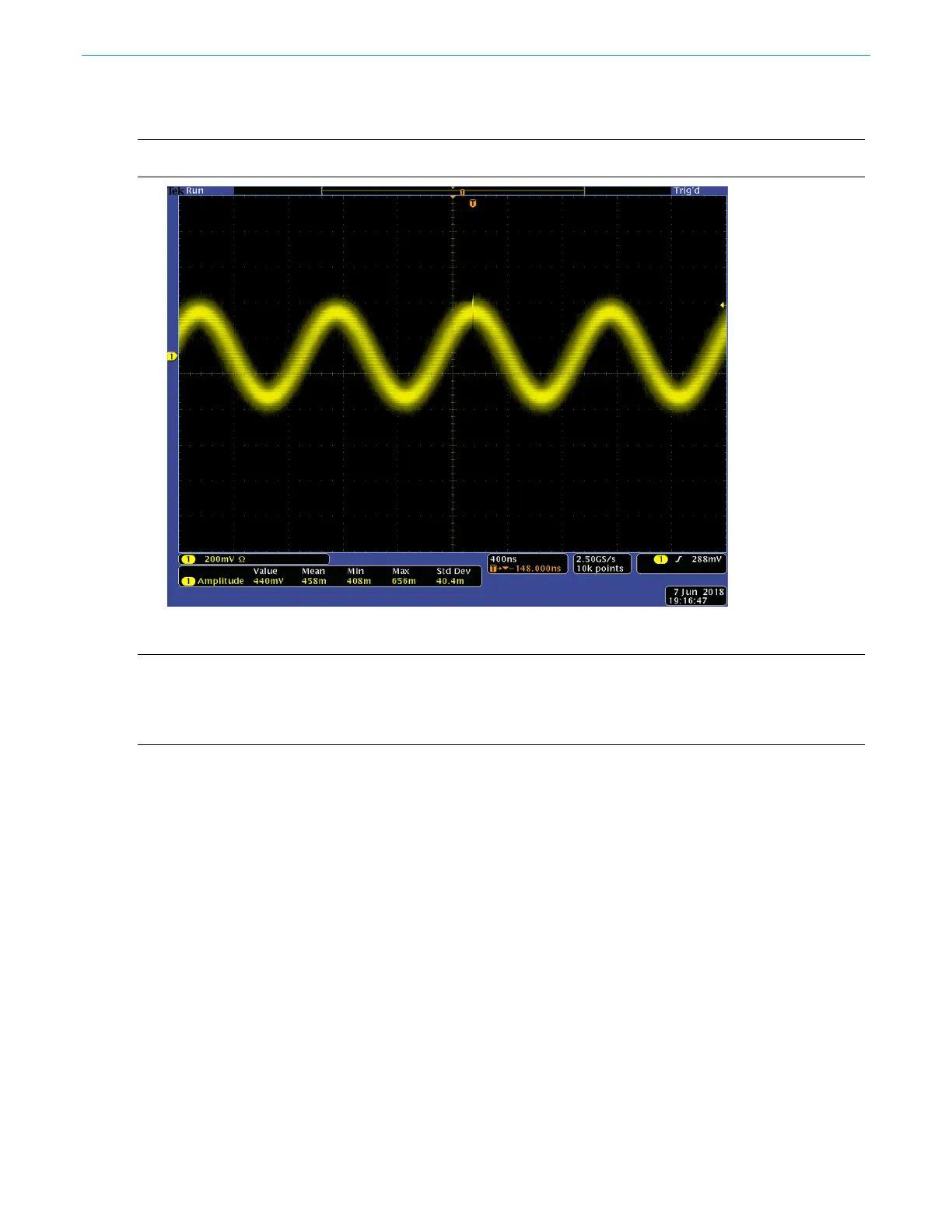

Figure 49: Waveform after noise is added
NOTE. An internal noise generator (digital) is used to add noise. CH1 and CH2 noise signals are non
correlating. The output status is changed from Output Off to Noise when you press the front-panel
Channel Output button to enable the output. When the Noise option is set to On, the amplitude of the
output signal is reduced to 50%.
