Tektronix AFG31000 Series User Manual

Function introduction
78 AFG31000 Series Arbitrary Function Generator User's Manual
Synchronize multiple instruments
The AFG31000 Series Arbitrary Function Generator provides the ability to synchronize multiple
arbitrary function generators.
In many applications, more than two channels of waveforms are needed to stimulate the DUT’s. For
example, to simulate the voltage of a 3-phase power line system, three channels are needed. If
current on the lines are also needed at the same time, then there will be six channels in total.
The instrument can synchronize multiple instruments to provide this functionality.
NOTE. To synchronize two instruments you must stop running output signals.
To synchronize multiple AFGs:
1. Select Basic.
2. Swipe the arrow at the bottom up and select Multi-unit sync tab.

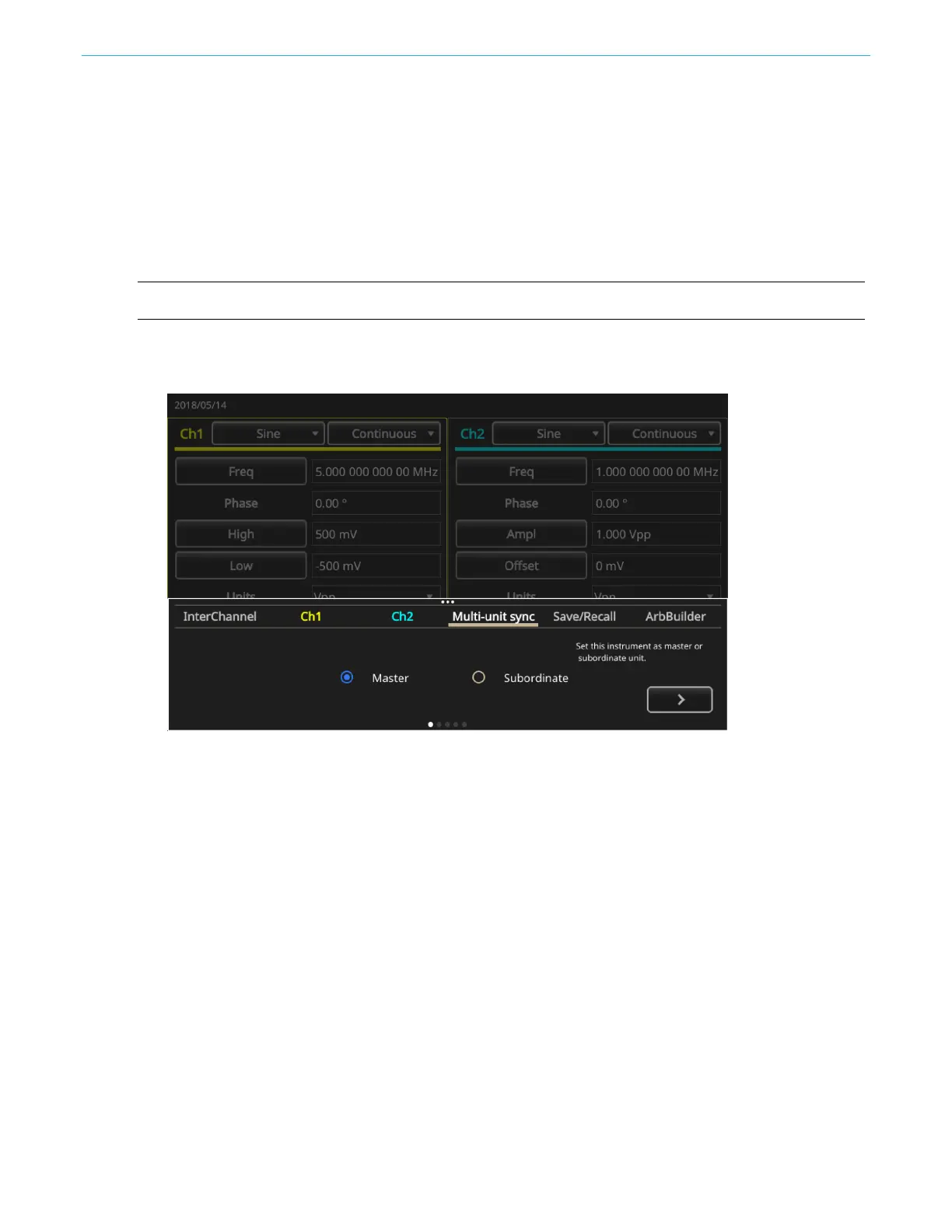

Figure 54: MultiSync instruments tab 1
3. Select Master or Subordinate.
4. Press the right arrow to go to next page
5. Connect Trigger Output (master) to Trigger Input (subordinate) with a BNC cable according to the
following figure. Press the right arrow to go to the next page.
