Tektronix AFG31000 Series User Manual

Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 73
Add noise
To add the internal noise signal to a waveform, use the swipe area on the bottom of the touchscreen.
To add noise:
1. Select Basic.
2. Select Sine wave on the touchscreen.
3. Select Continuous mode on the CH1 drop-down menu on the touchscreen.
4. On the touchscreen, swipe the arrow at the bottom up.
5. On the CH1 tab, select the On option for Noise.
6. Select the value next to Noise to adjust the noise level.

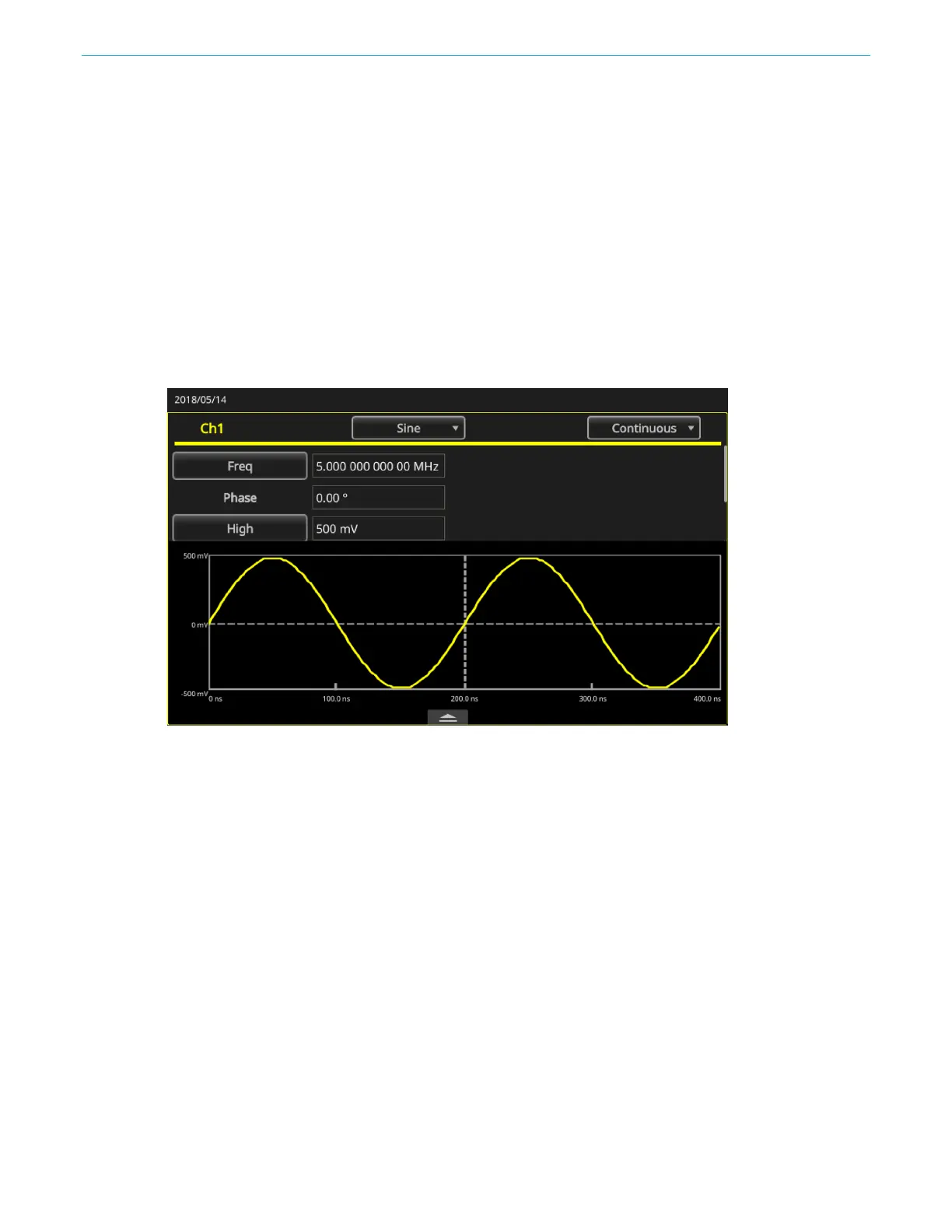

The following figure shows a waveform before adding noise.
Figure 48: No noise
