Function introduction
126 AFG31000 Series Arbitrary Function Generator User's Manual
NOTE. Disconnect all cables from the instrument when you perform diagnostics or calibration (do not
remove the power cord).
1. Select the Utility icon on the touchscreen.
2. Select Diagnostics/Calibration in the menu.
3. To perform Diagnostics, select Run.

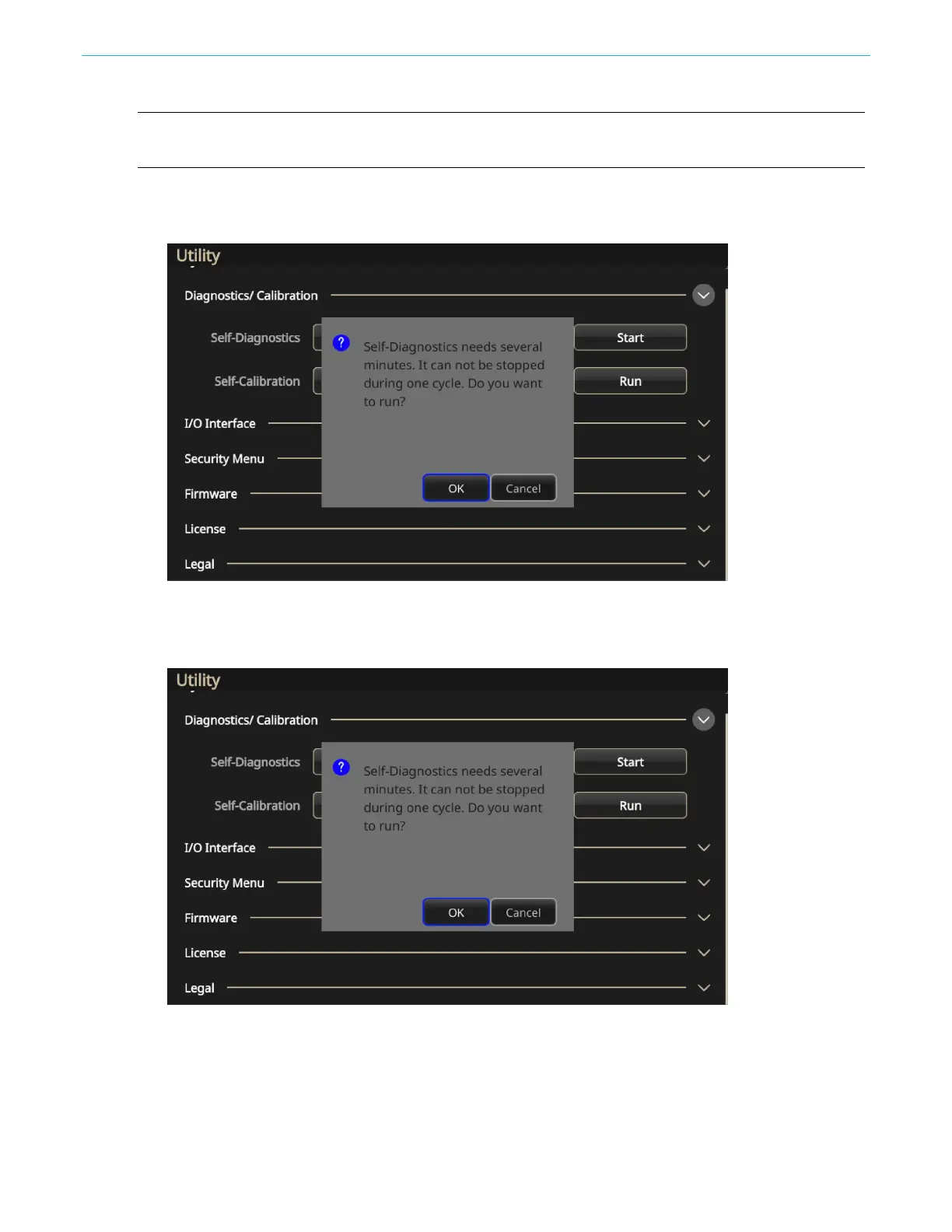

Figure 119: Run system diagnostics
4. Wait until the test is completed (the diagnostics test takes eight minutes to complete).
5. To perform Calibration, select Run to perform calibration or Cancel to exit the function.
Figure 120: Run self calibration
6. Wait until the test is completed (the calibration test takes eight minutes to complete).
Once calibration or diagnostics is executed, a dialog box displays the results including any errors.
