Function introduction
AFG31000 Series Arbitrary Function Generator User's Manual 145
Edit a waveform with ArbBuilder
1. Open a waveform. Please see Open a Waveform with ArbBuilder.

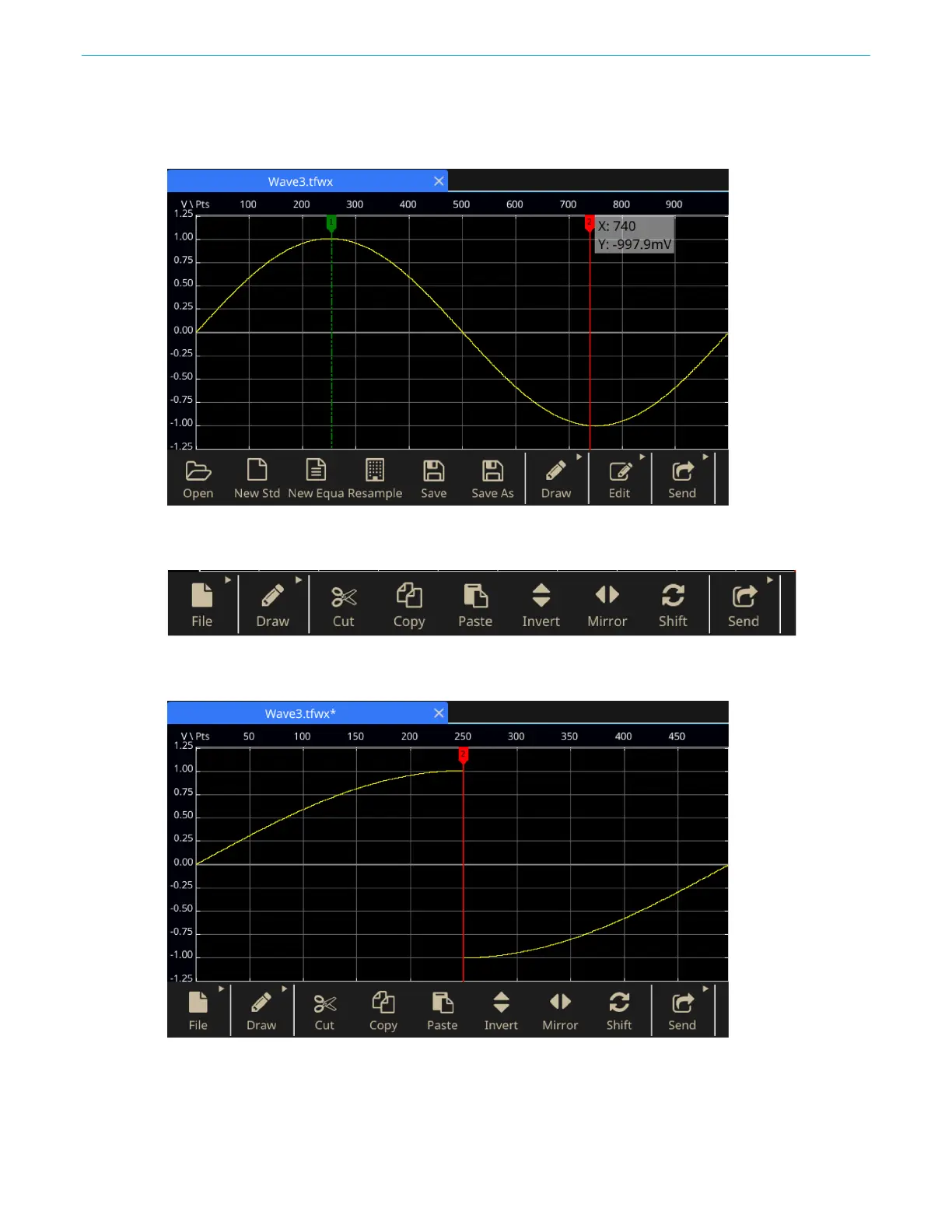

Figure 139: ArbBuilder open a waveform
2. Click ArbBuilder->Edit. You will see the edit toolbar.
Figure 140: ArbBuilder edit toolbar
3. Cut. It is used to cut a piece of waveform data between the two cursors.
Figure 141: ArbBuilder highlight waveform data to cut
