Tektronix AFG31000 Series User Manual

Function introduction
112 AFG31000 Series Arbitrary Function Generator User's Manual

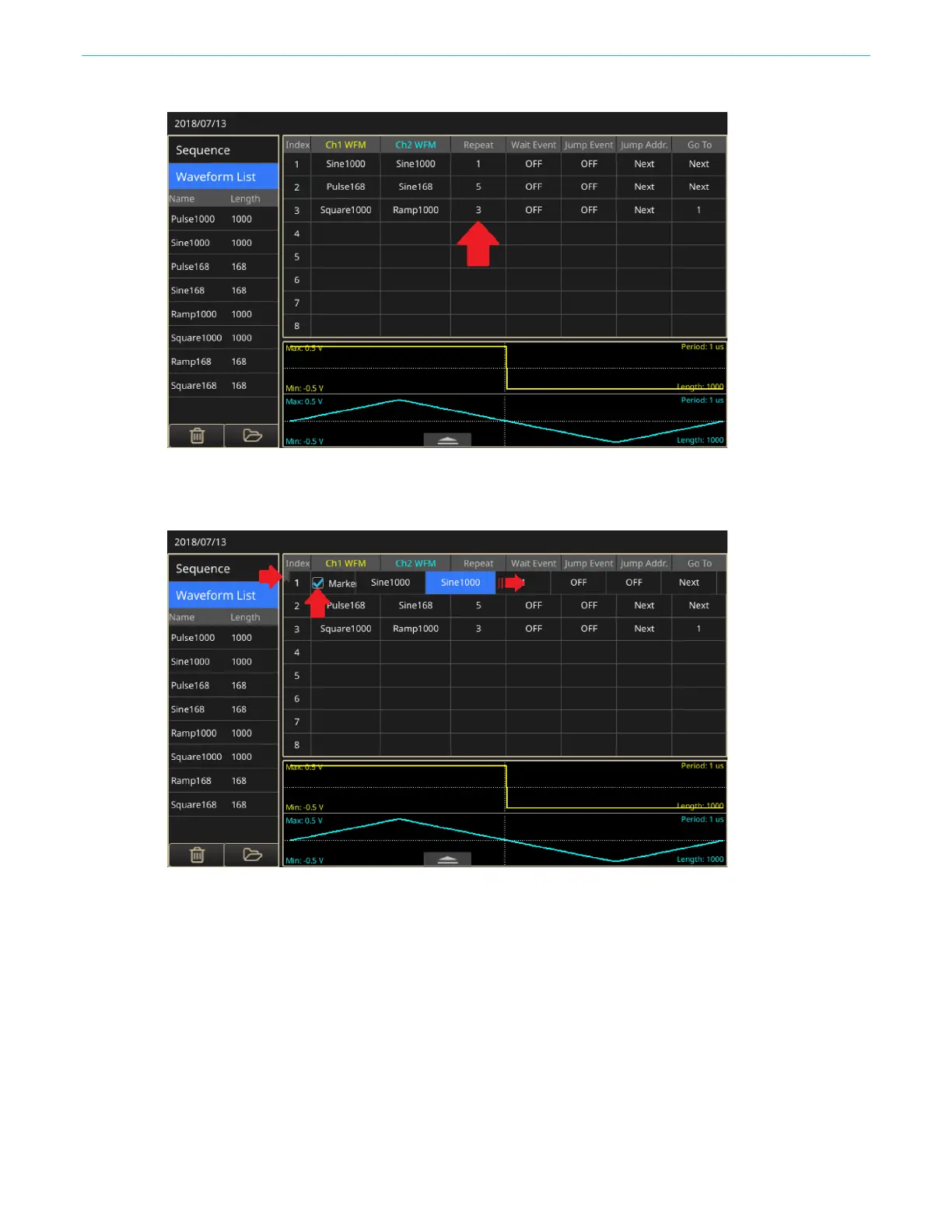

Figure 100: Set repeat function
7. Swipe entry one from left to right to reveal the selection box; select the box. This generates a
50% duty cycle pulse from the trigger out port on the instrument when that waveform is run.
Figure 101: Swipe left-to-right to select the box
