Tektronix AFG31000 Series User Manual

Function introduction
64 AFG31000 Series Arbitrary Function Generator User's Manual
PWM waveform
To output a PWM waveform:
1. Select Basic.
2. Select Pulse on the CH1 drop-down menu on the touchscreen.

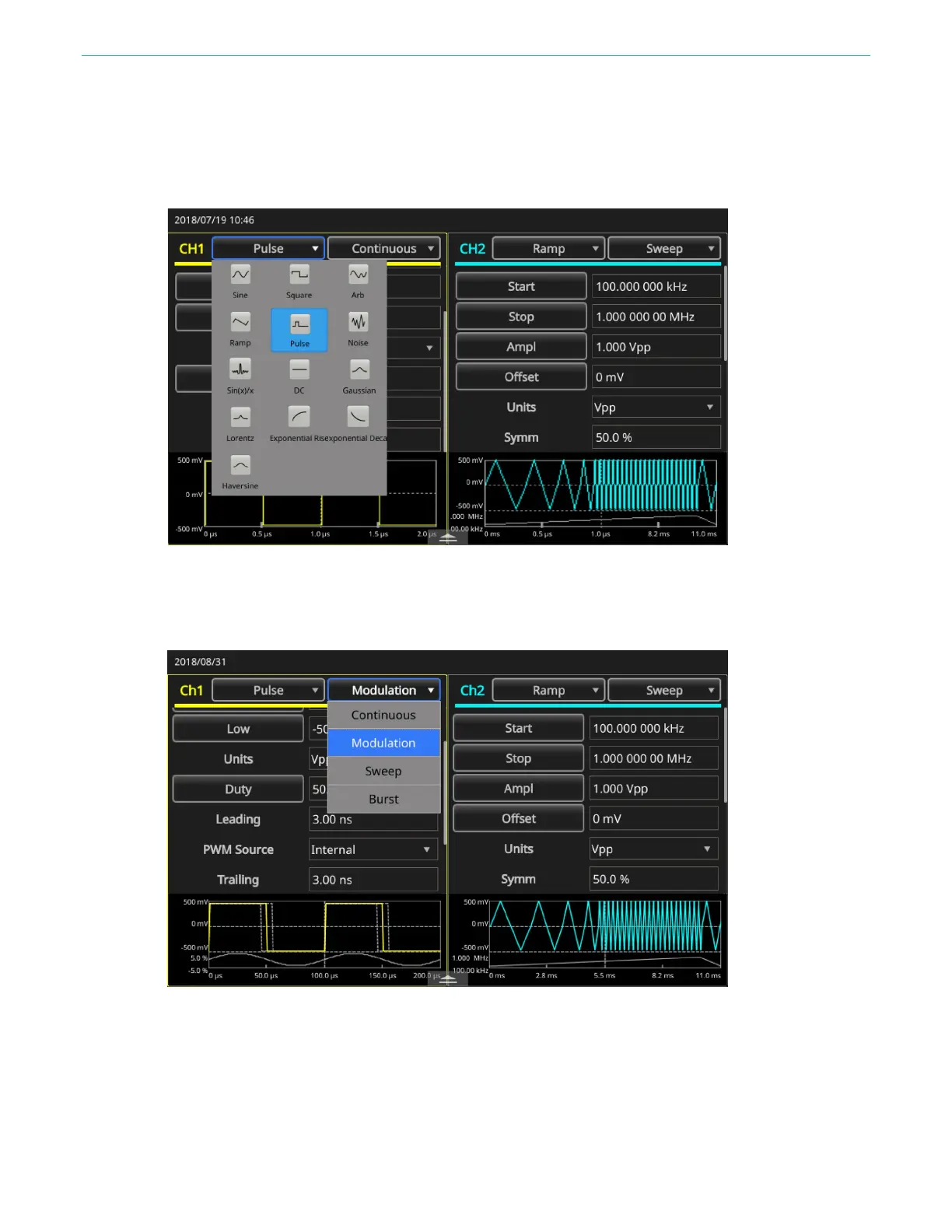

Figure 38: Select pulse
3. Select Continuous mode on the CH1 drop-down menu on the touchscreen.
4. Select Modulation.
Figure 39: Select modulation
