Application examples
AFG31000 Series Arbitrary Function Generator User's Manual 163
4. Select Sweep from Run Mode area and set the start frequency, stop frequency, and sweep time
so that the waveform is shown in the graticule.
5. You can measure the frequency characteristics of the filter by sweep time and the oscilloscope
time base.

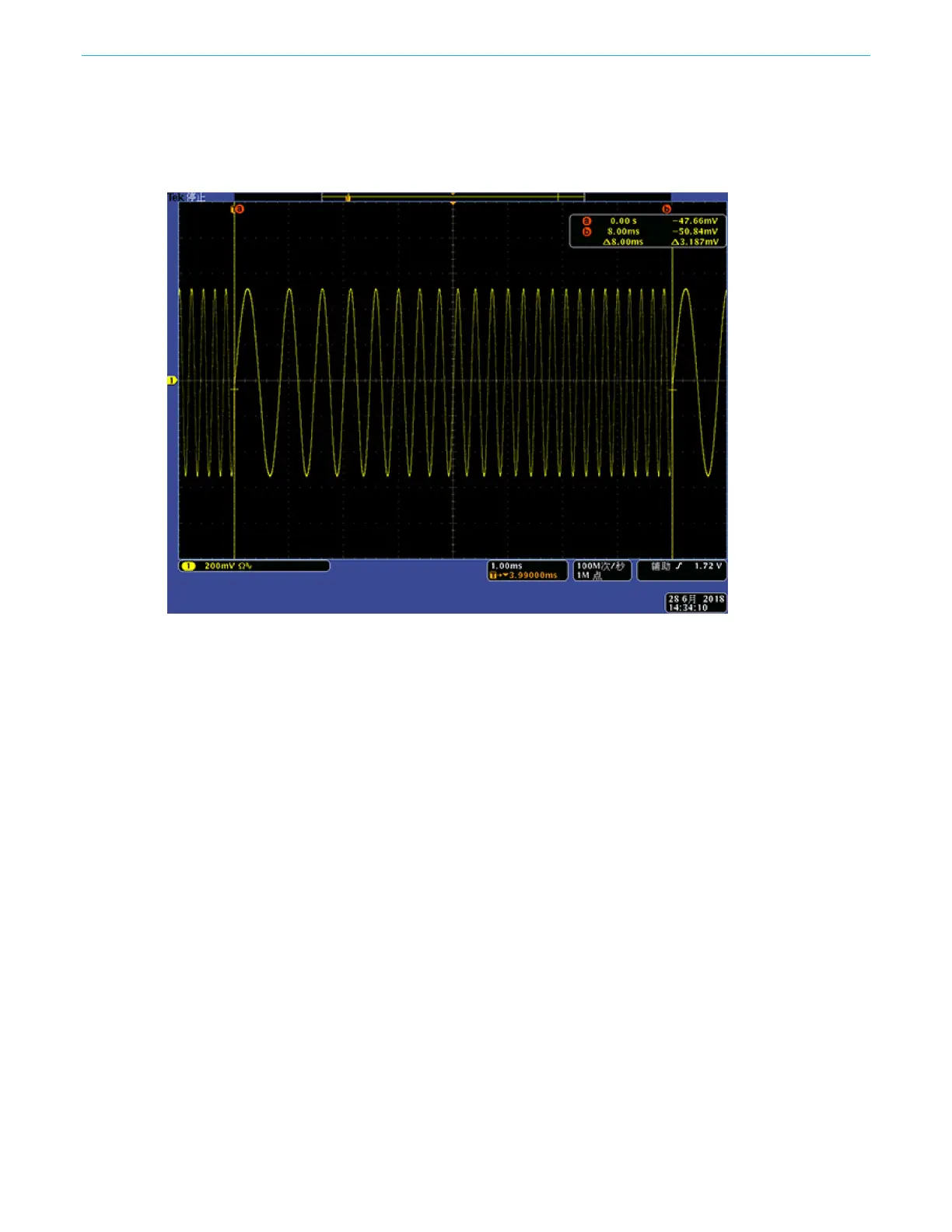

Figure 167: Measure frequency characteristics
